Air Bag Control Module
Air Bag Control Module
Airbag Control Module - C1:

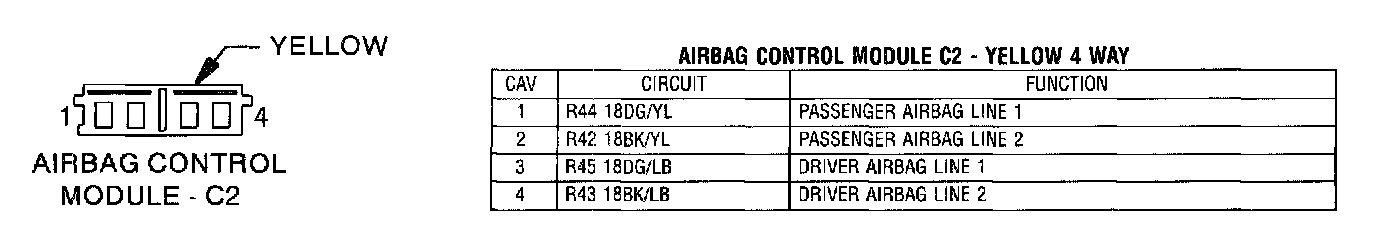

Airbag Control Module - C2:
