Home >> Chrysler >> 2000 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Diagrams

Fuel Level Sensor: Diagrams

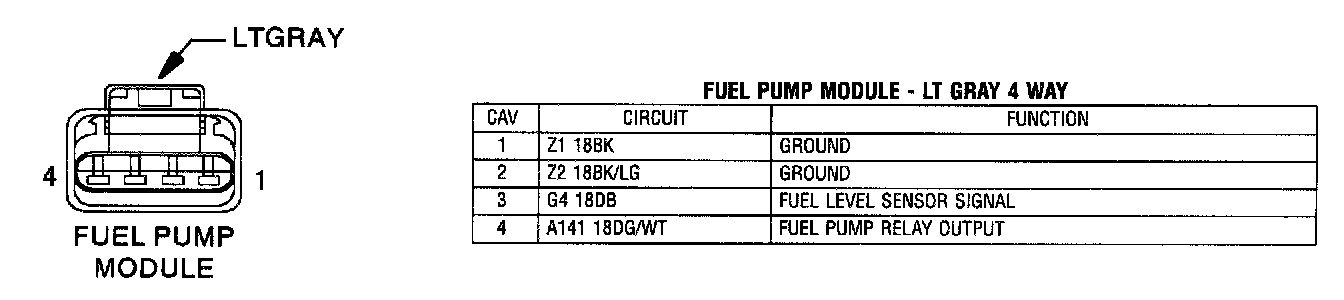

Fuel Pump Module:
