Oxygen Sensor: Diagrams

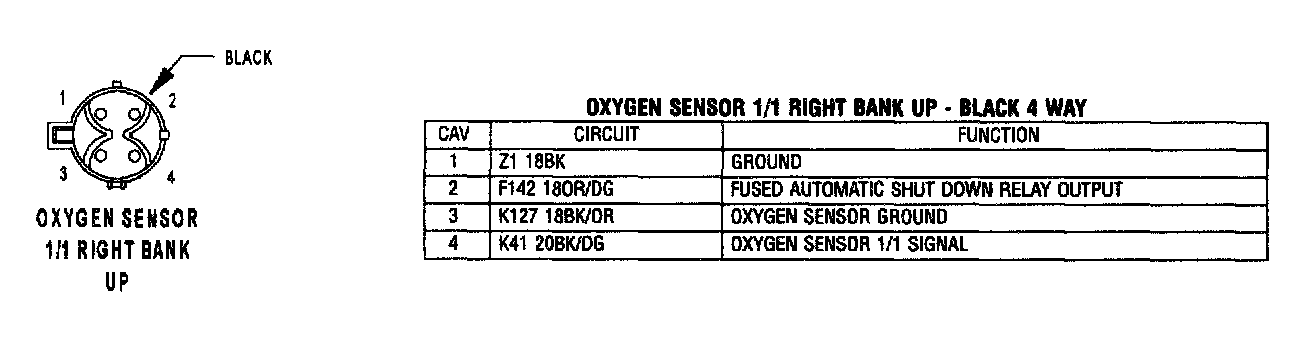

Oxygen Sensor 1/1 Right Bank Up:

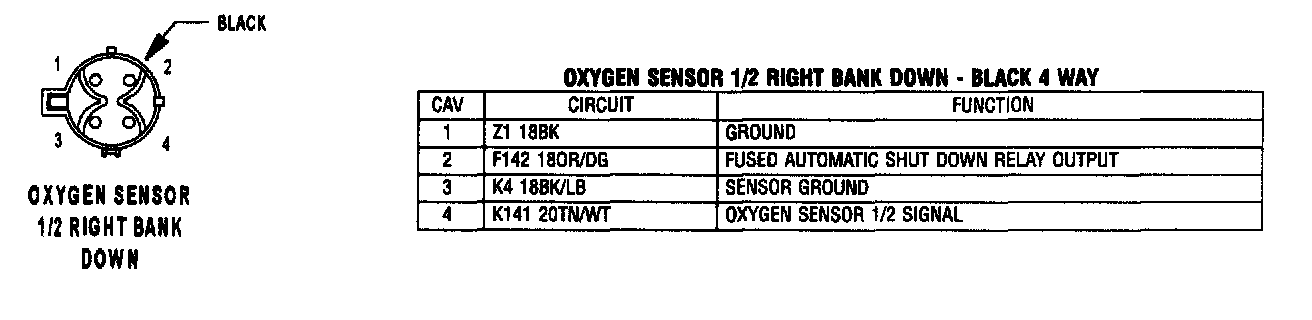

Oxygen Sensor 1/2 Right Bank Down:

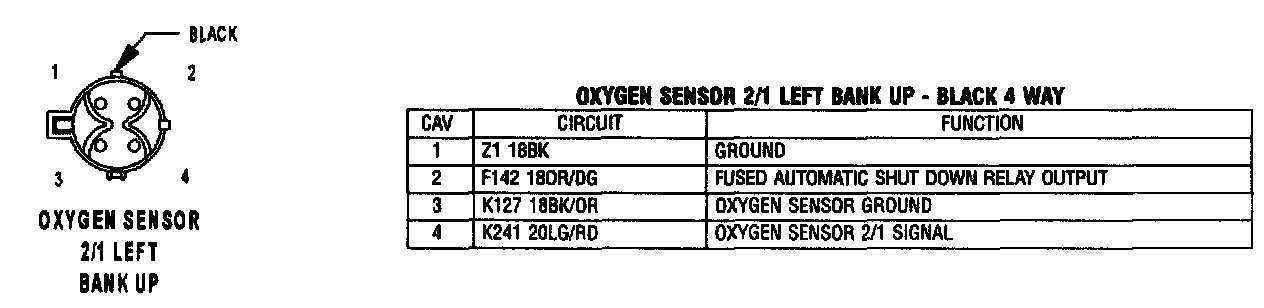

Oxygen Sensor 2/1 Left Bank Up:

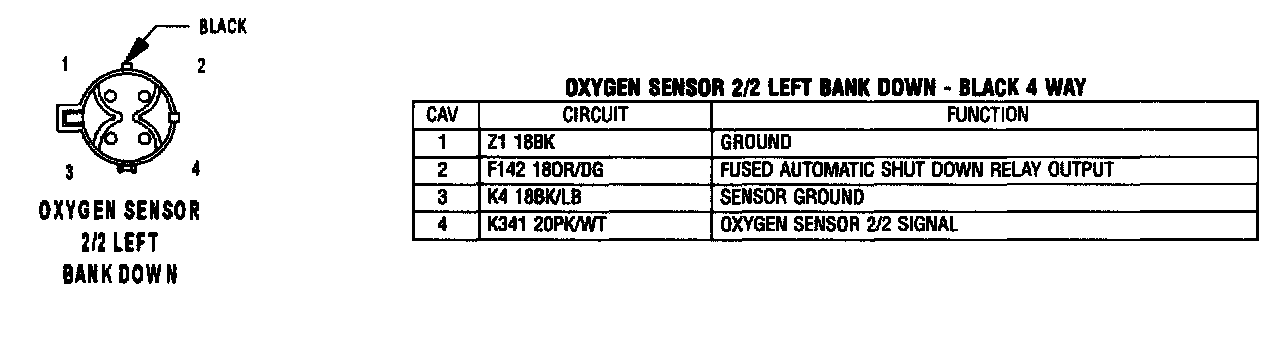

Oxygen Sensor 2/2 Left Bank Down:
