Main Relay (Computer/Fuel System): Locations

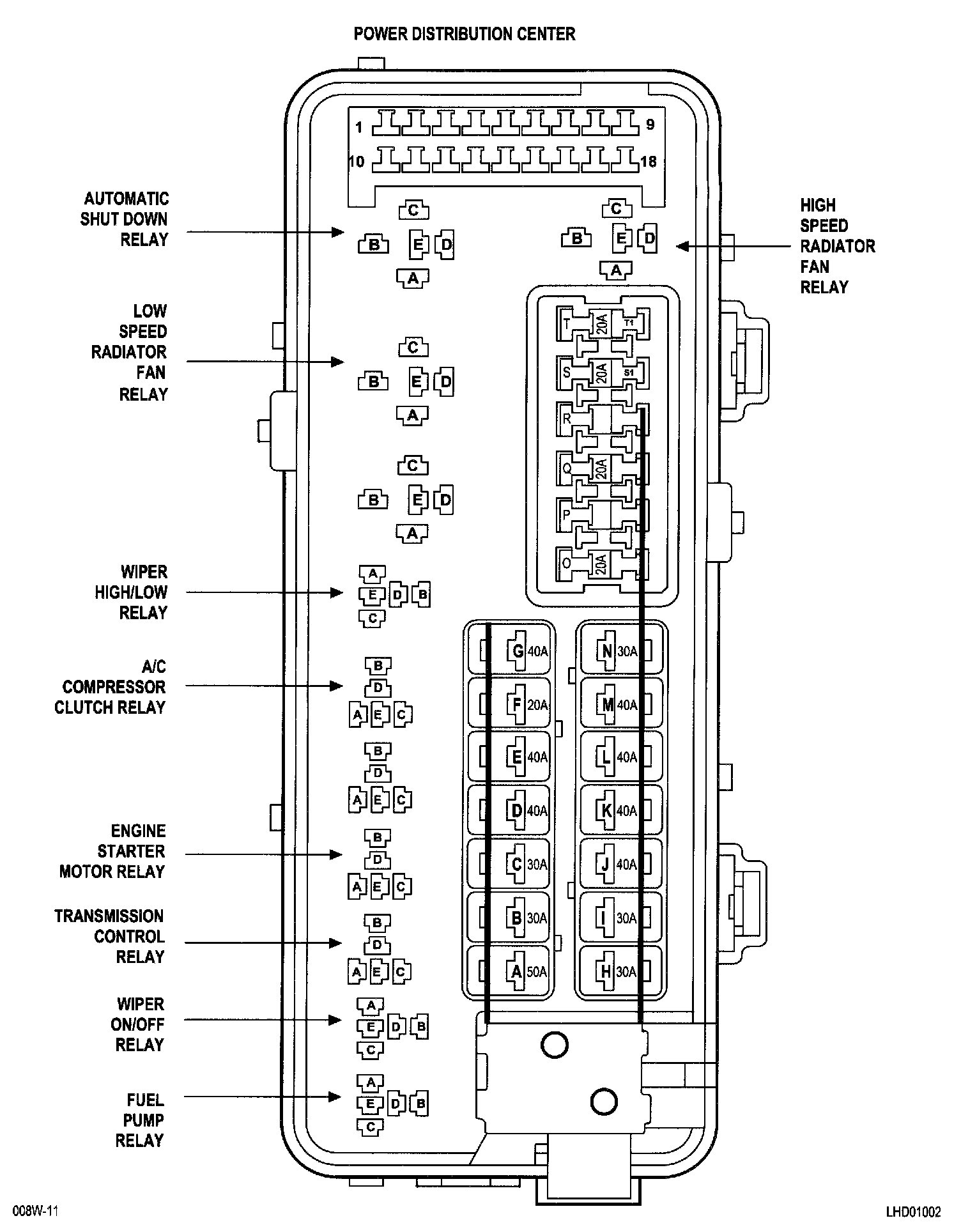

Power Distribution Center (PDC):
8w-10-2:

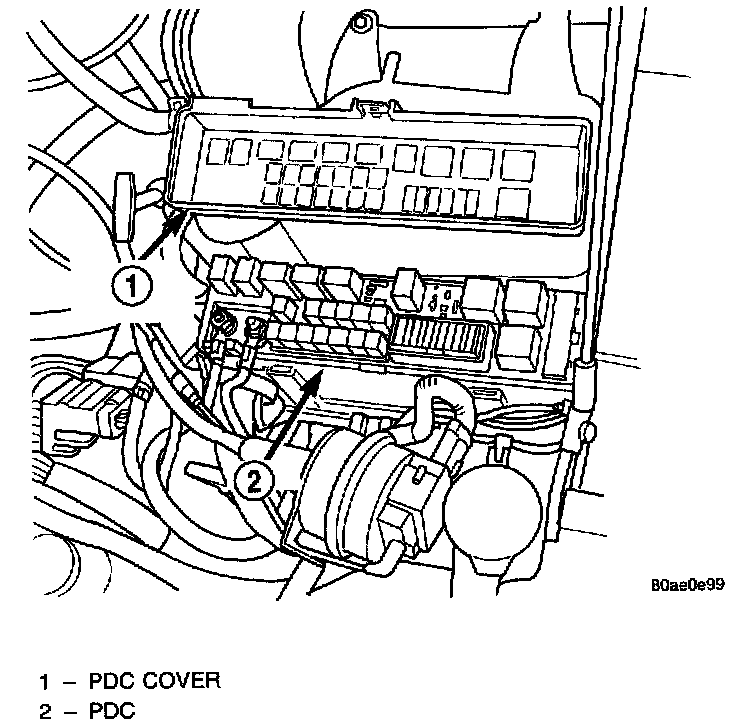

The ASD relay is located in the Power Distribution Center (PDC).
