Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Junction Block

Junction Block

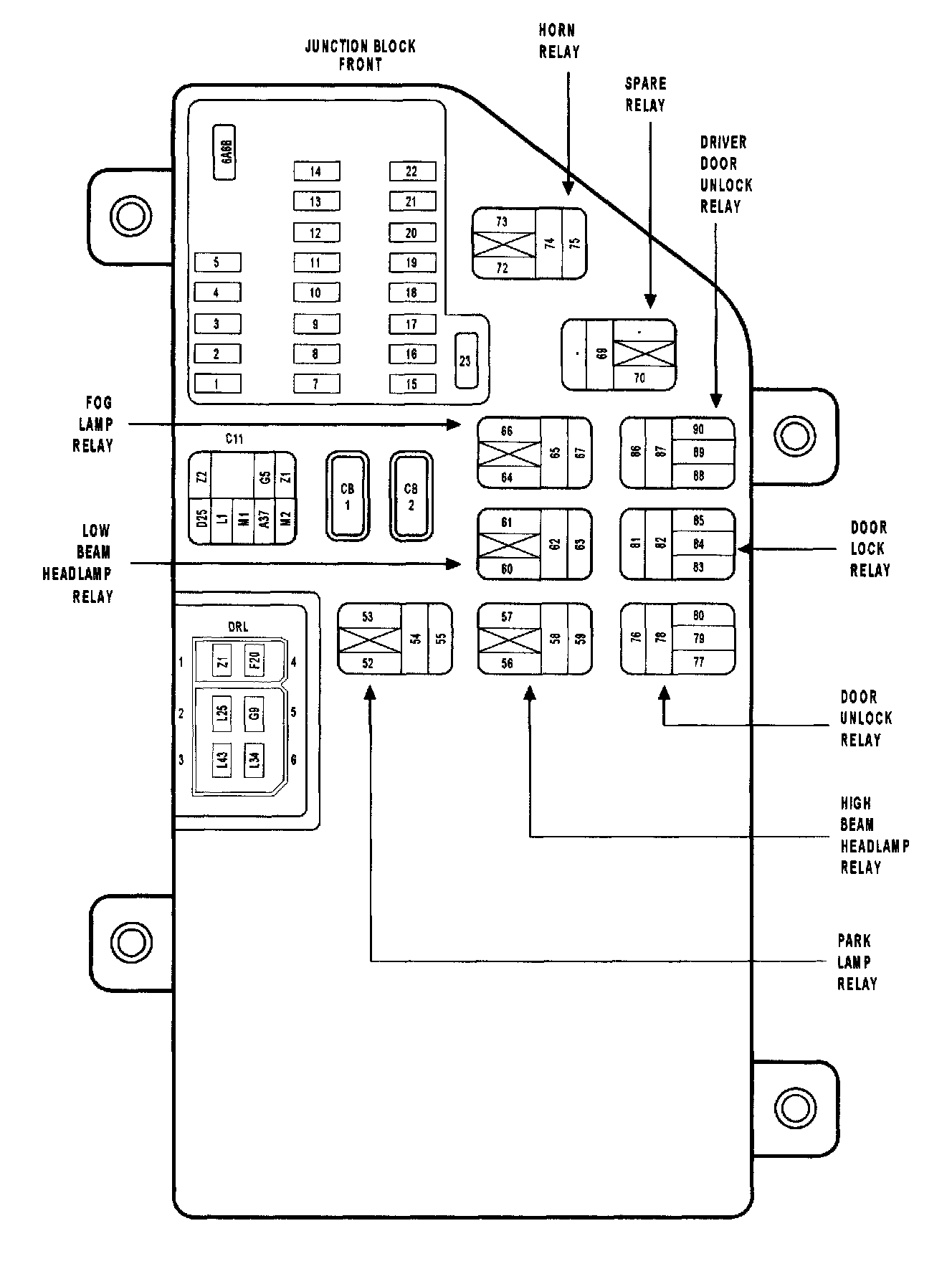

Junction Block (Front):
