Variable Induction Control Valve
Variable Induction Control Valve

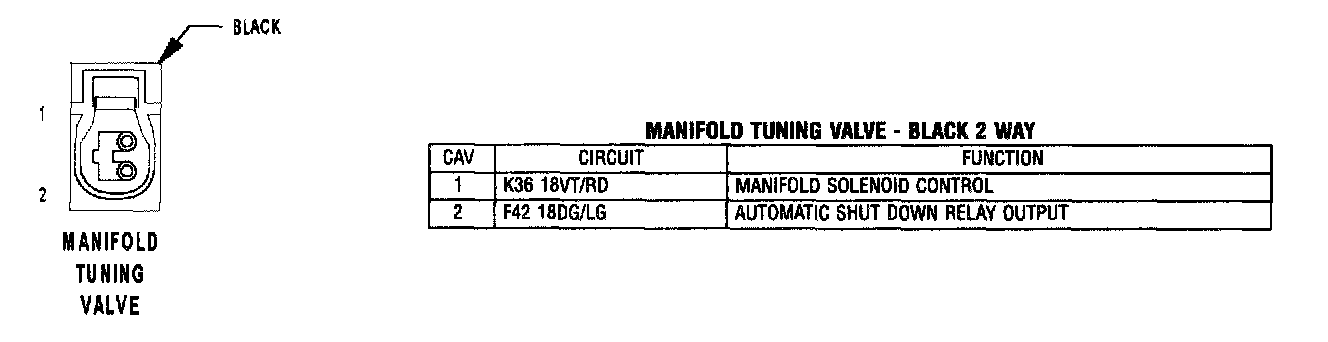

Manifold Tuning Valve:

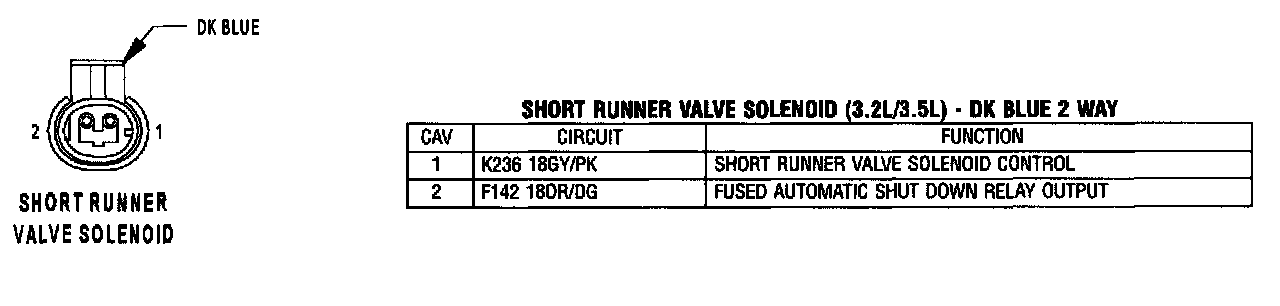

Short Runner Valve Solenoid:
