Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

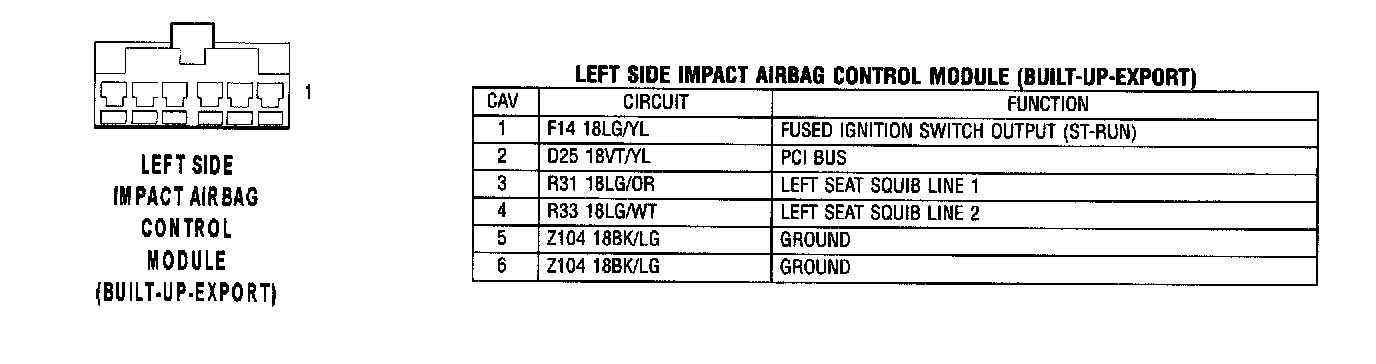

Left Side Impact Airbag Control Module (Built-Up-Export):

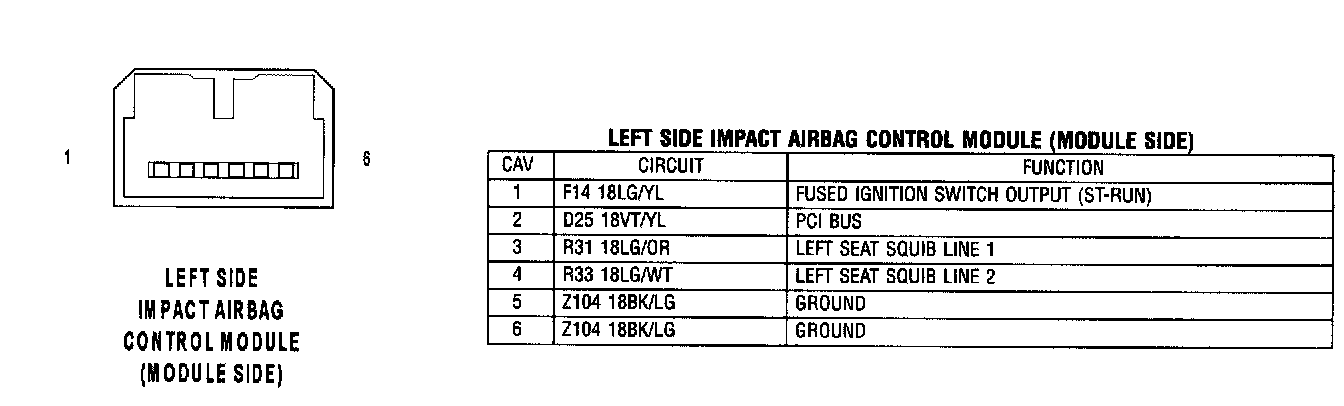

Left Side Impact Airbag Control Module (Module Side):

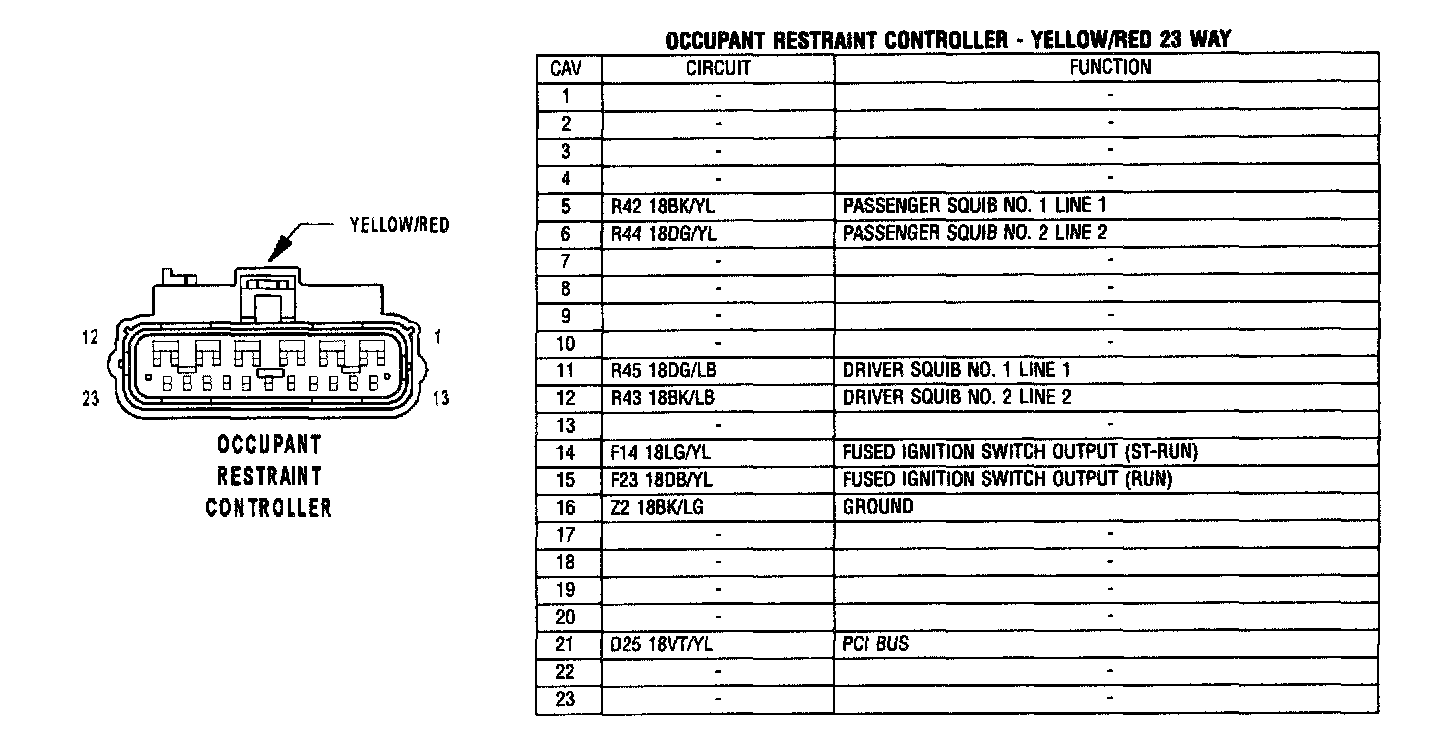

Occupant Restraint Controller:

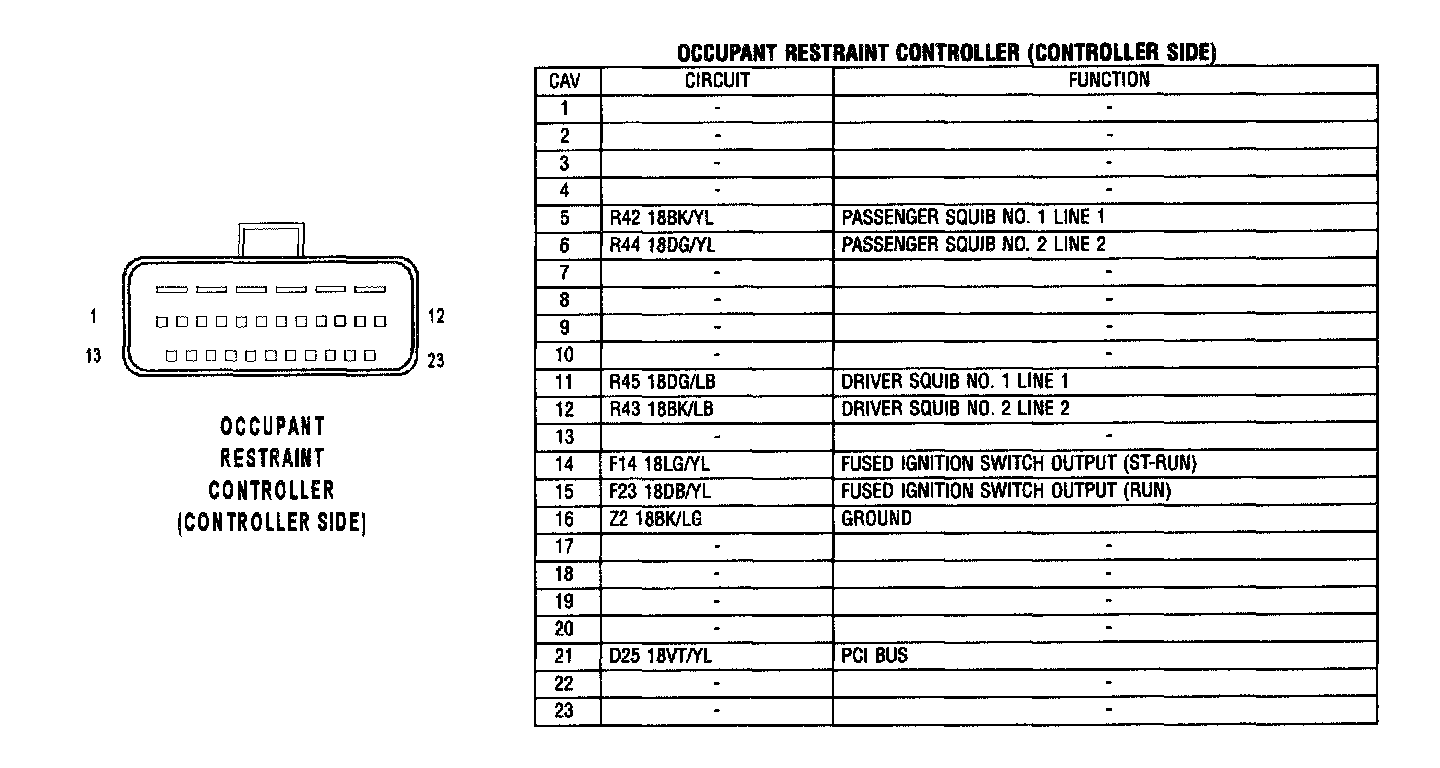

Occupant Restraint Controller (Controller Side):

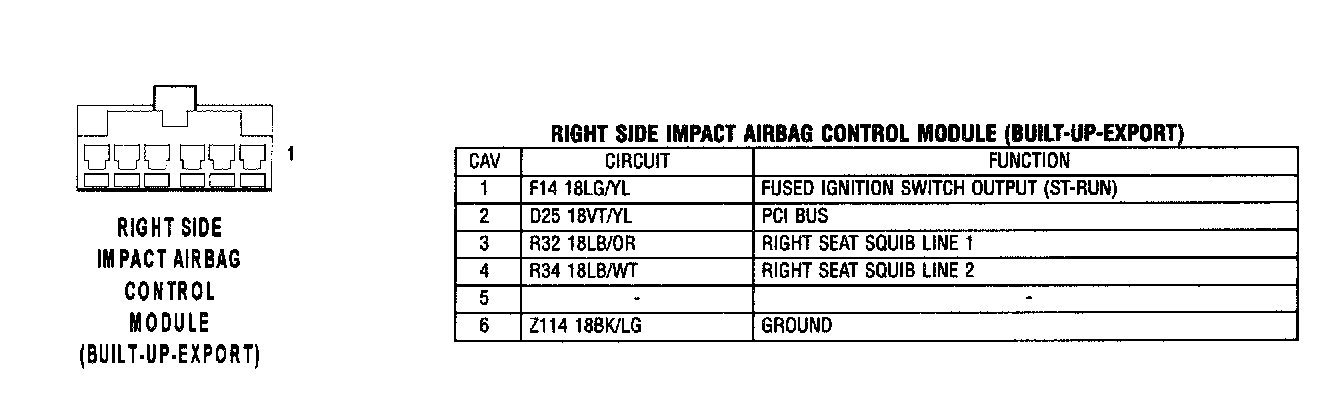

Right Side Impact Airbag Control Module (Built-Up-Export):

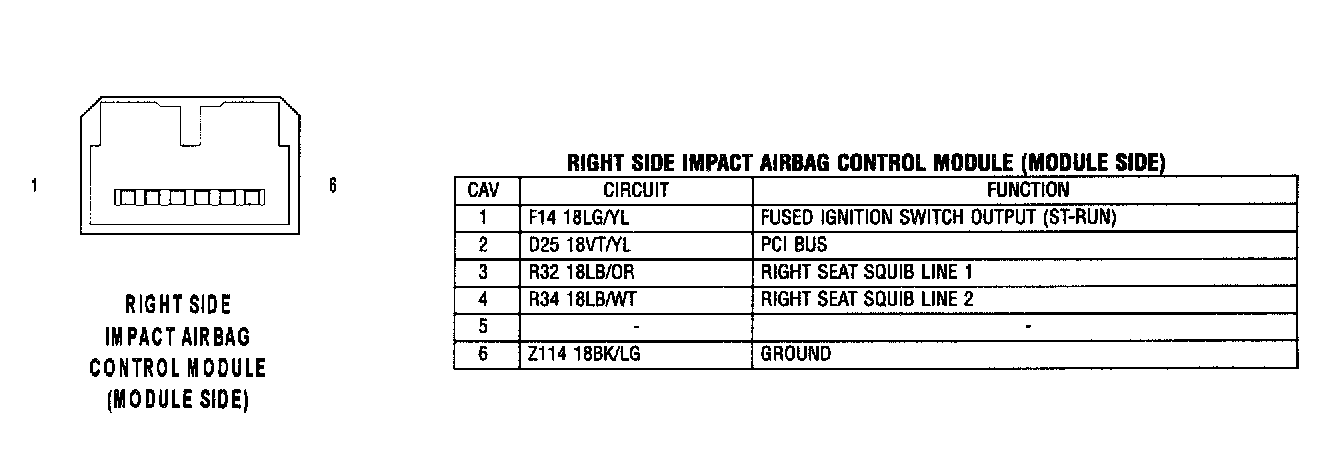

Right Side Impact Airbag Control Module (Module Side):
