Cylinder Head

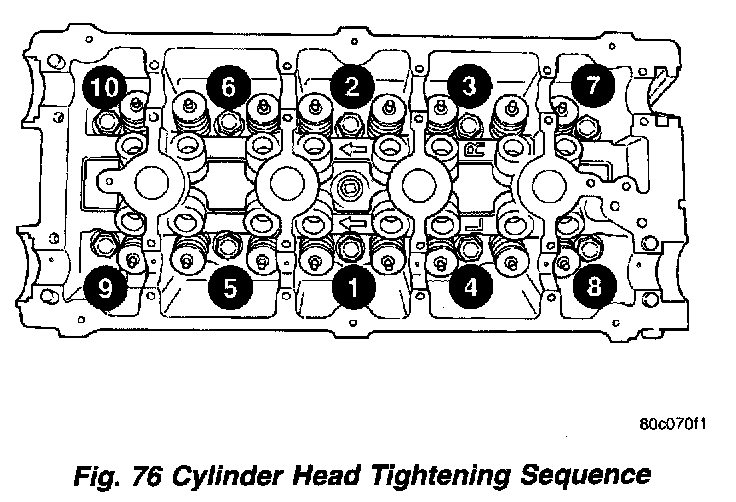

Tighten the cylinder head bolts in the sequence shown. Using the 4 step torque turn method, tighten according to the following values:
- Step 1: All to 34 Nm (25 ft. lbs.)
- Step 2: All to 68 Nm (50 ft. lbs.)
- Step 3: All to 68 Nm (50 ft. lbs.)
- Step 4: Turn an additional 1/4 Turn. Do not use a torque wrench for this step.
