Fuel Level Sensor: Locations

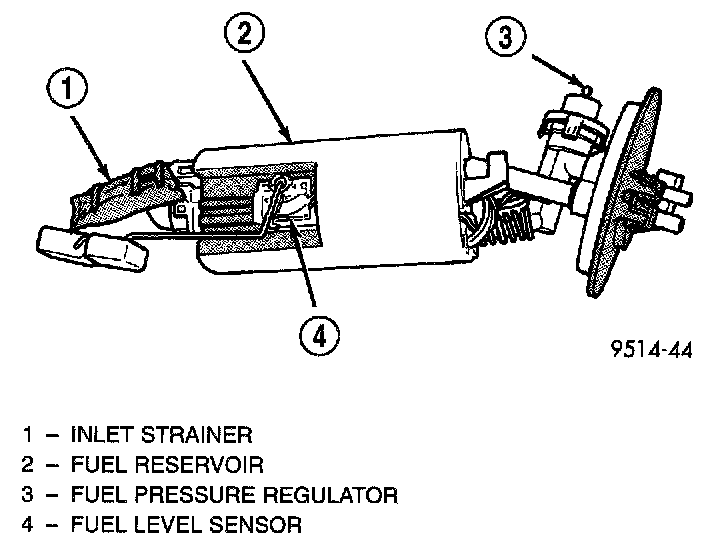

Fig. 1 Fuel Pump Module:
The fuel level sensor (fuel gauge sending unit) is attached to the side of the fuel pump module. The level sensor consists of a float, an arm, and a variable resistor.
The fuel level sensor (fuel gauge sending unit) is attached to the side of the fuel pump module. The level sensor consists of a float, an arm, and a variable resistor.
