Chrysler
>>
2000
>>
Cirrus L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
Power Distribution Module: Locations

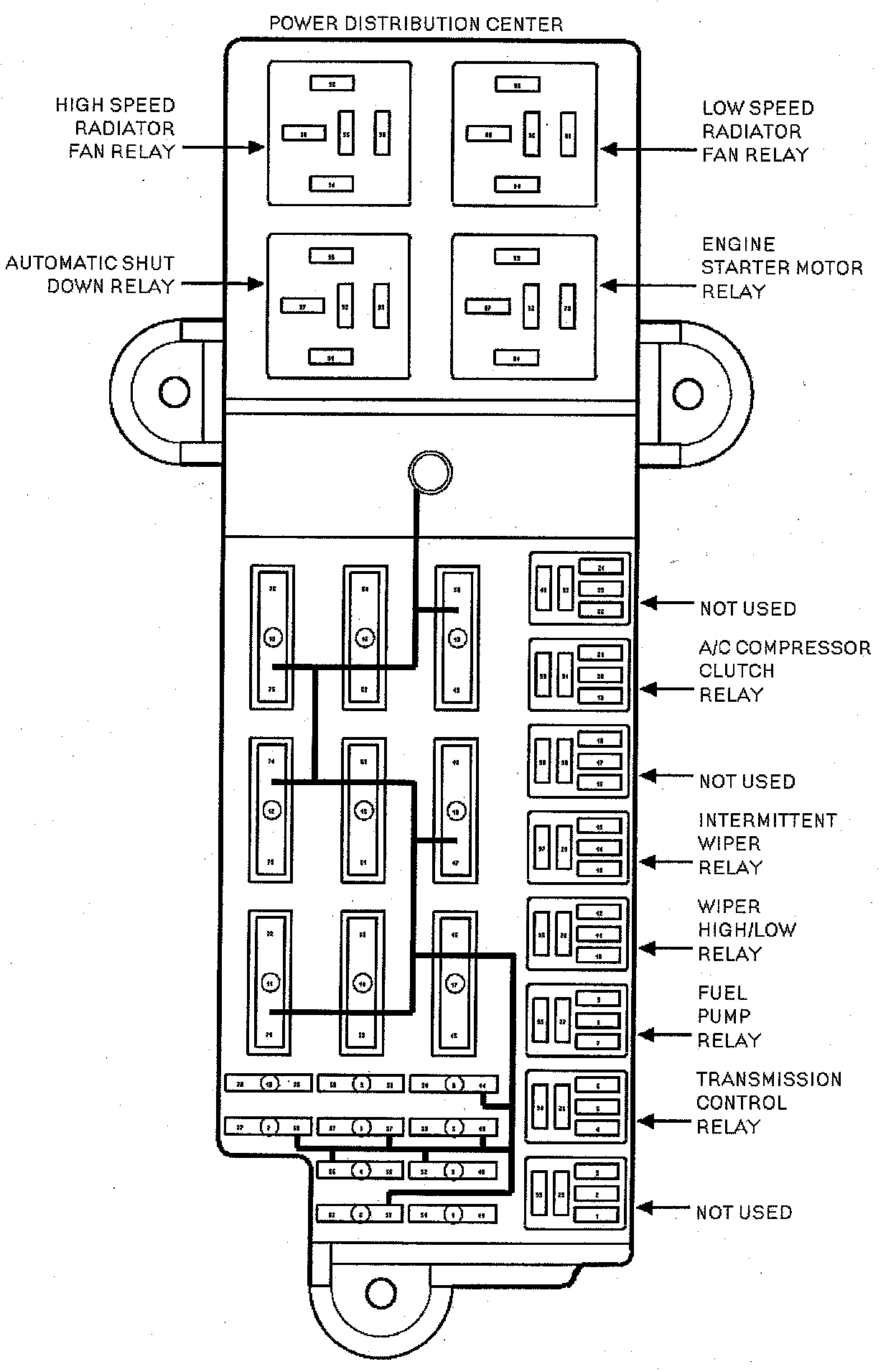

Power Distribution Center:
Power Distribution Center Details (Part 1 Of 2):

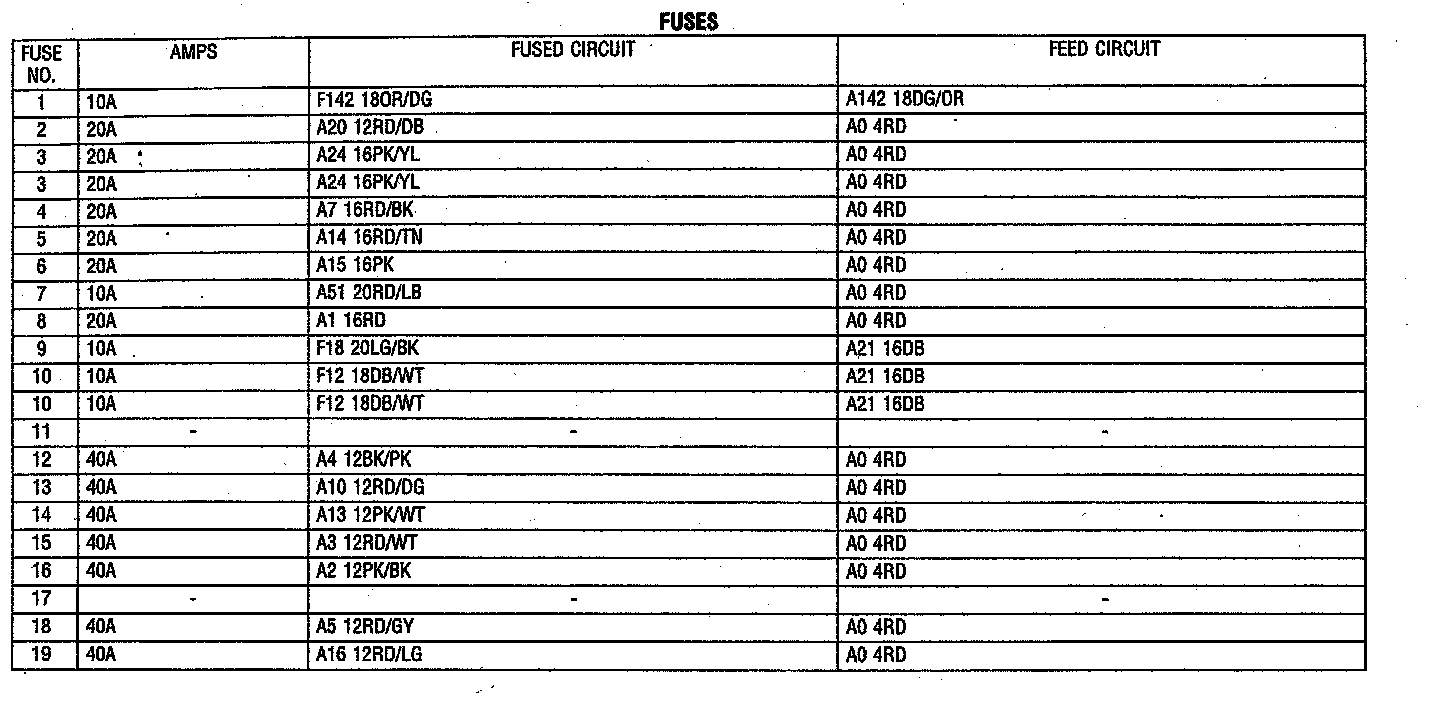

Power Distribution Center Details (Part 2 Of 2):
Power Distribution Center
