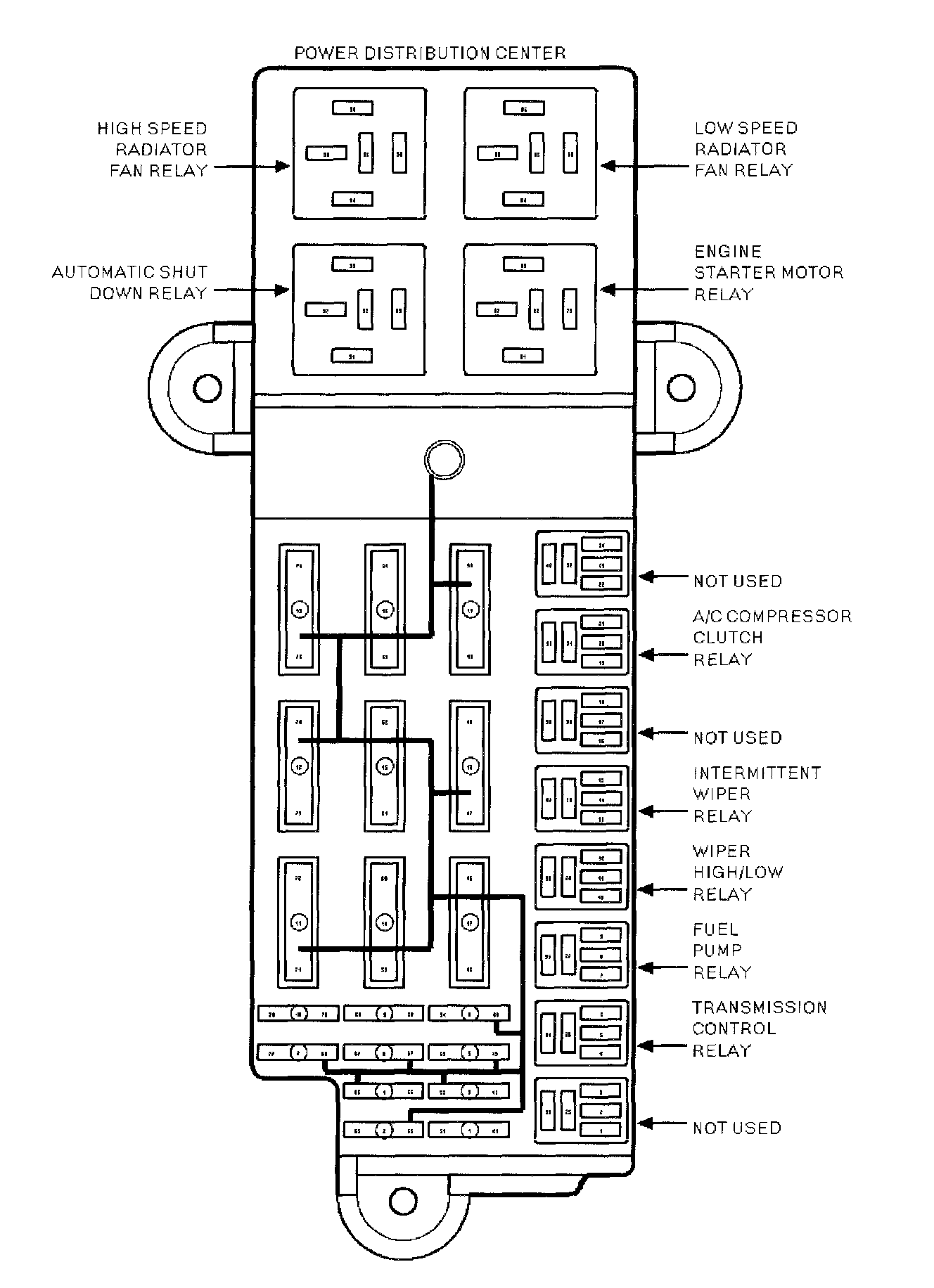

Power Distribution Module: Diagrams

Power Distribution Center Part 1 Of 12:

Power Distribution Center Part 2 Of 12:

Power Distribution Center Part 3 Of 12:

Power Distribution Center Part 4 Of 12:

Power Distribution Center Part 5 Of 12:

Power Distribution Center Part 6 Of 12:

Power Distribution Center Part 7 Of 12:

Power Distribution Center Part 8 Of 12:

Power Distribution Center Part 9 Of 12:

Power Distribution Center Part 10 Of 12:

Power Distribution Center Part 11 Of 12:

Power Distribution Center Part 12 Of 12:
