Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Powertrain Control Module C2 - Black 80 Way

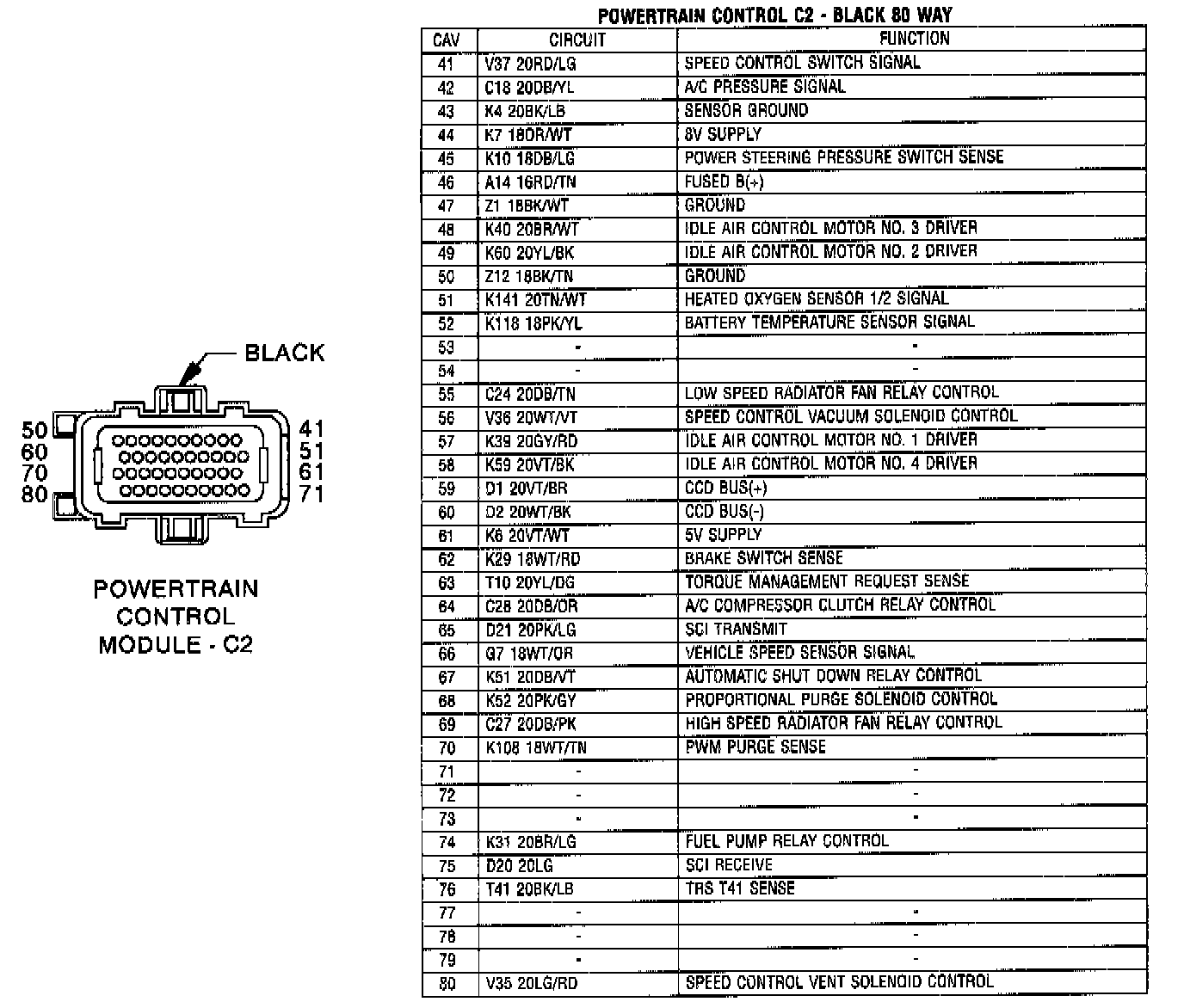

Powertrain Control Module C2 - Black 80 Way

Powertrain Control Module C2 - Black 80 Way:
