Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Body Control Module >> J/B - Body Control Module

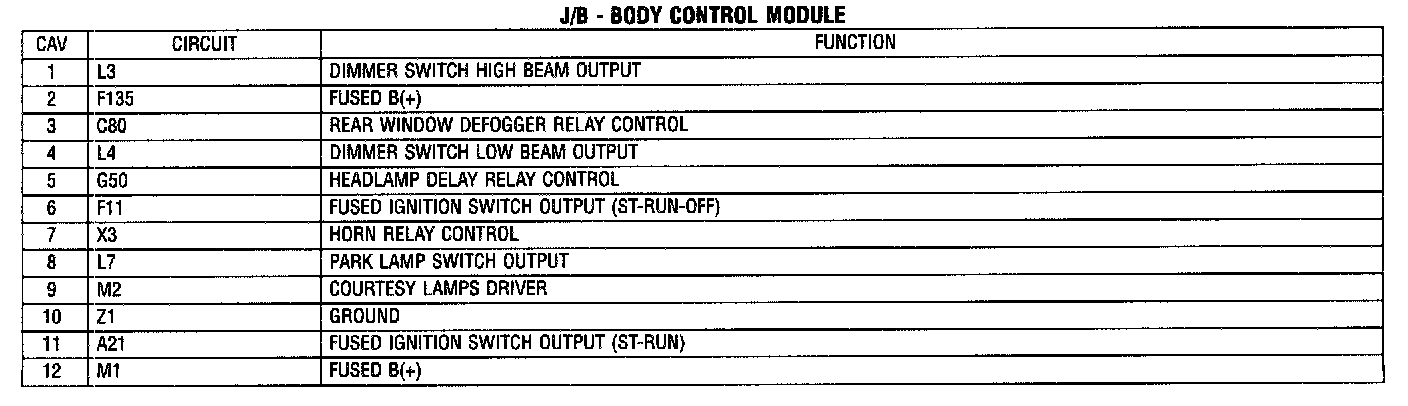

J/B - Body Control Module

J/B - Body Control Module:
