Powertrain Management
>>
Body Control Module
Body Control Module

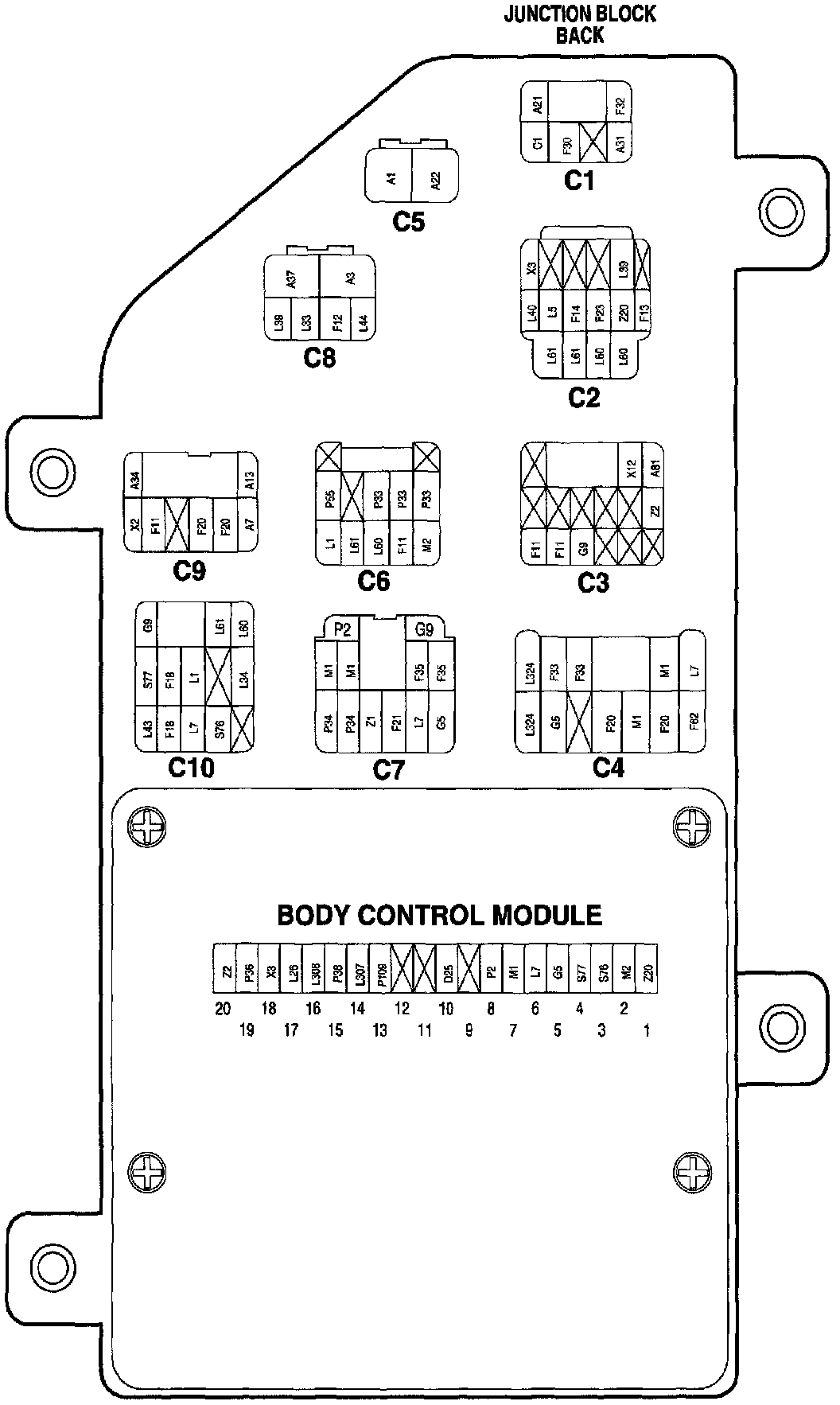

8w-12-2:

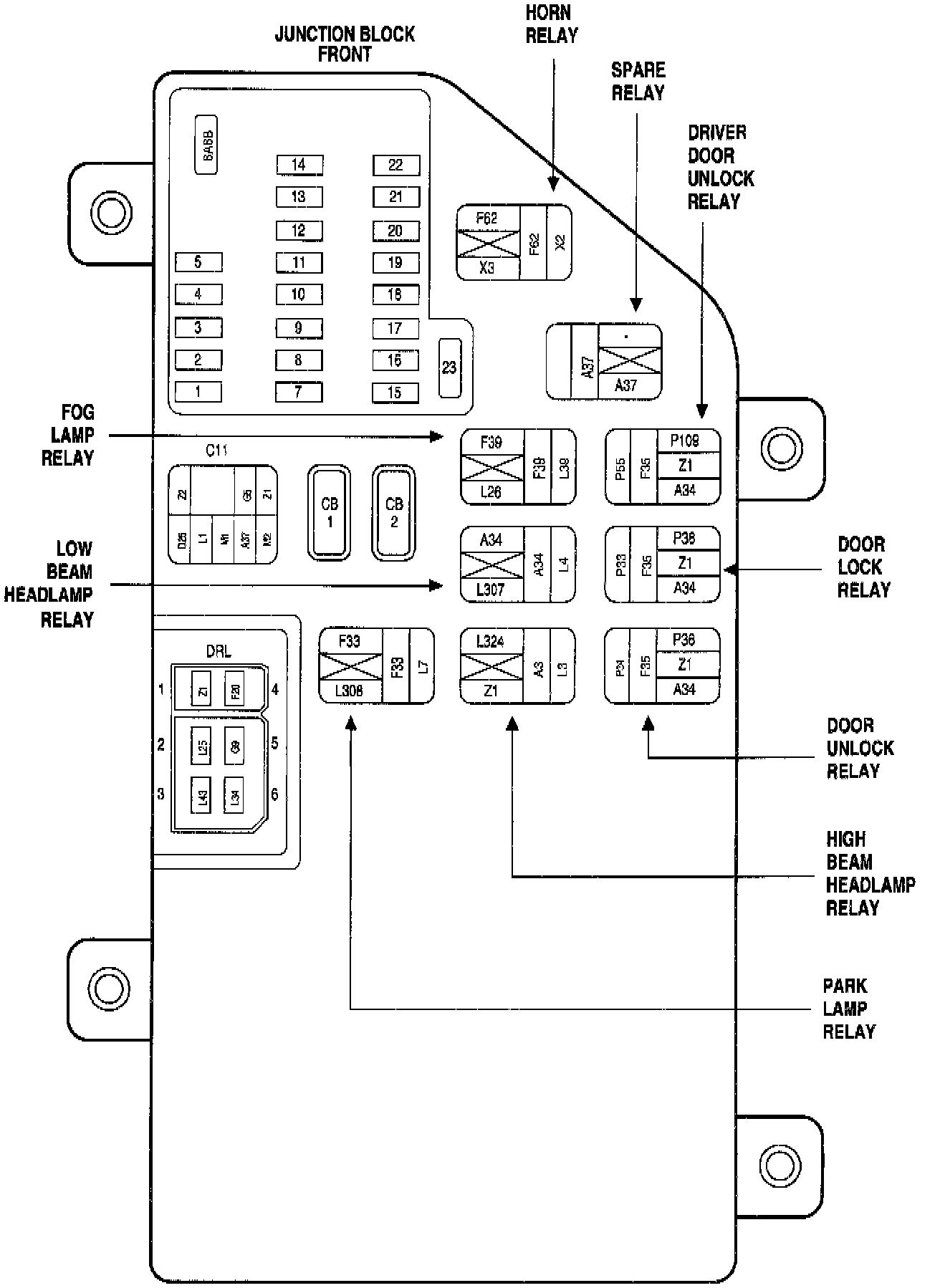

8w-12-3:
8w-12-7:
Body Control Module "C3" (Bone) 12-way Connector:
