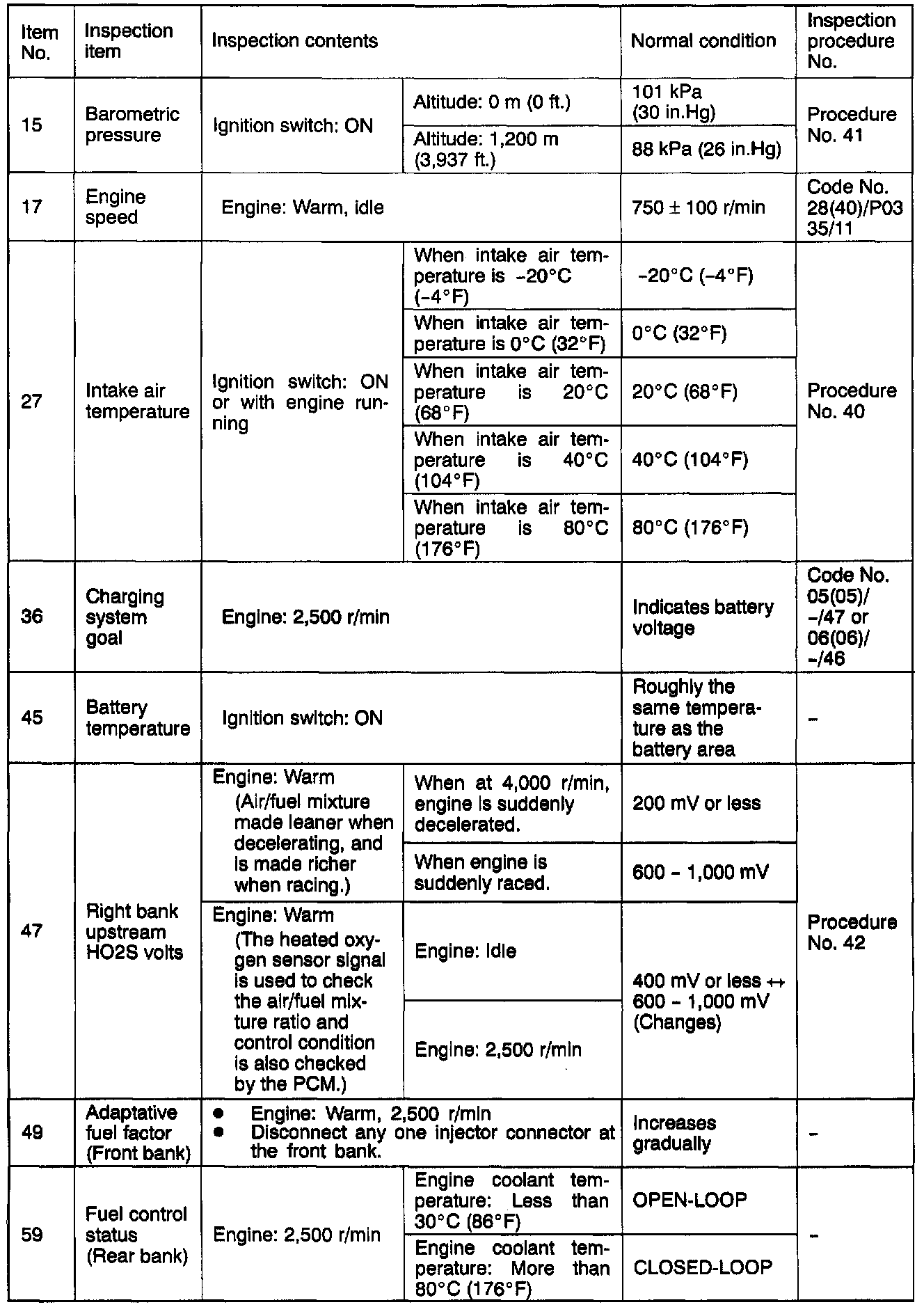

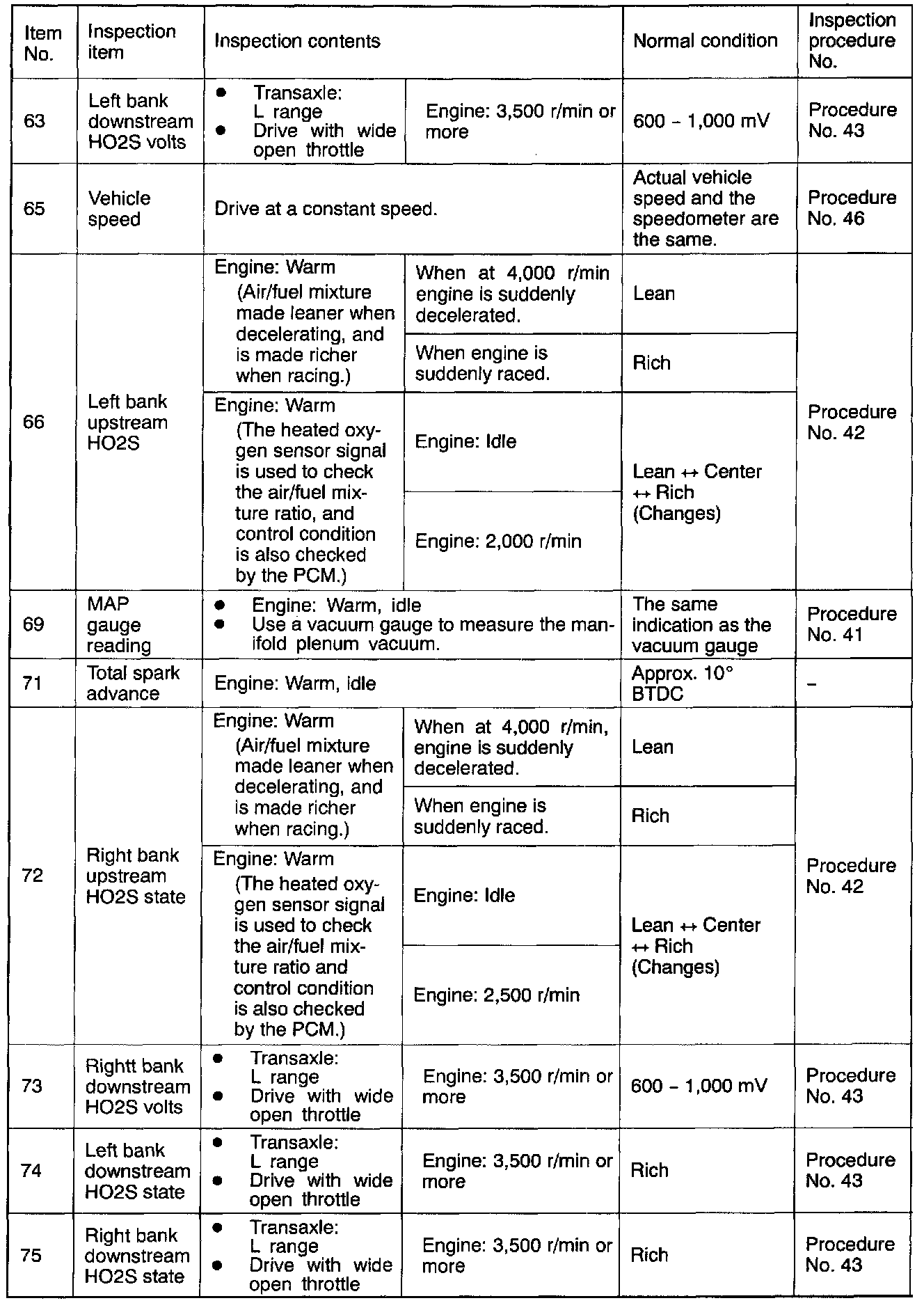

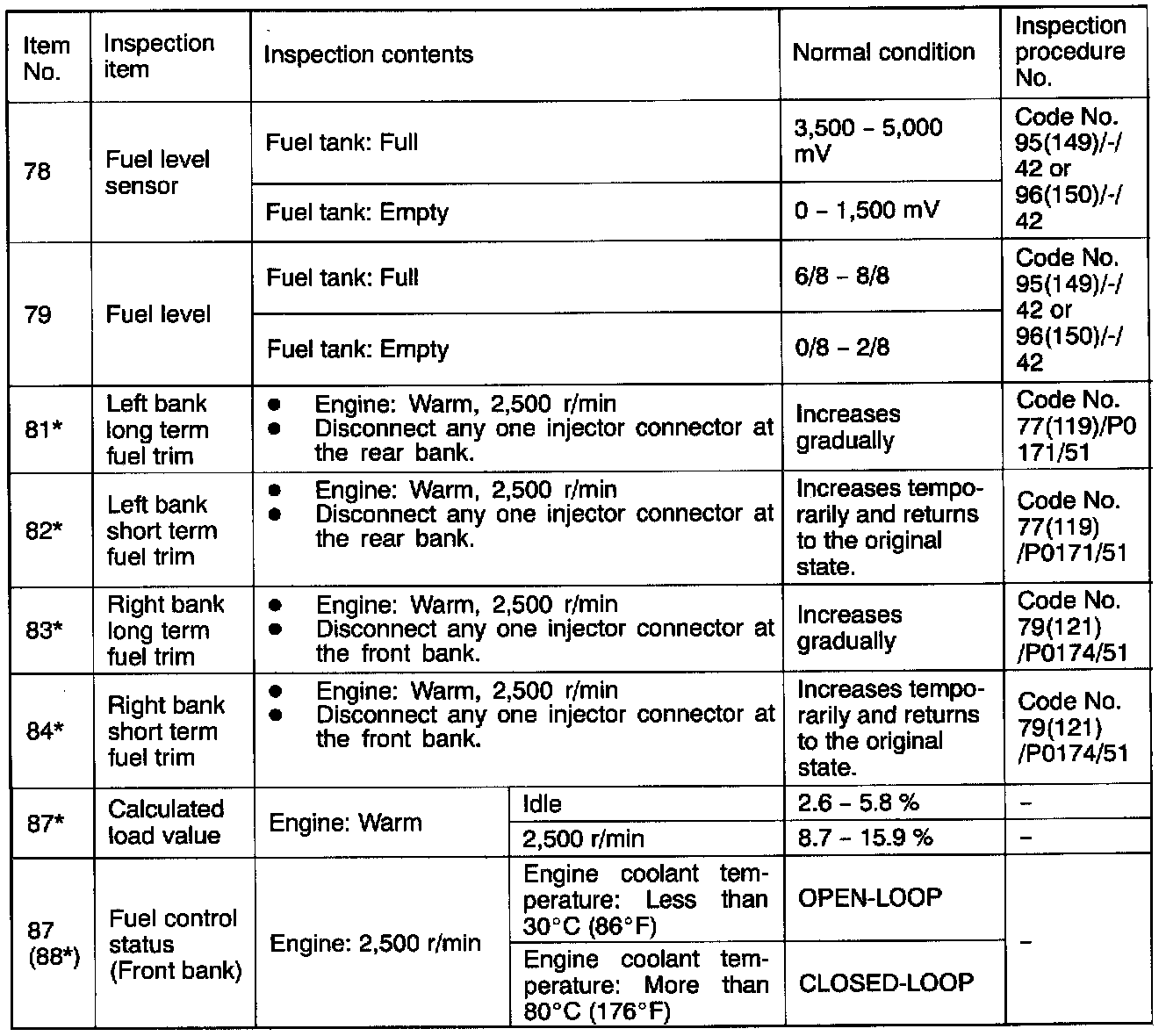

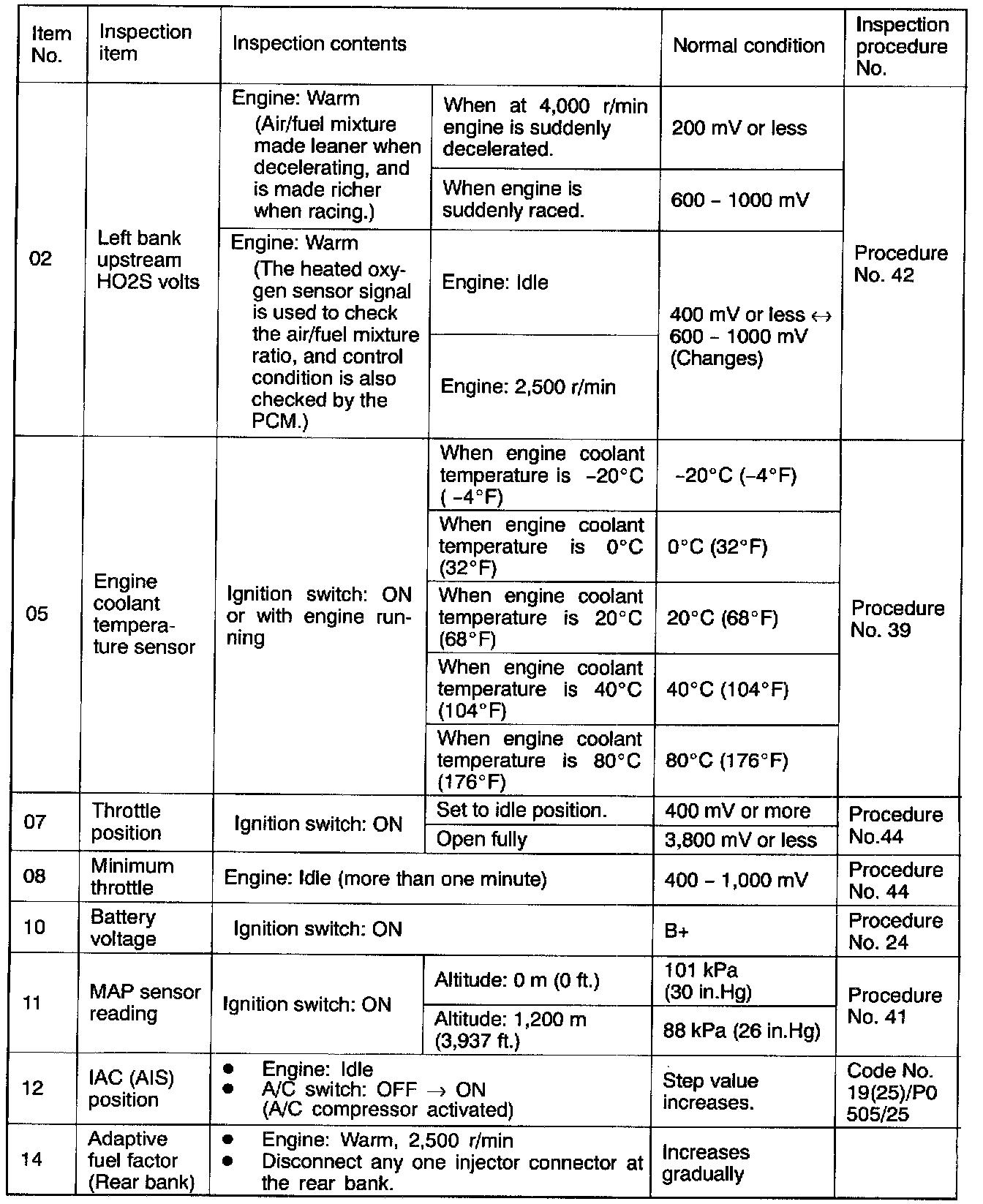

Sensor Read Tests Reference Table

1. Before shifting the select lever to D range, apply the brakes so the vehicle does not move forward.
2. When checking values while driving the car, always be sure to have a second person in the vehicle.

* General Scan Tool (GST) mode.
