Home >> Chrysler >> 1998 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

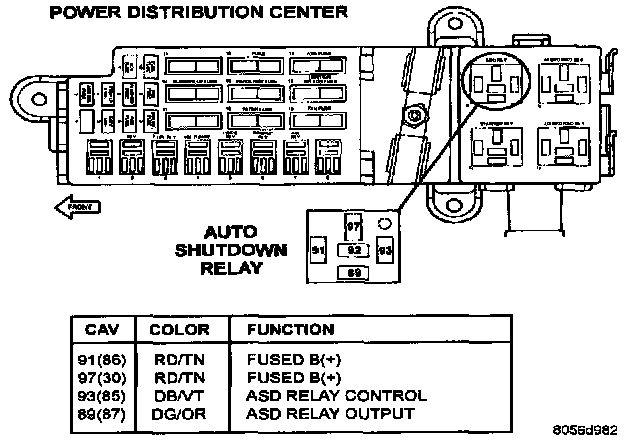

Power Distribution Center, Auto Shutdown Relay:

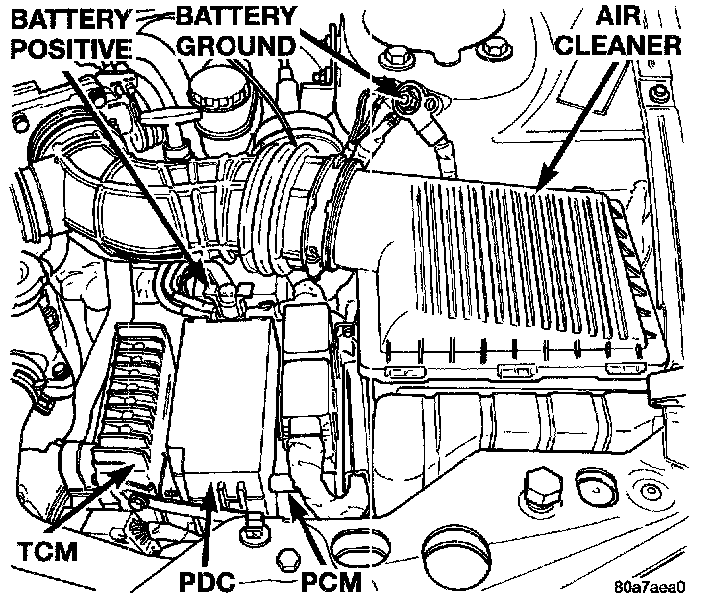

Power Distribution Center (PDC):

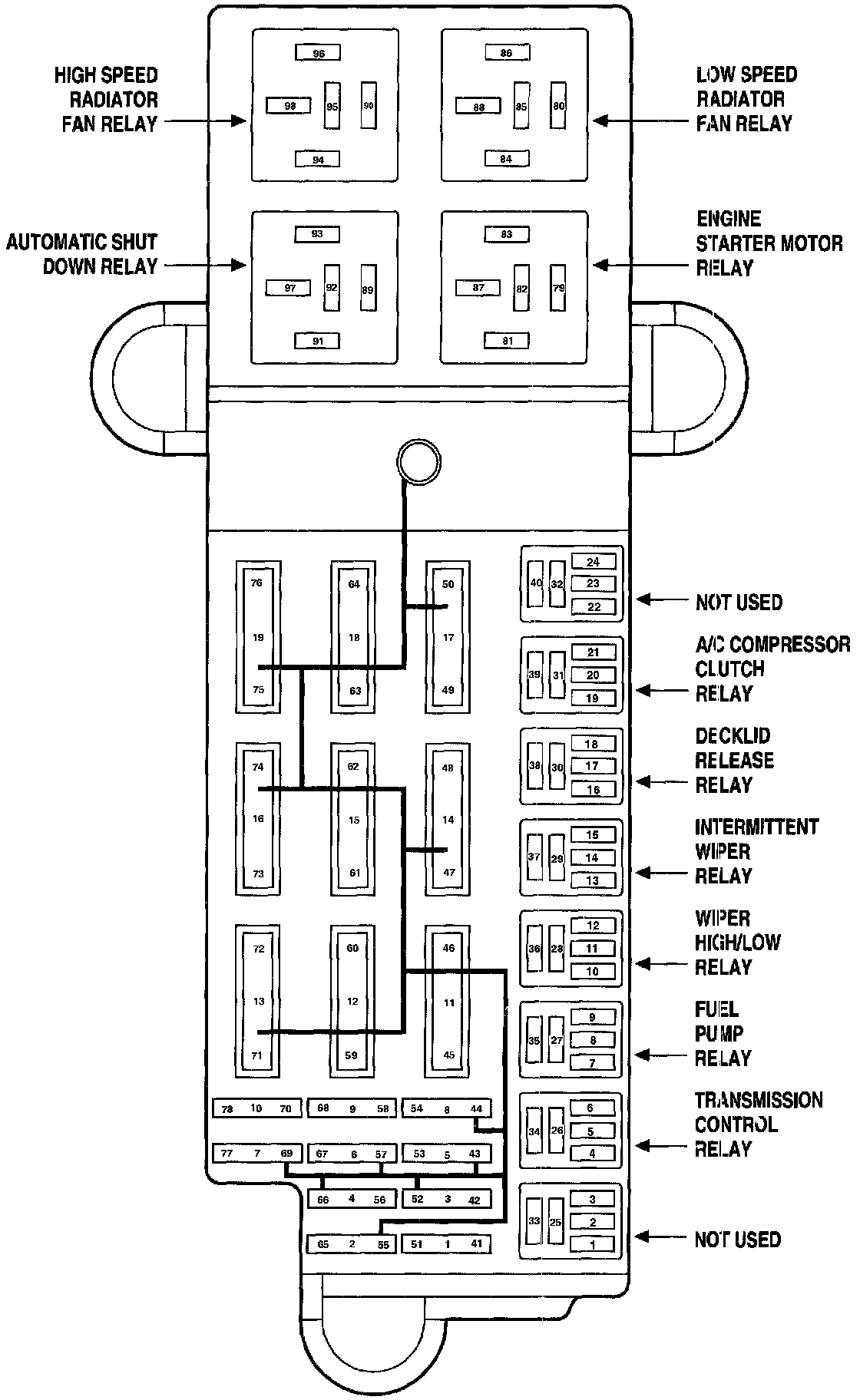

8w-10-2 Power Distribution Center:
