Home >> Chrysler >> 1998 >> Cirrus L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

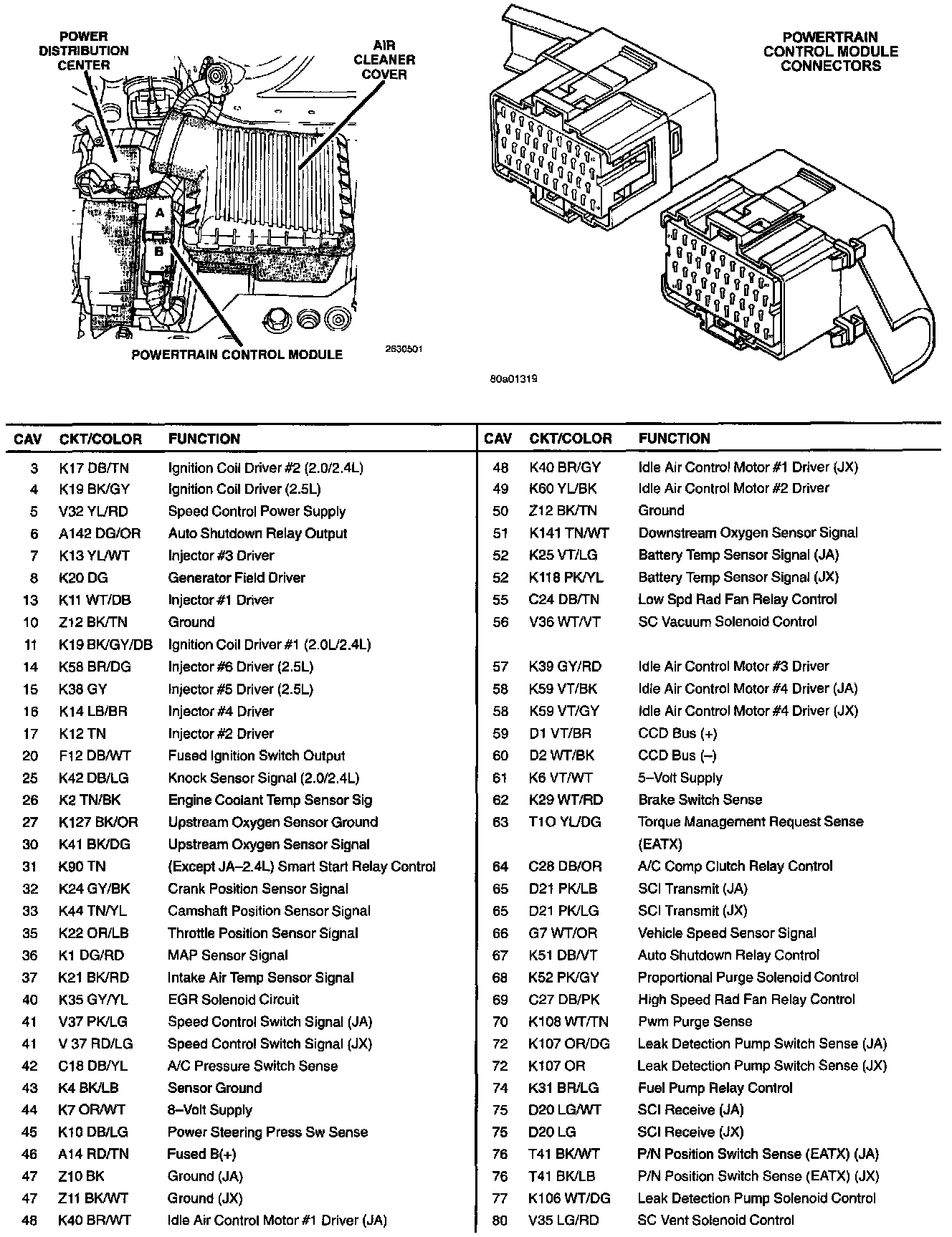

Engine Control Module

Powertrain Control Module:
