Replacement

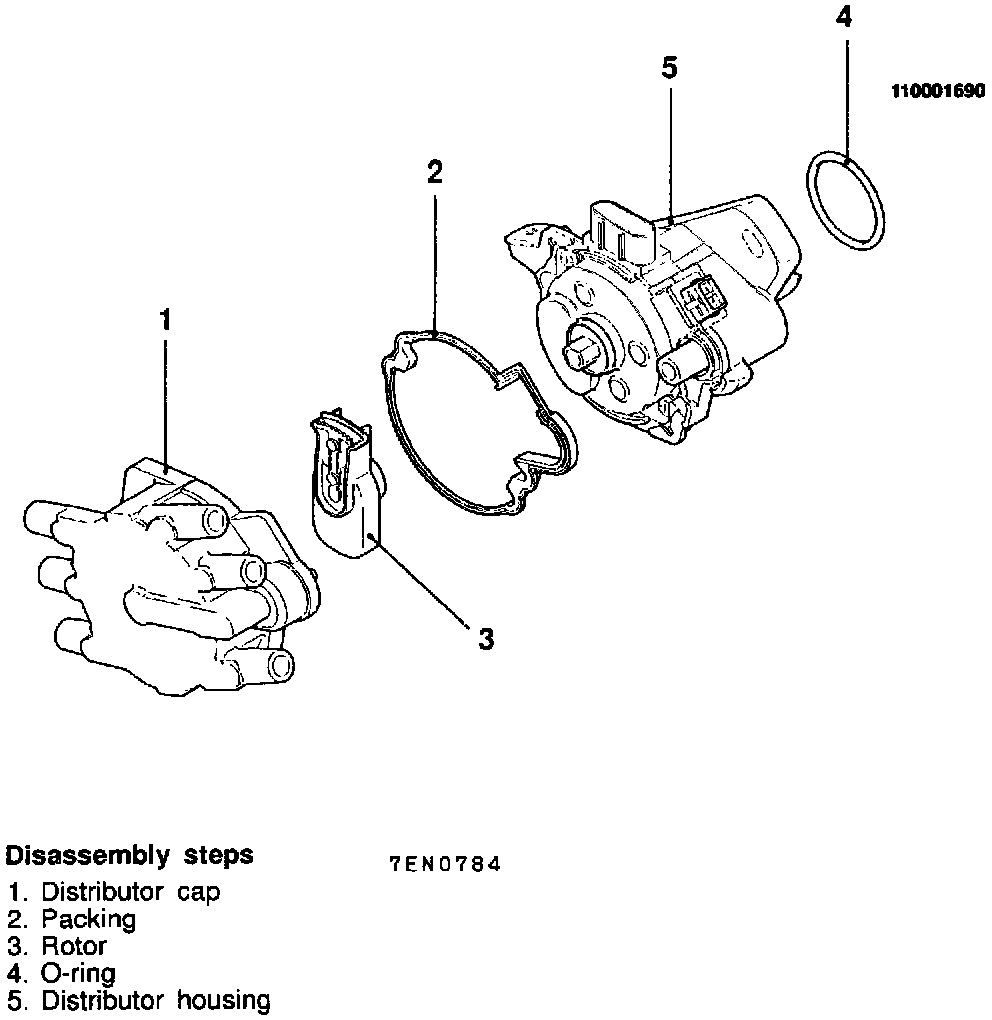

Distributor - Disassembly And Reassembly:

REMOVE
1. Distributor cap.
2. Packing.
3. Rotor.
4. 0-ring.
5. Distributor housing.

INSTALL
1. Distributor housing.
2. 0-ring.
3. Rotor.
4. Packing.
5. Distributor cap.

INSTALLATION SERVICE POINT
Distributor Installation

Distributor Installation:

1. Turn the crankshaft clockwise to set the No. 1 cylinder at the compression top dead center.

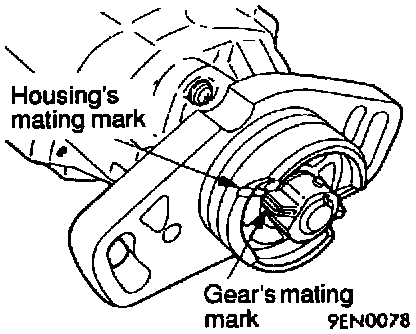

2. Align the housing's mating mark with the gear's mating mark.
3. Install the distributor to the cylinder head.
