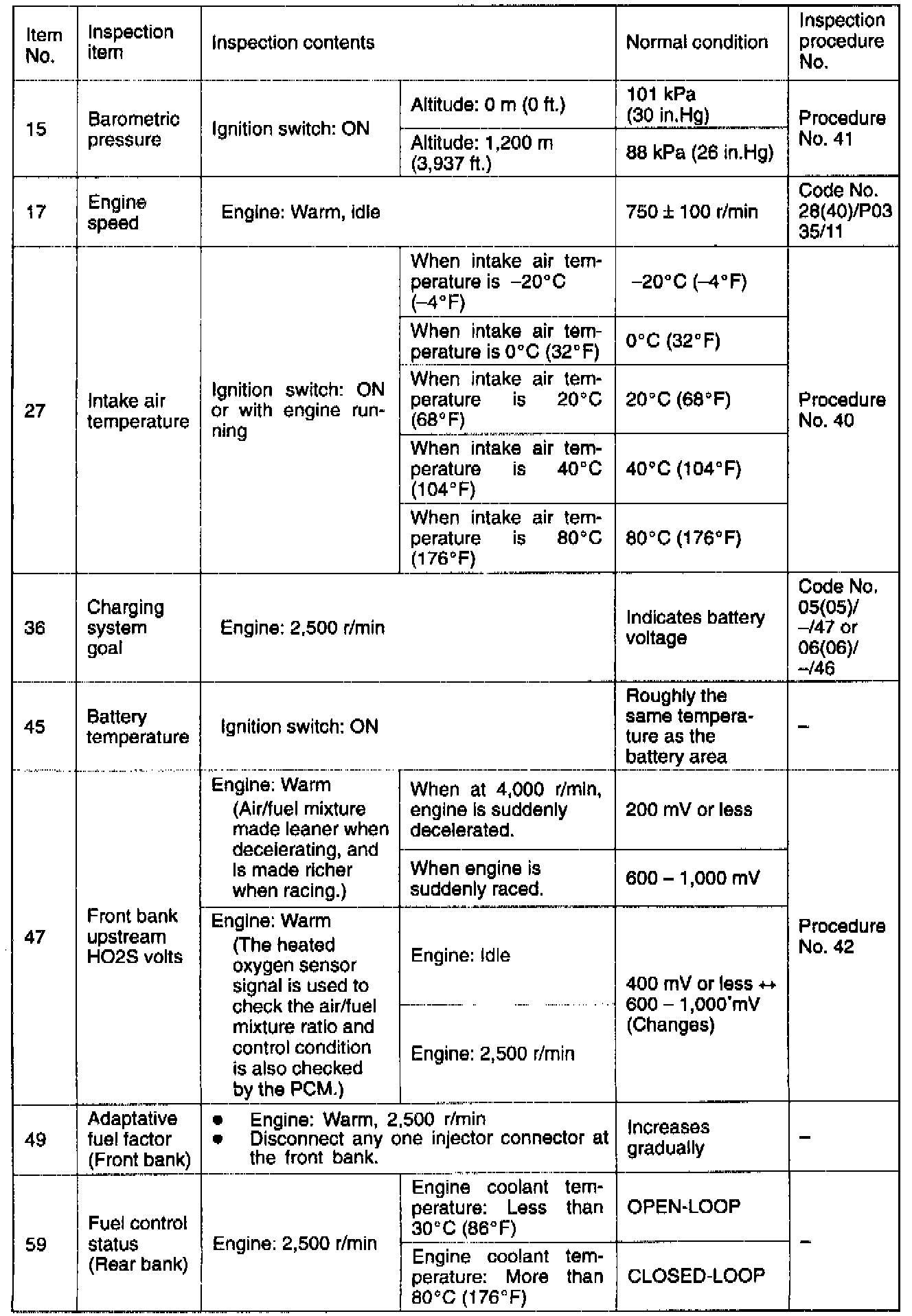

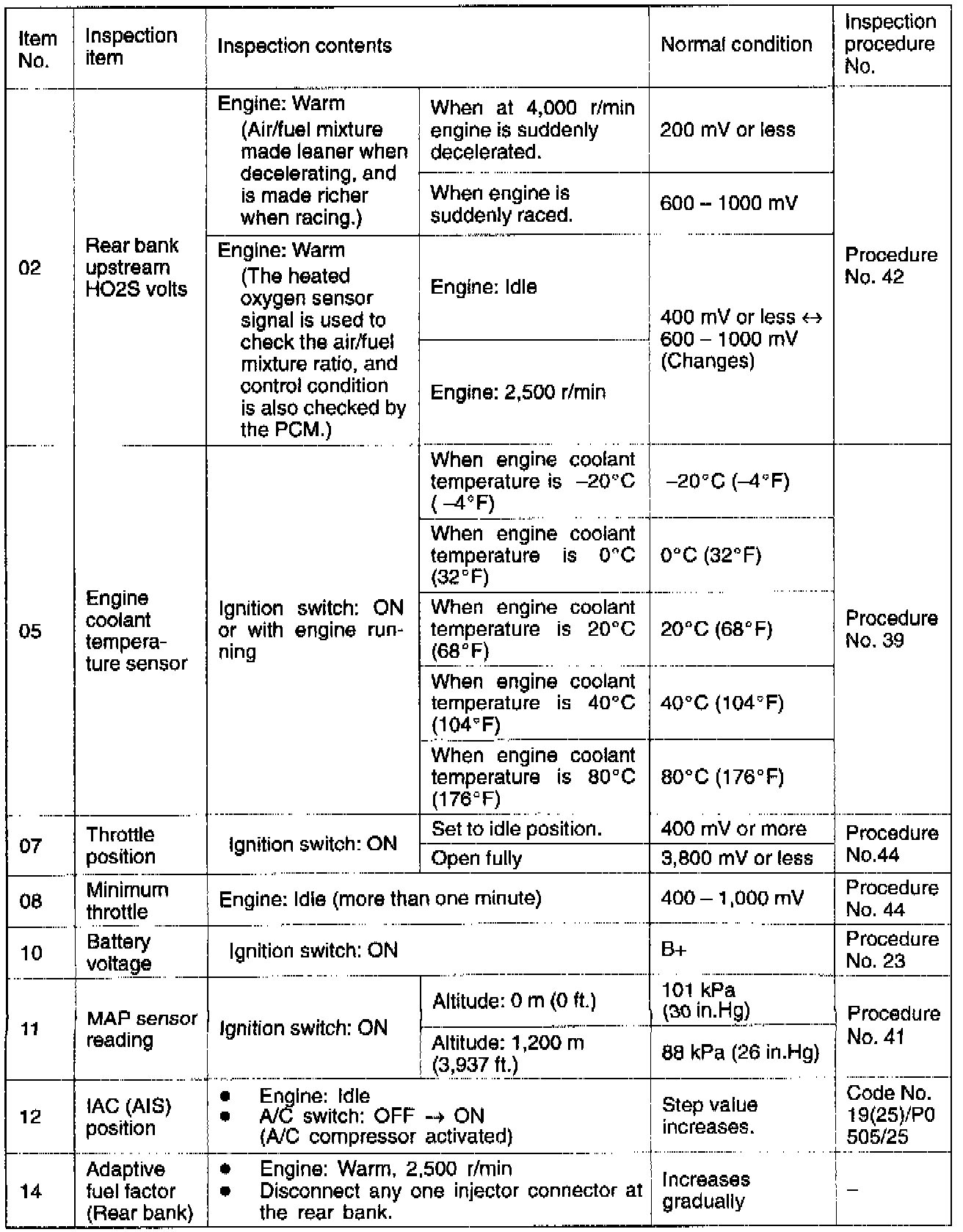

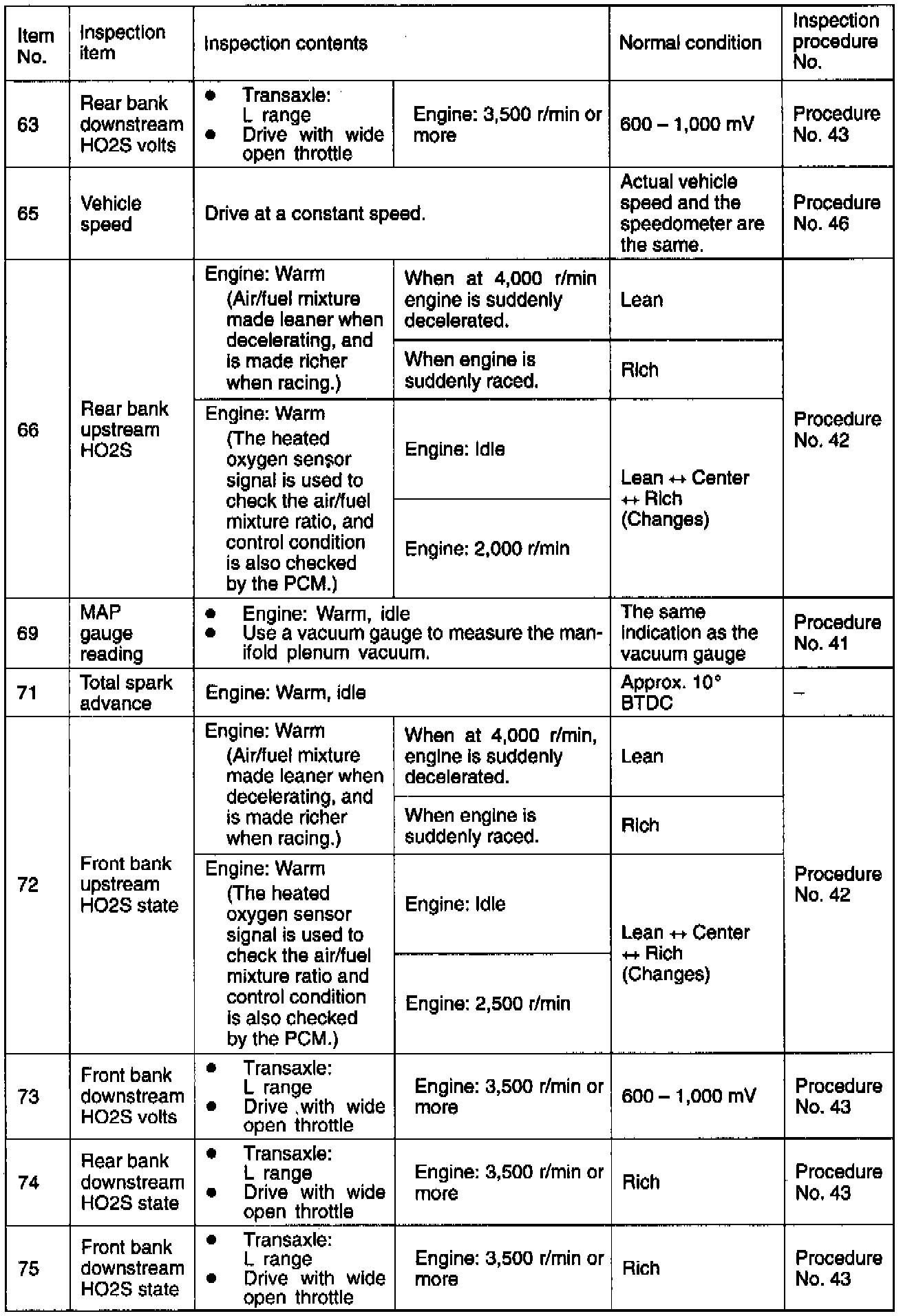

Sensor Read Tests Reference Table

Sensor Read Tests Reference Table:

Sensor Read Tests Reference Table:

Sensor Read Tests Reference Table:

Sensor Read Tests Reference Table:

1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
2. When checking while driving the vehicle, always be sure to have two people riding in the vehicle.
