Connector Views

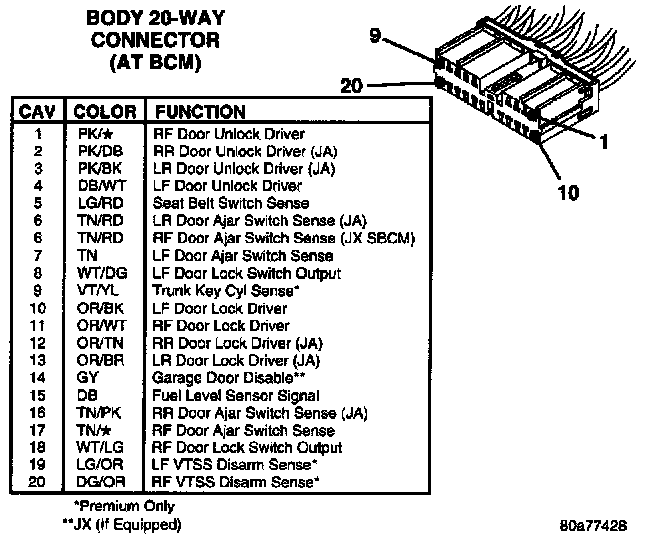

Body 20 Way Connector (At BCM):

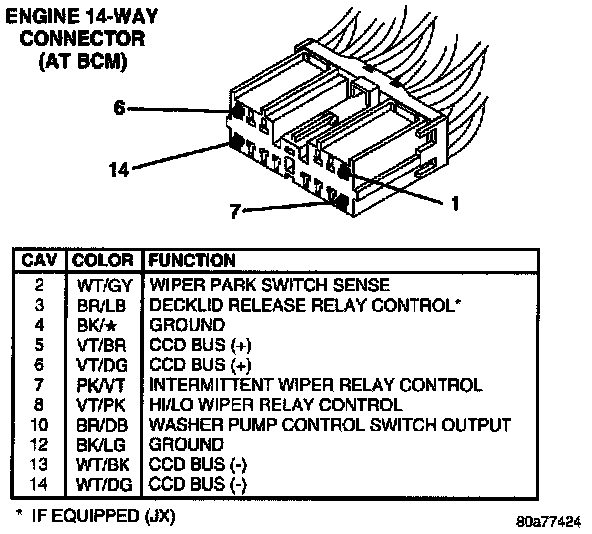

Engine 14 Way Connector (At BCM):

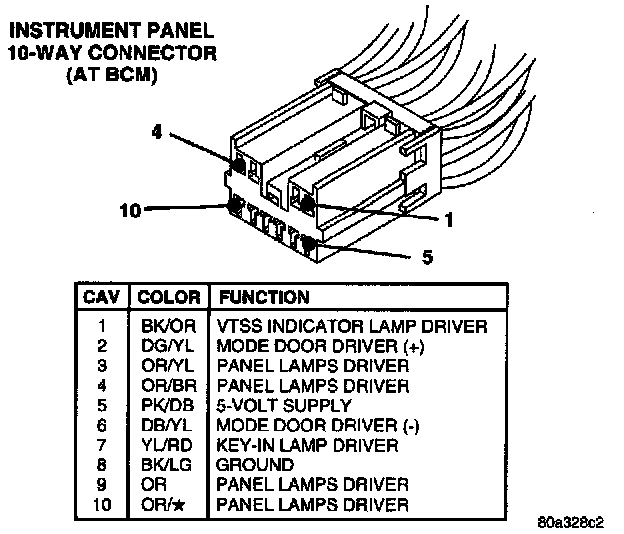

Instrument Panel 10-Way Connector (At BCM):

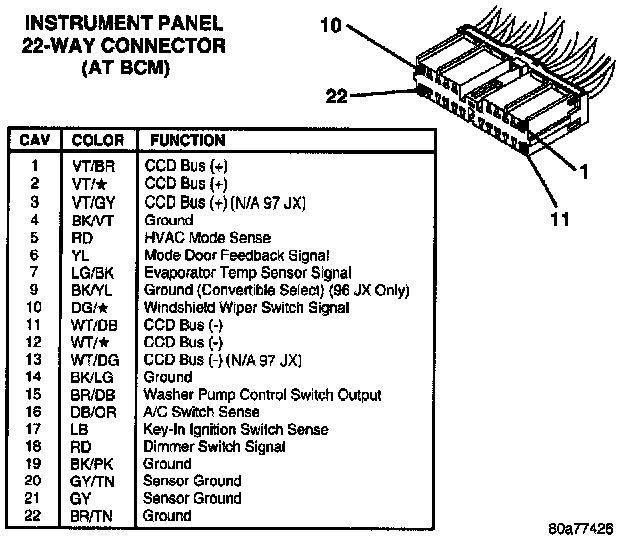

Instrument Panel 22-Way Connector (At BCM):
