Rear Alignment

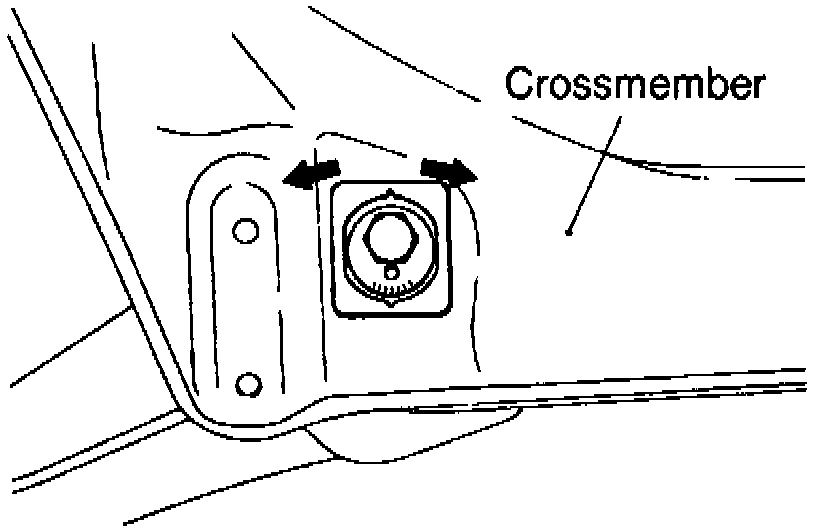

Fig. 2 Rear Toe Adjustment:

Toe is adjusted by turning the toe control arm mounting bolt to the left or right in equal amounts. Turning the left-hand bolt clockwise adjusts in the toe-out direction. Turning the right-hand bolt clockwise adjusts in the toe-in direction. Toe adjustments are made in graduations of 0.05 inch.
