lemon-mirror
:
Home
>>
Chrysler
>>
1996
>>
Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Power Distribution Center
Power Distribution Center

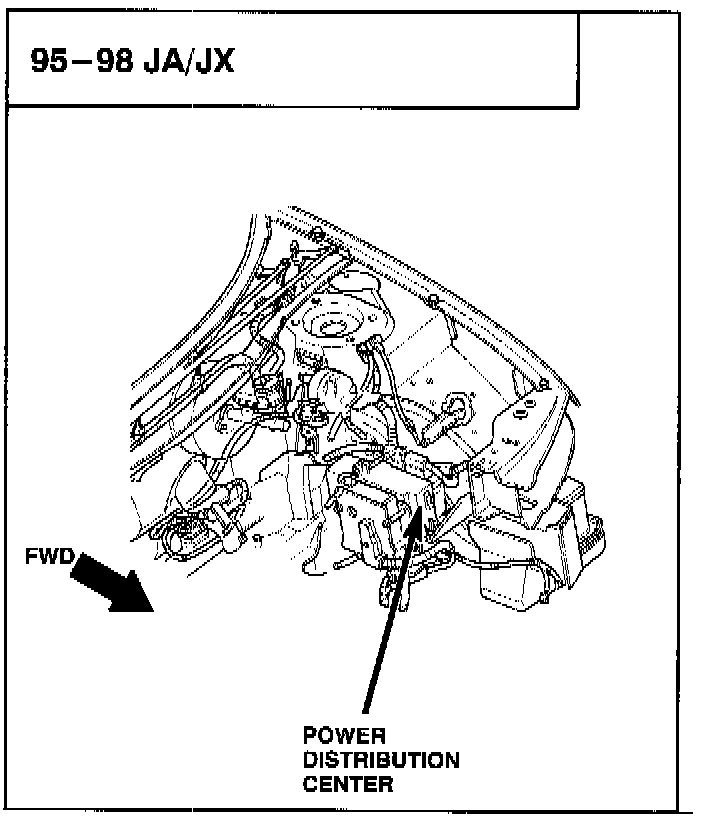

Power Distribution Center:

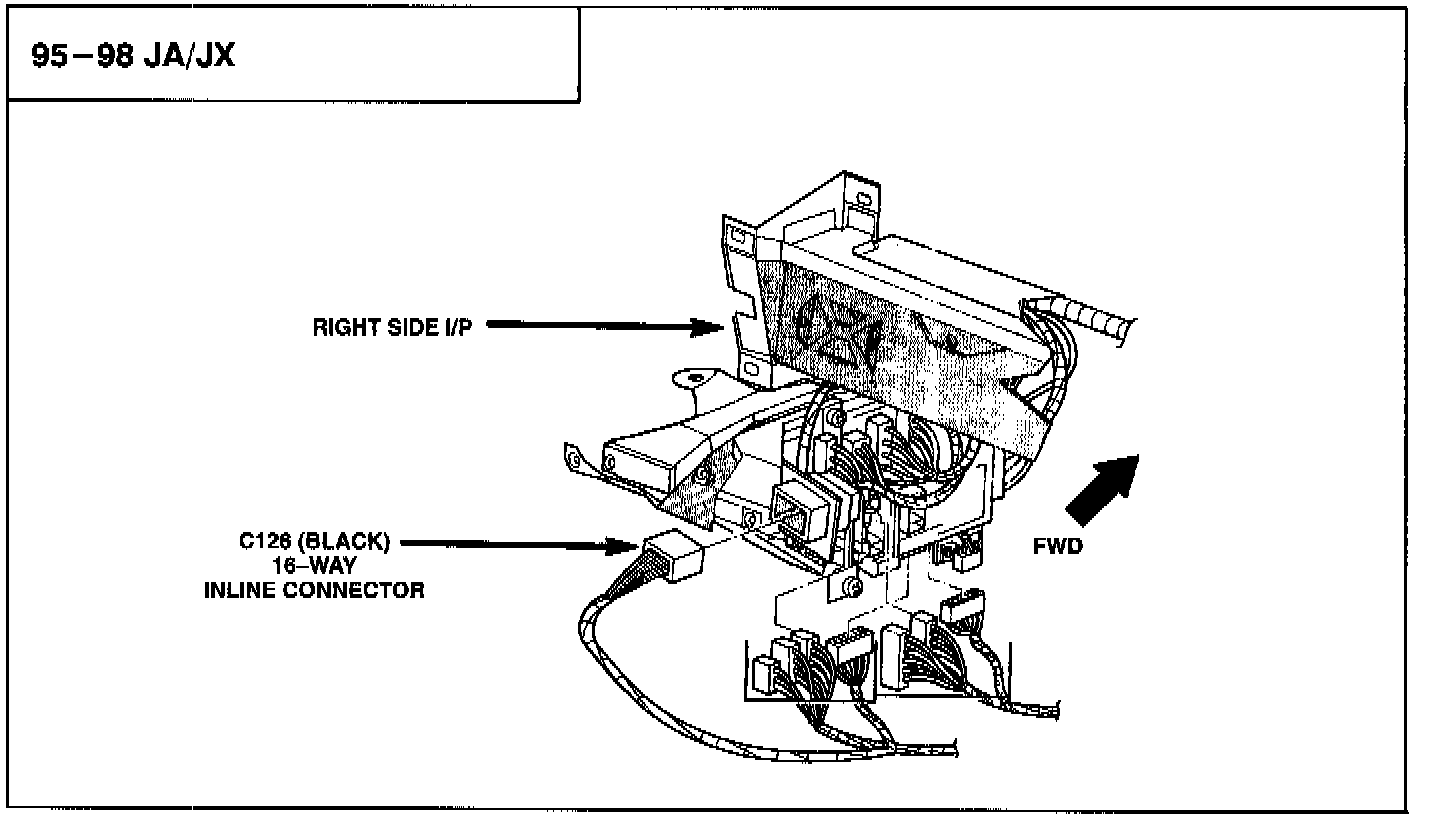

16 - Way Inline Connector:

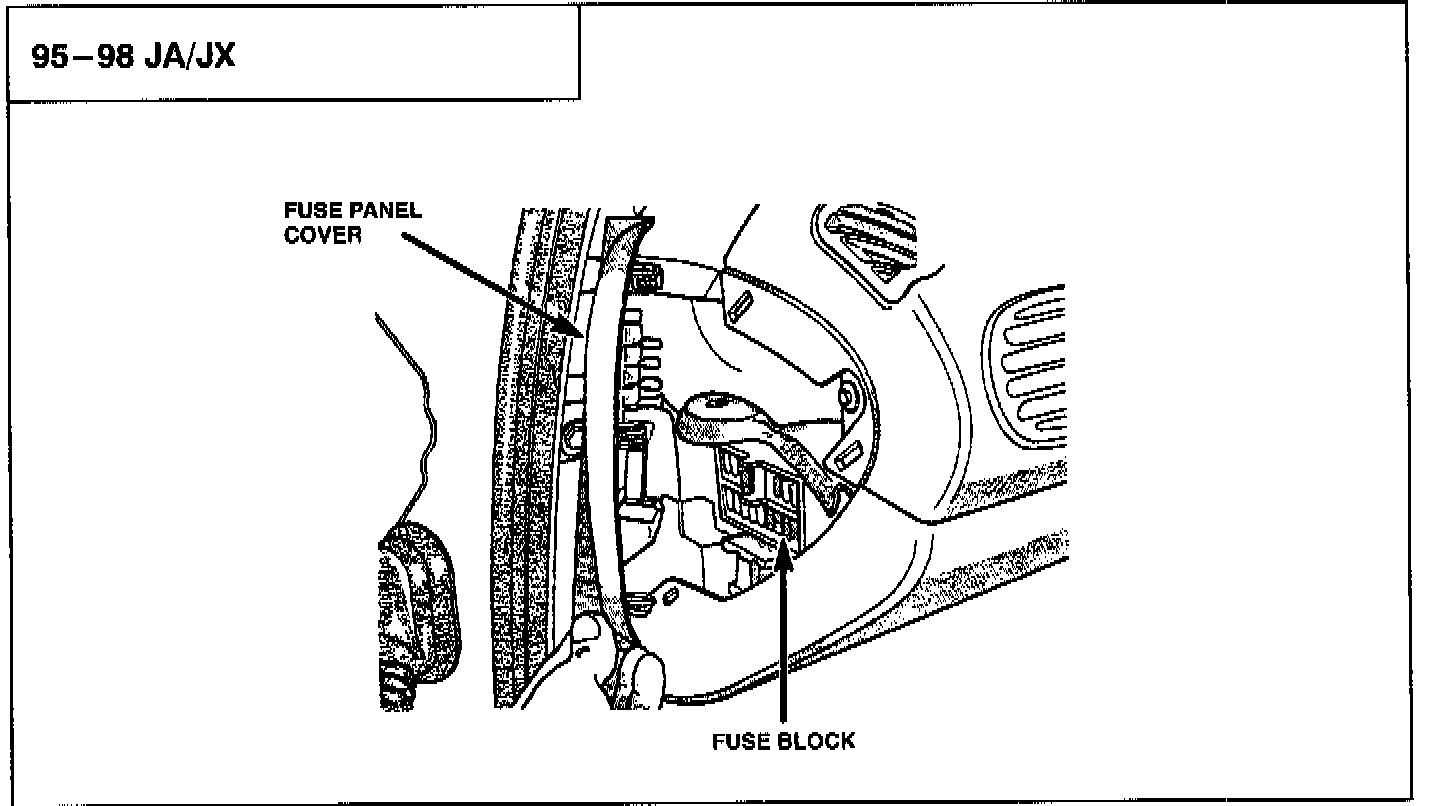

Fuse Block:

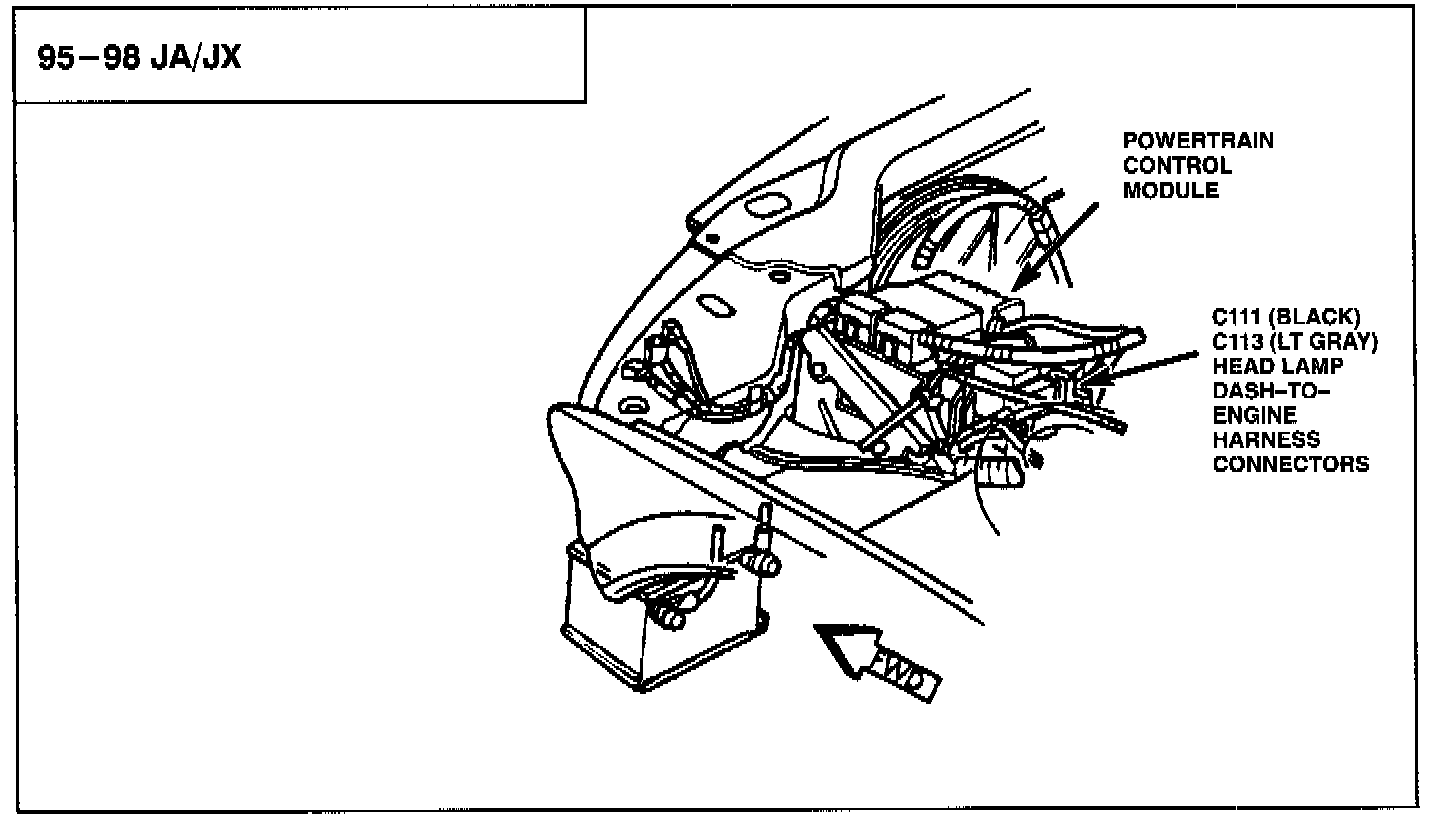

PCM:

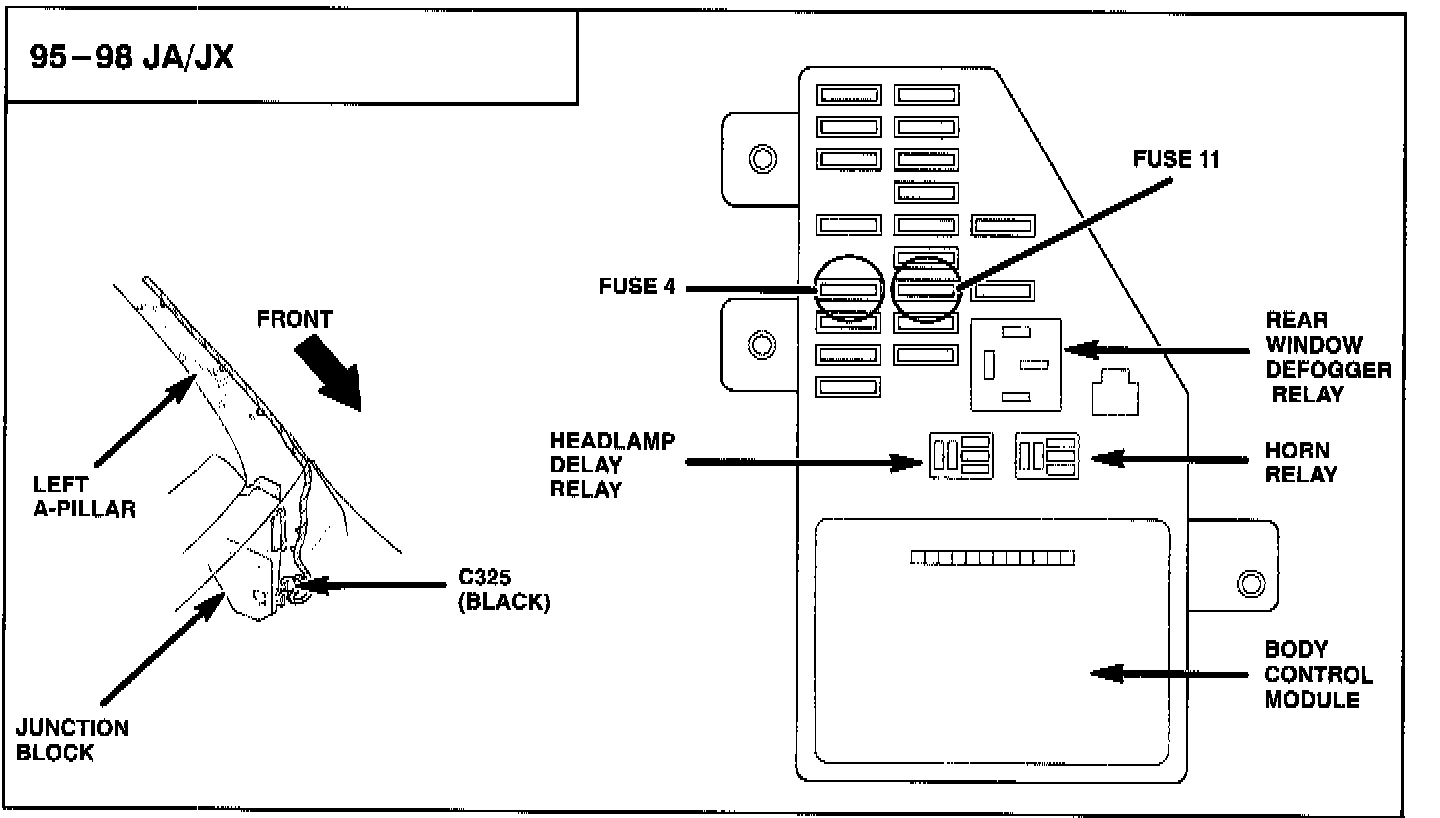

BCM, Junction Block, Relays:
