Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

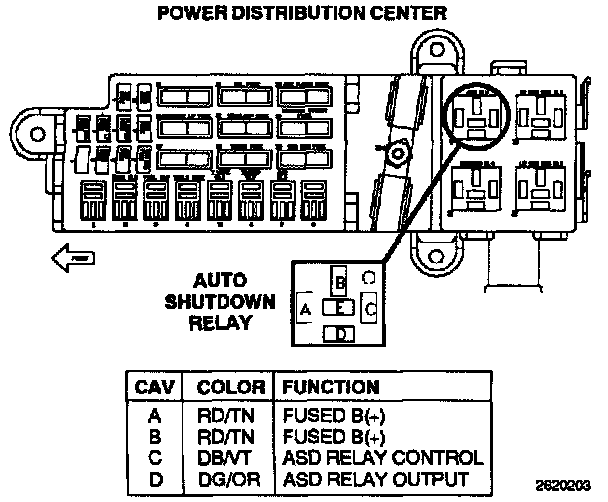

Automatic Shutdown Relay Connector:

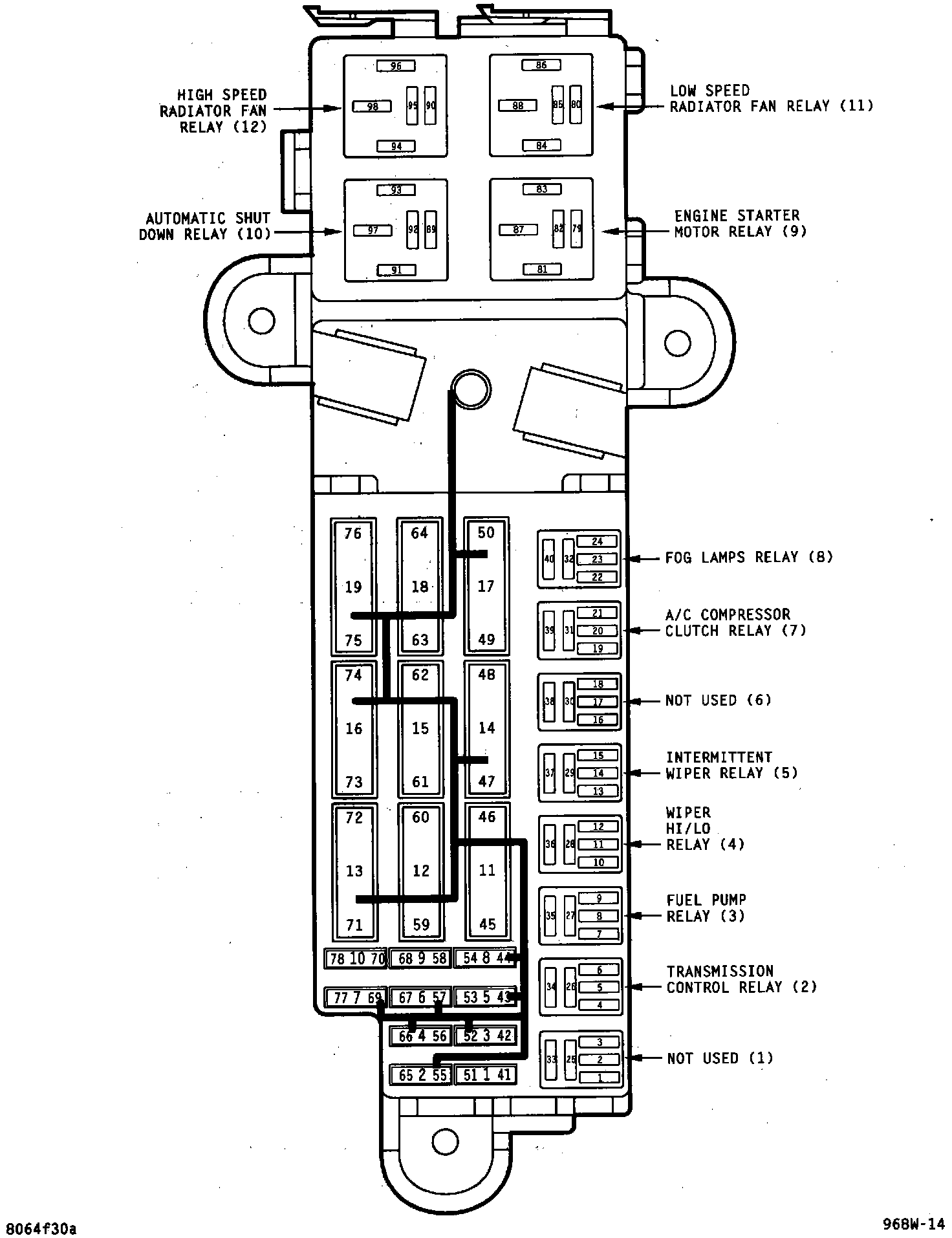

Power Distribution (Part 1 Of 4):
