Toe Adjustment

Prior to performing front alignment, check rear alignment.

1. Perform rear wheel alignment as outlined under "Rear Wheel Alignment".

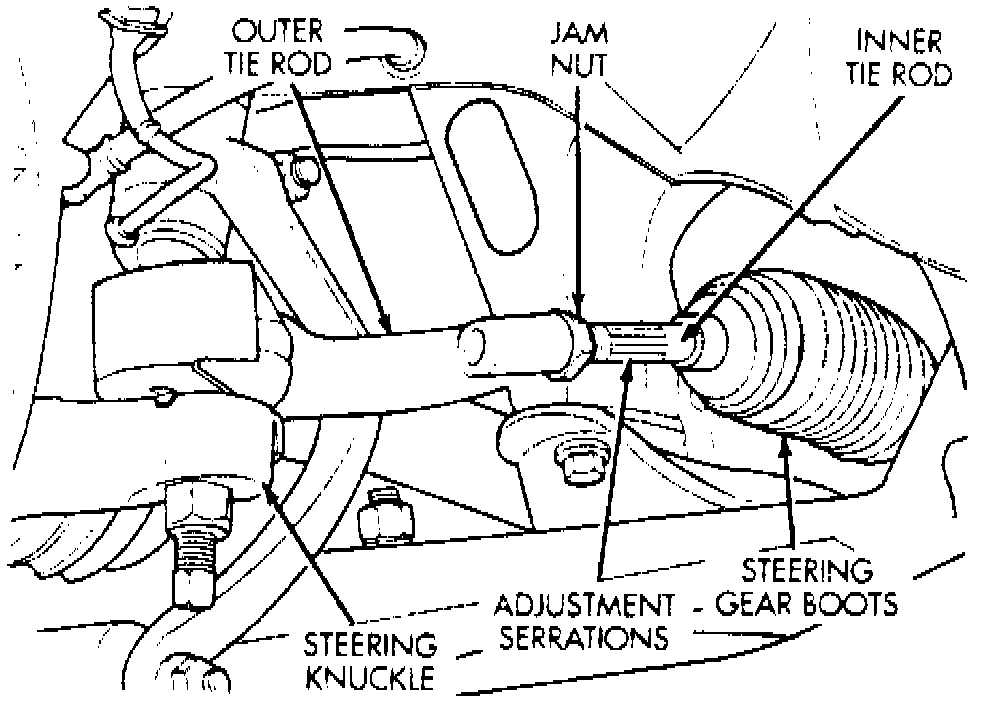

Fig. 2 Inner & Outer Tie Rod Adjustment:

2. Loosen front inner and outer tie rod jam nuts and rotate inner tie rod end at steering gear to set front toe.
