Powertrain Management
>>
Engine Control Module
Engine Control Module
PCM Location and Pin Identification:
Part 1 Of 1:

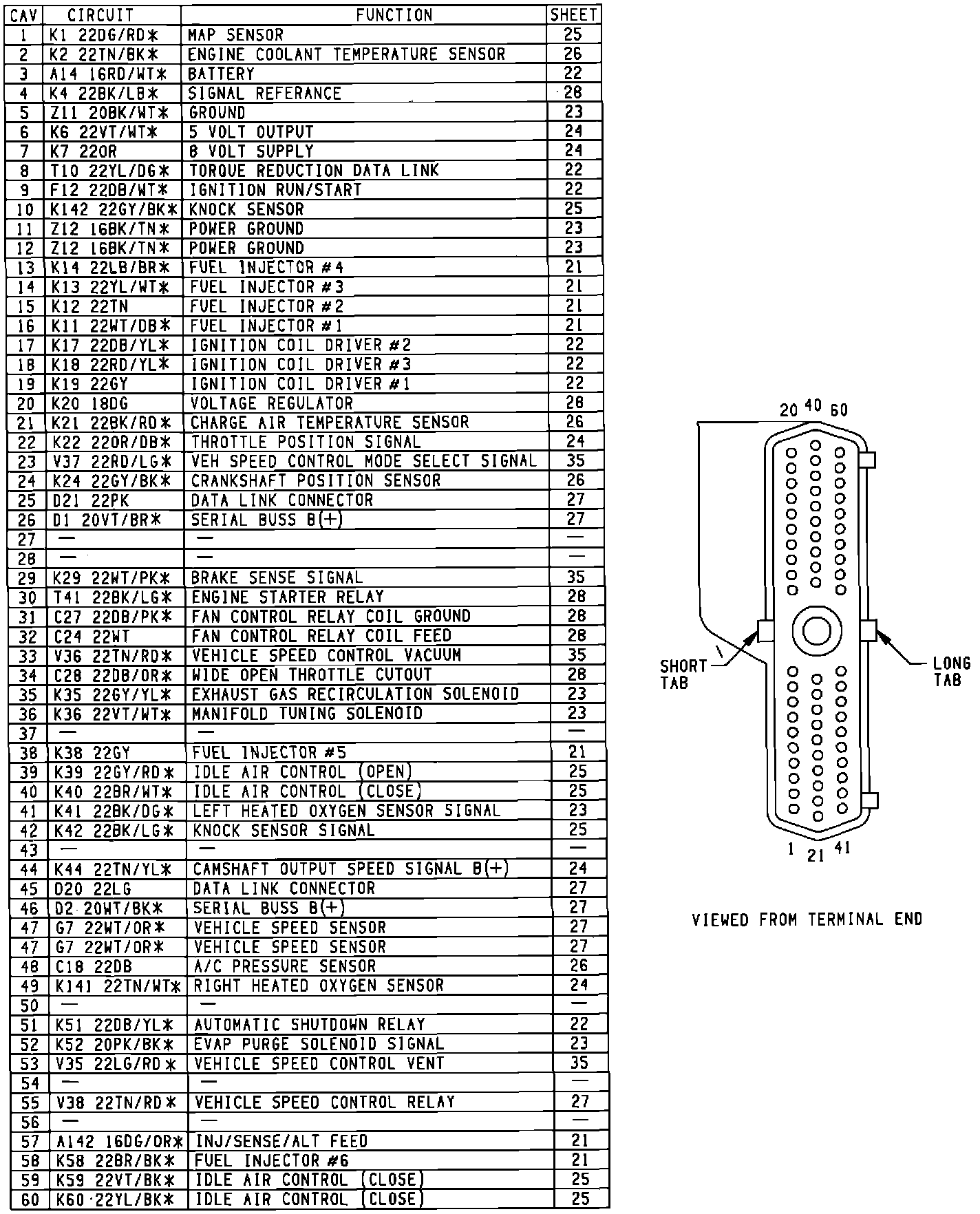

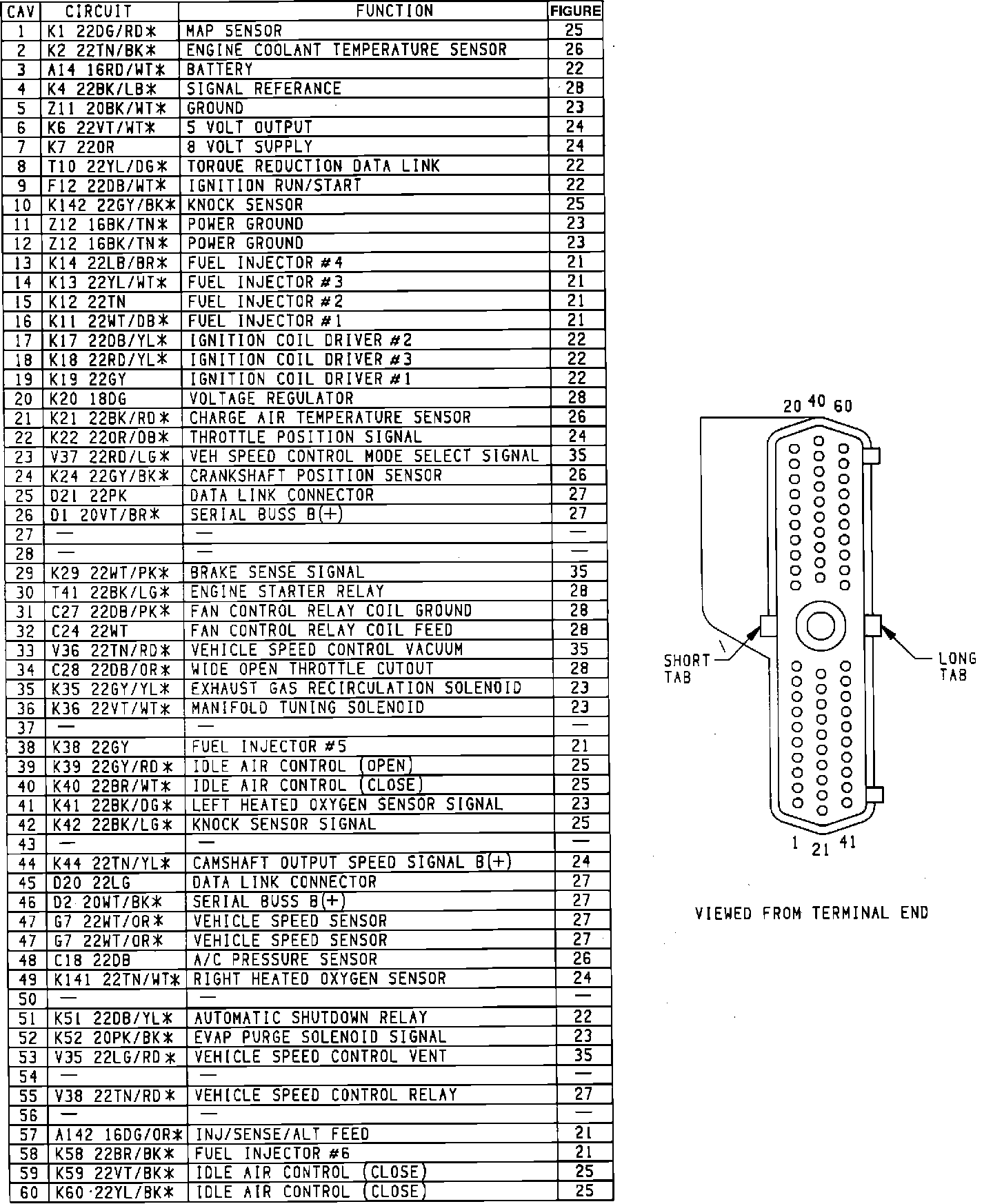

PCM Connector Pinout I.D.:
