Home >> Chrysler >> 1983 >> Lebaron Convertible L4-156 2.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components >> Timing Chain

Timing Chain

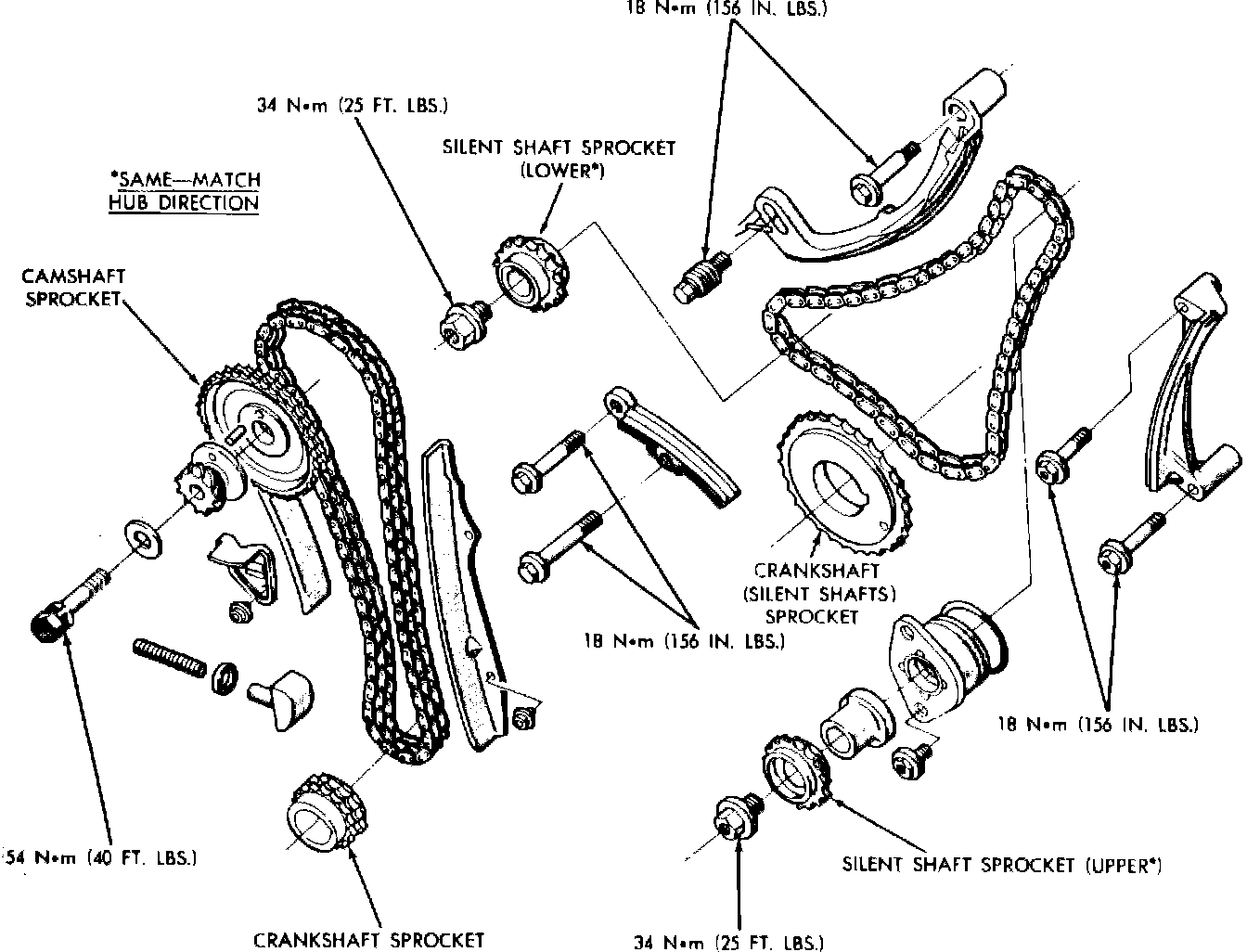

Timing gears & chain assembly. 1982---84:
