Telematics Communication Interface Control Module X2

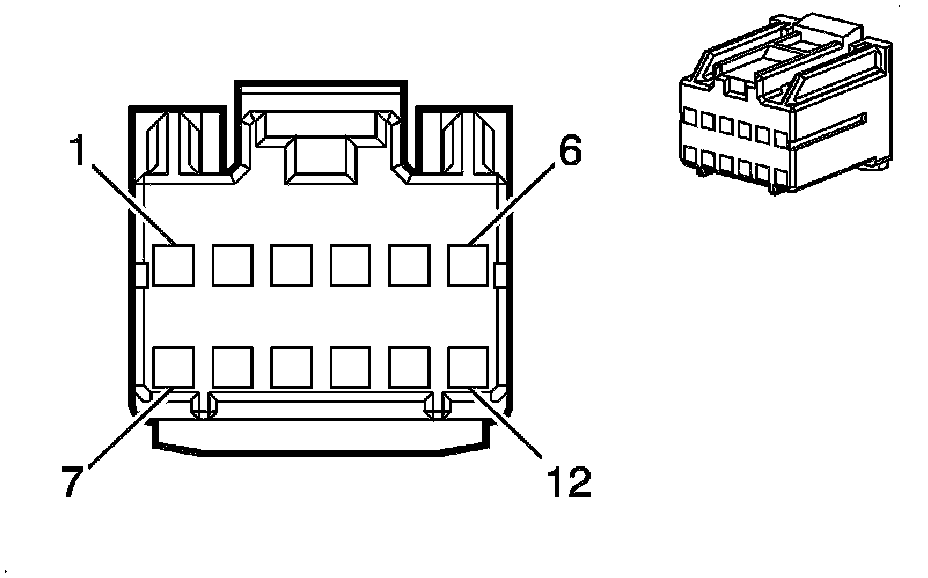

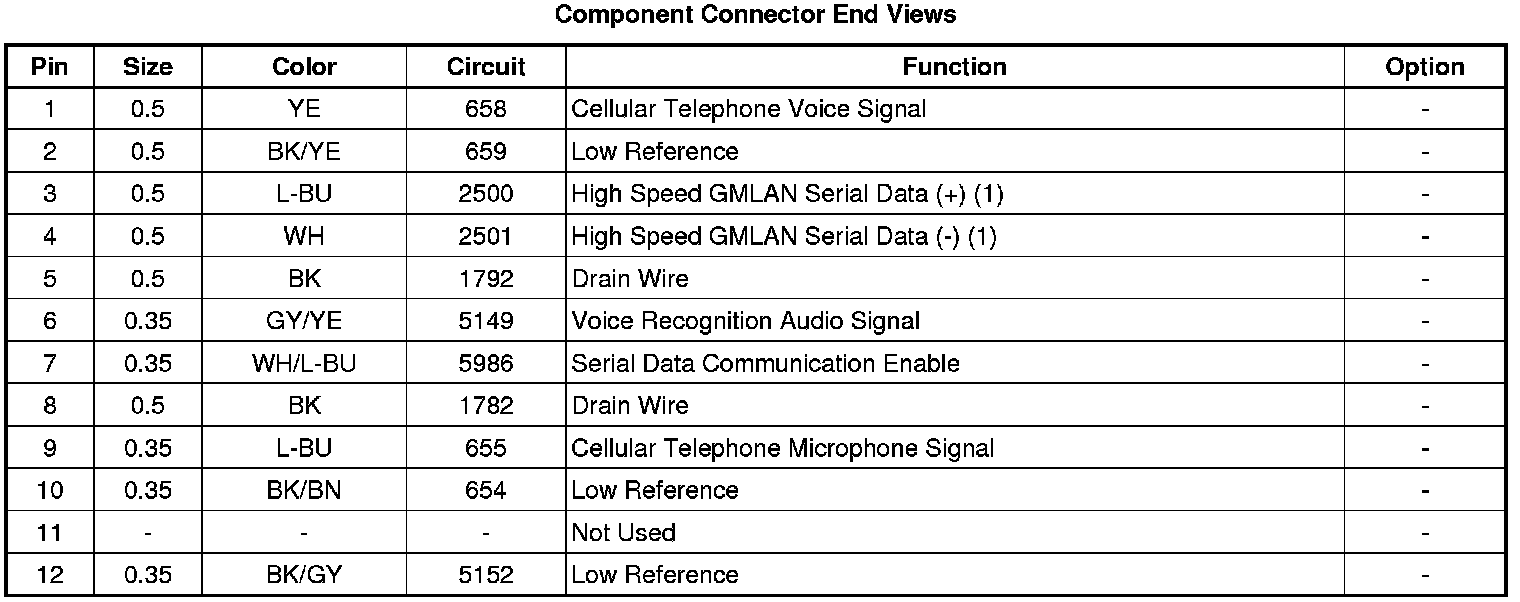

Component Connector End Views

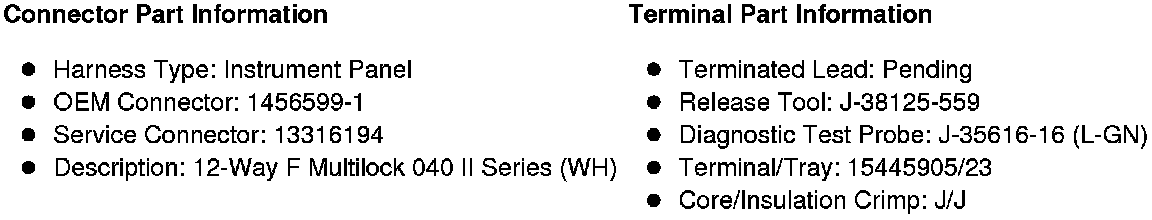

K73 Telematics Communication Interface Control Module X2
