Home >> Chevrolet >> 2013 >> Sonic L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations




Electrical Center Identification Views

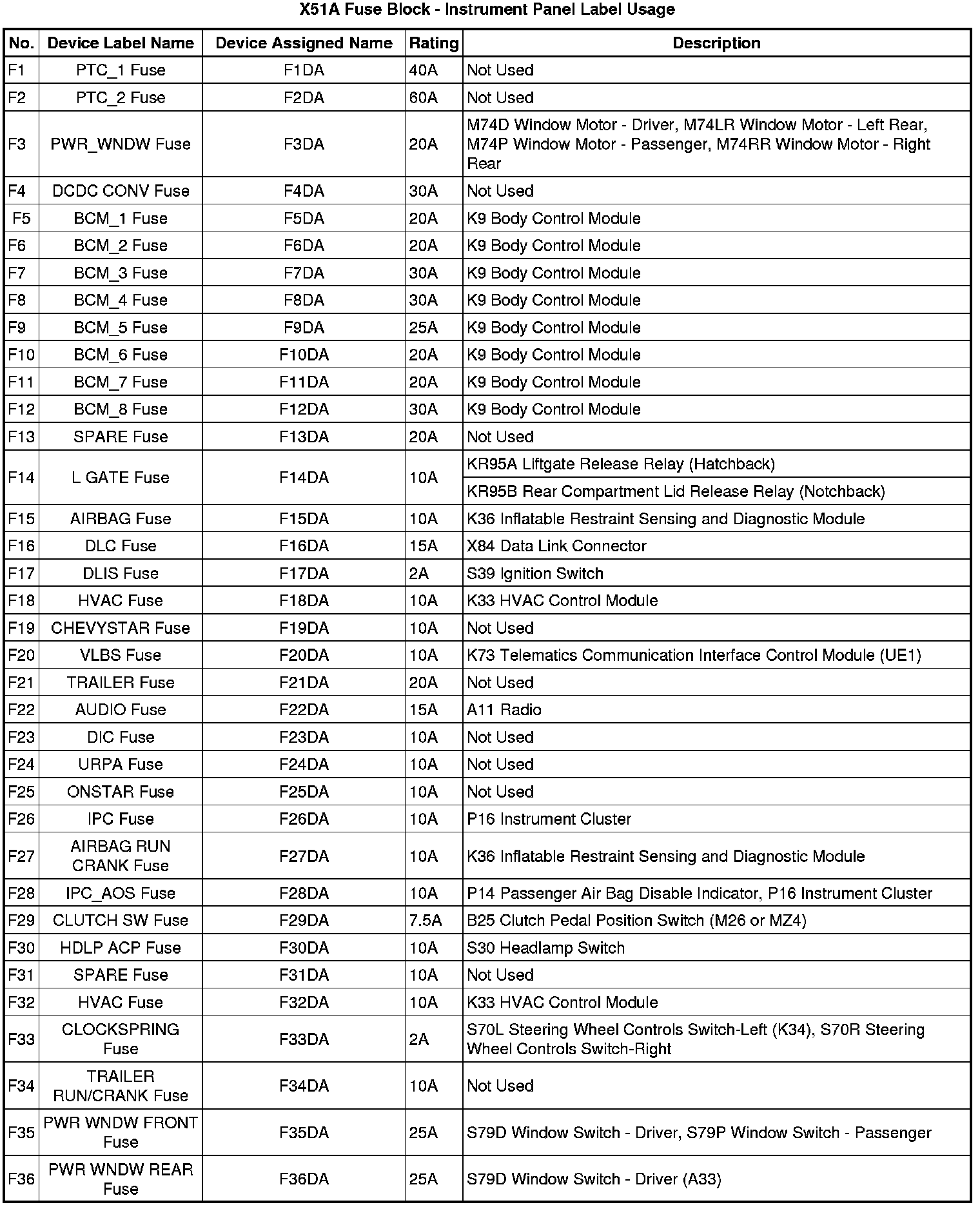

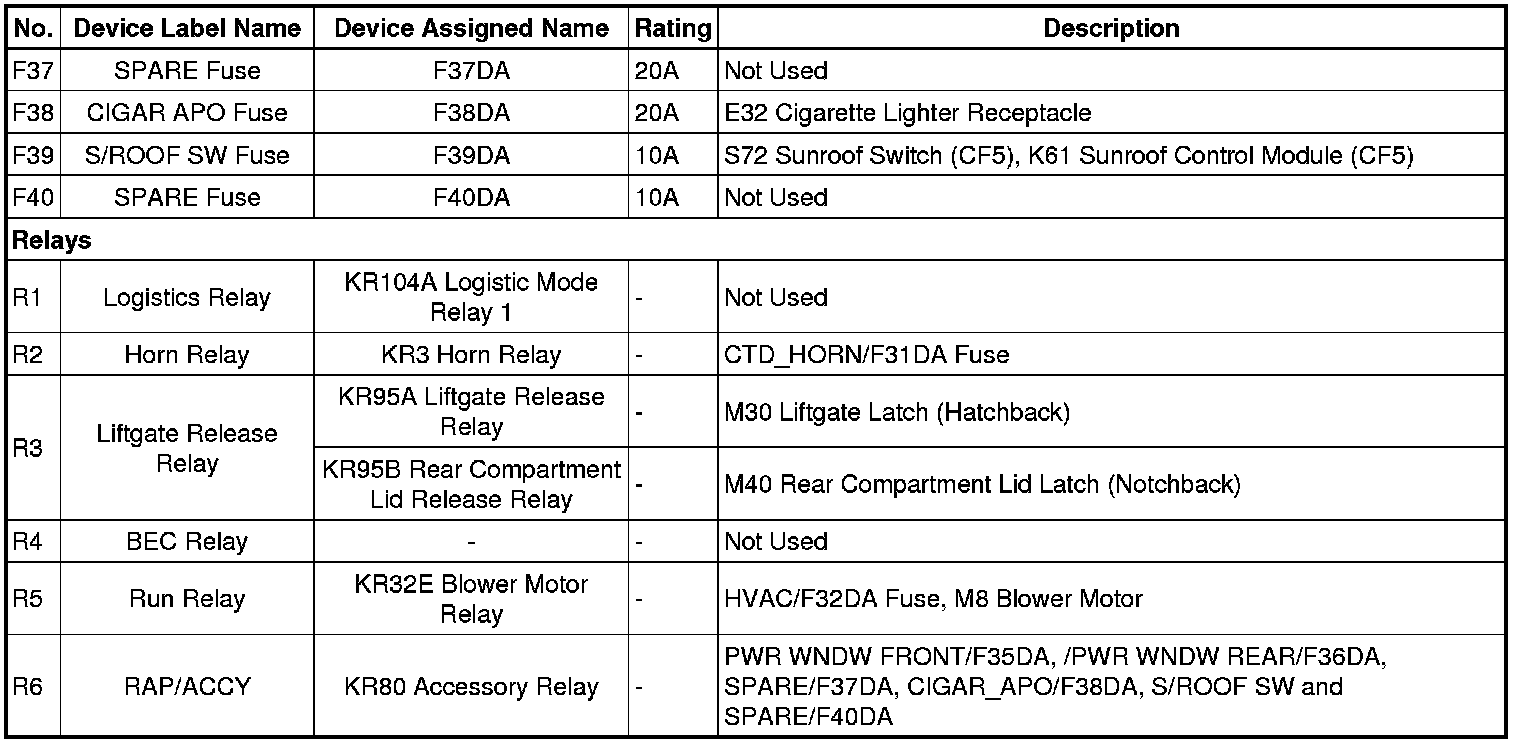

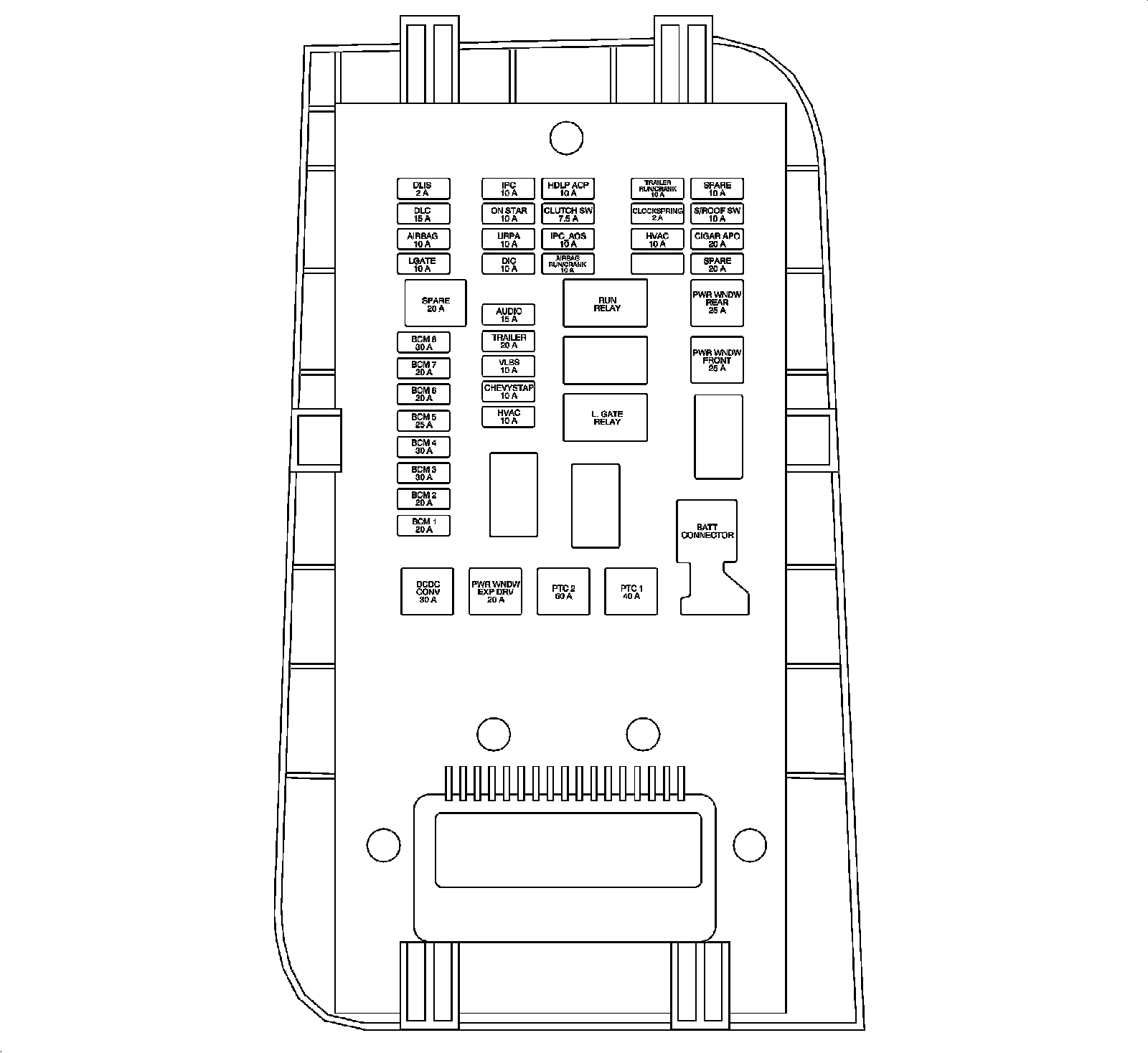

X51A Fuse Block - Instrument Panel Label
