Engine Control Module (ECM)




Front of Vehicle/Engine Compartment Component Views

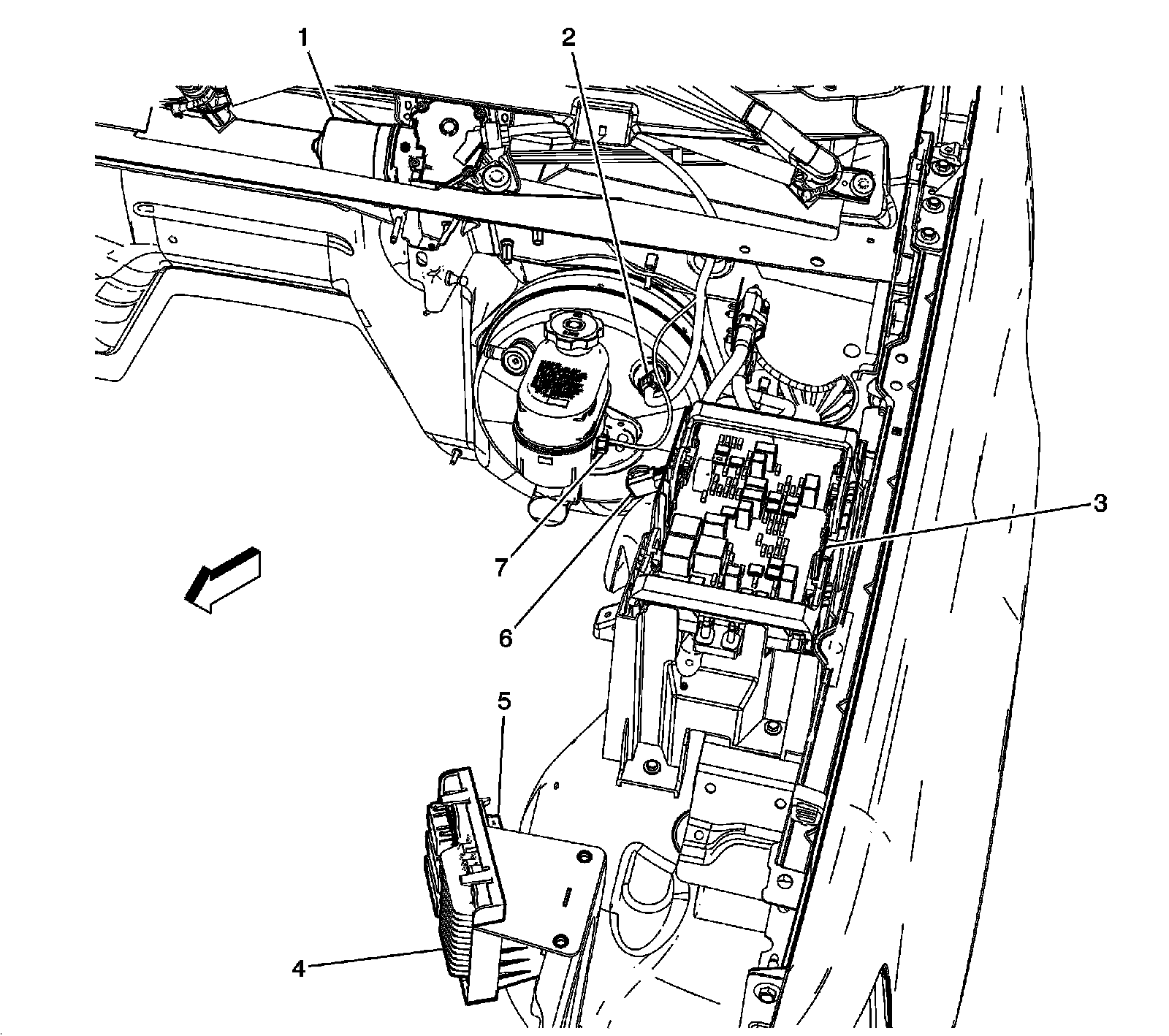

Left Rear of the Engine Compartment Components





1 - Windshield Wiper Motor

2 - Power Brake Booster (JL4)

3 - Fuse Block - Underhood

4 - Engine Control Module (ECM)

5 - Transmission Control Module (TCM) (M30, M70 or MW7)

6 - Brake Booster Vacuum Sensor (JL4)/Brake Master Cylinder Pressure Sensor (JL1)

7 - Brake Fluid Level Switch




Front of Vehicle/Engine Compartment Component Views

Left Rear of the Engine Compartment Components (except HP2)





1 - Windshield Wiper Motor

2 - Fuse Block - Underhood

3 - Engine Control Module (ECM)

4 - Transmission Control Module (TCM) (M30 or MW7)

5 - Brake Booster Vacuum Sensor (JL4 with 10 Series)/Brake Master Cylinder Pressure Sensor (JL1)

6 - Brake Fluid Level Switch
