Behind the I/P Components

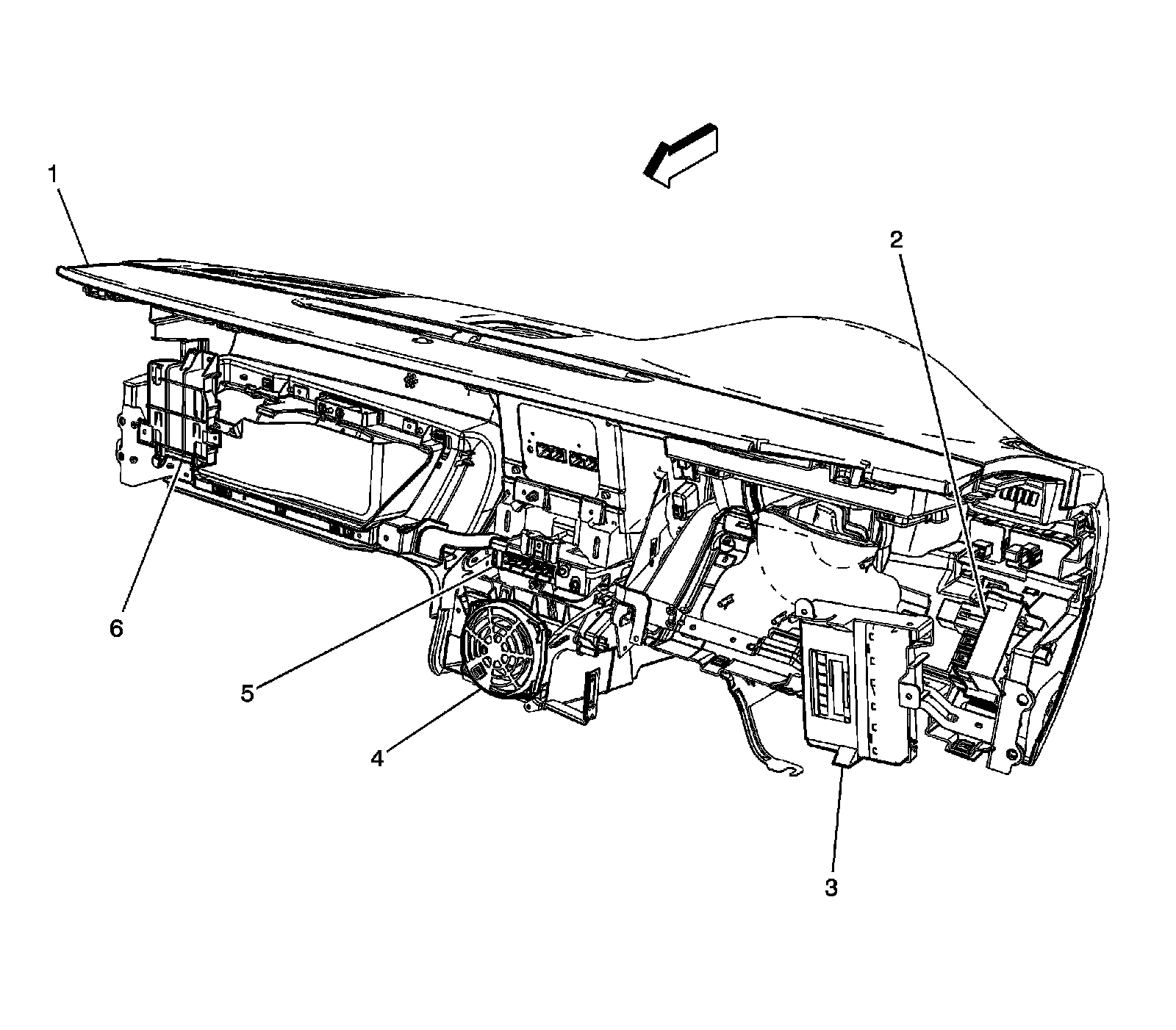

Instrument Panel/Center Console Component Views

Behind the I/P Components





1 - I/P Trim

2 - Fuse Block - I/P

3 - Body Control Module (BCM)

4 - Speaker - Subwoofer (UQA)

5 - Vehicle Communication Interface Module (VCIM) (UE1 with YE9)

6 - Digital Radio Receiver (U2K)
