Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

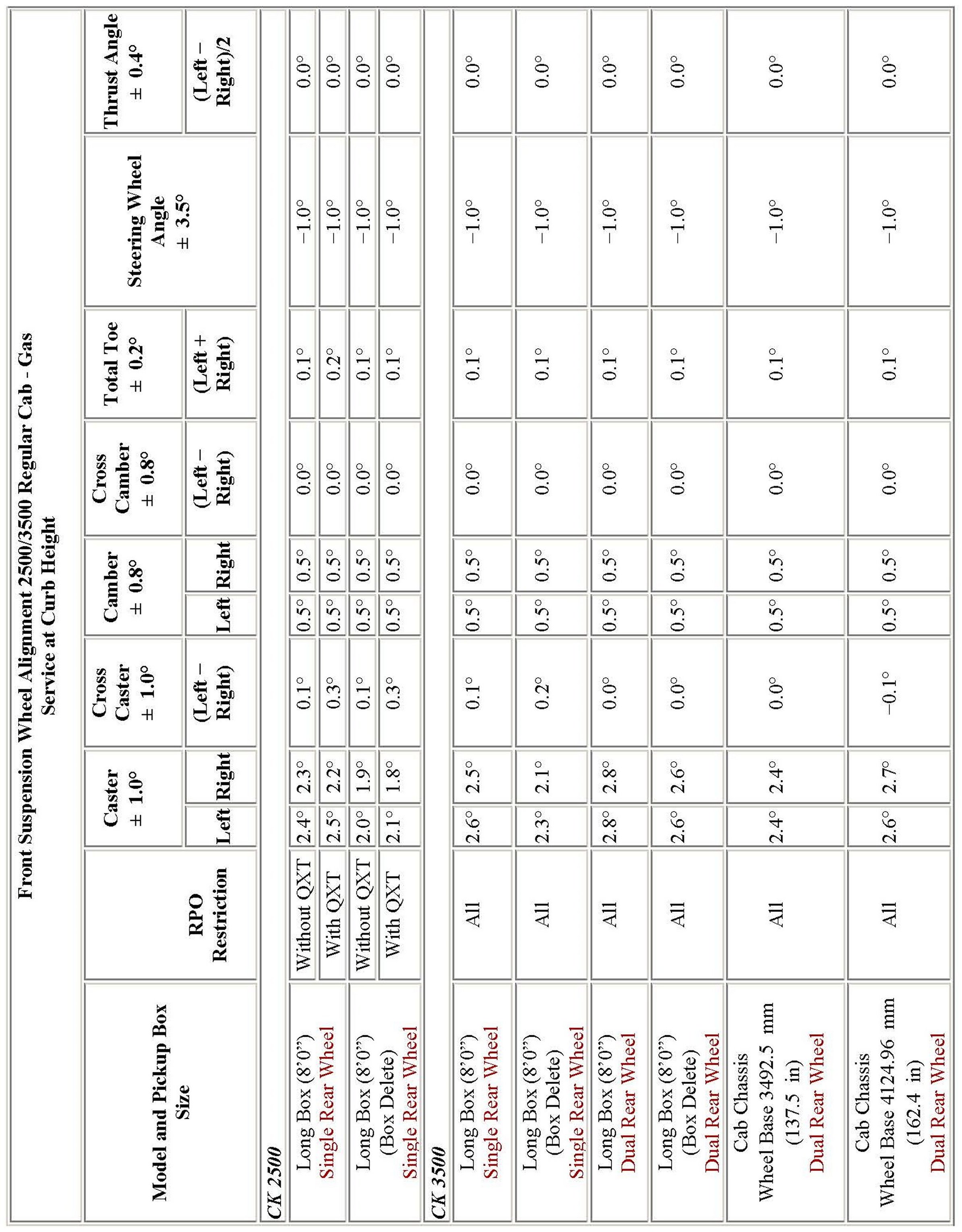

2500 and 3500 Regular Cab:

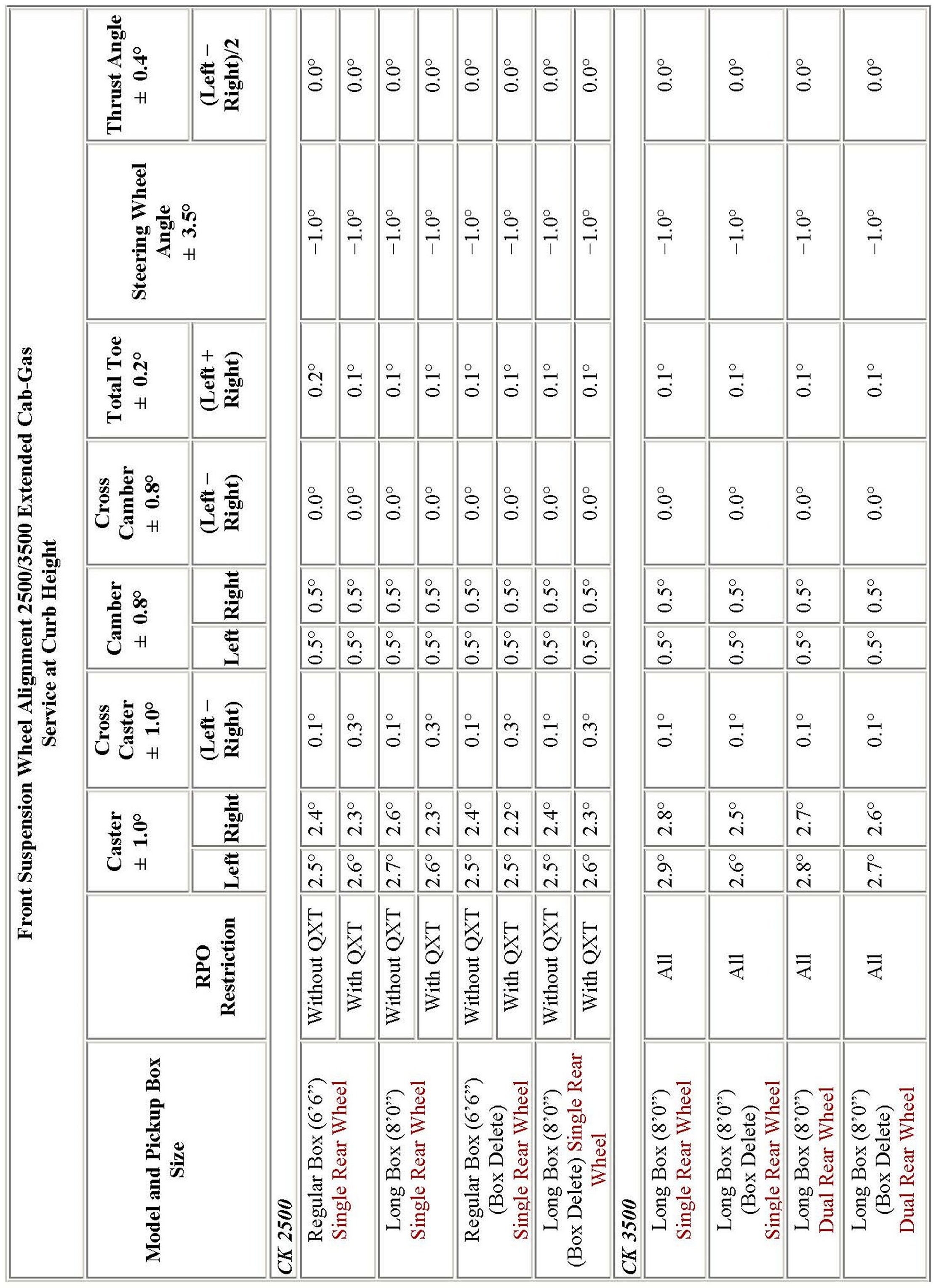

2500 and 3500 Extended Cab:

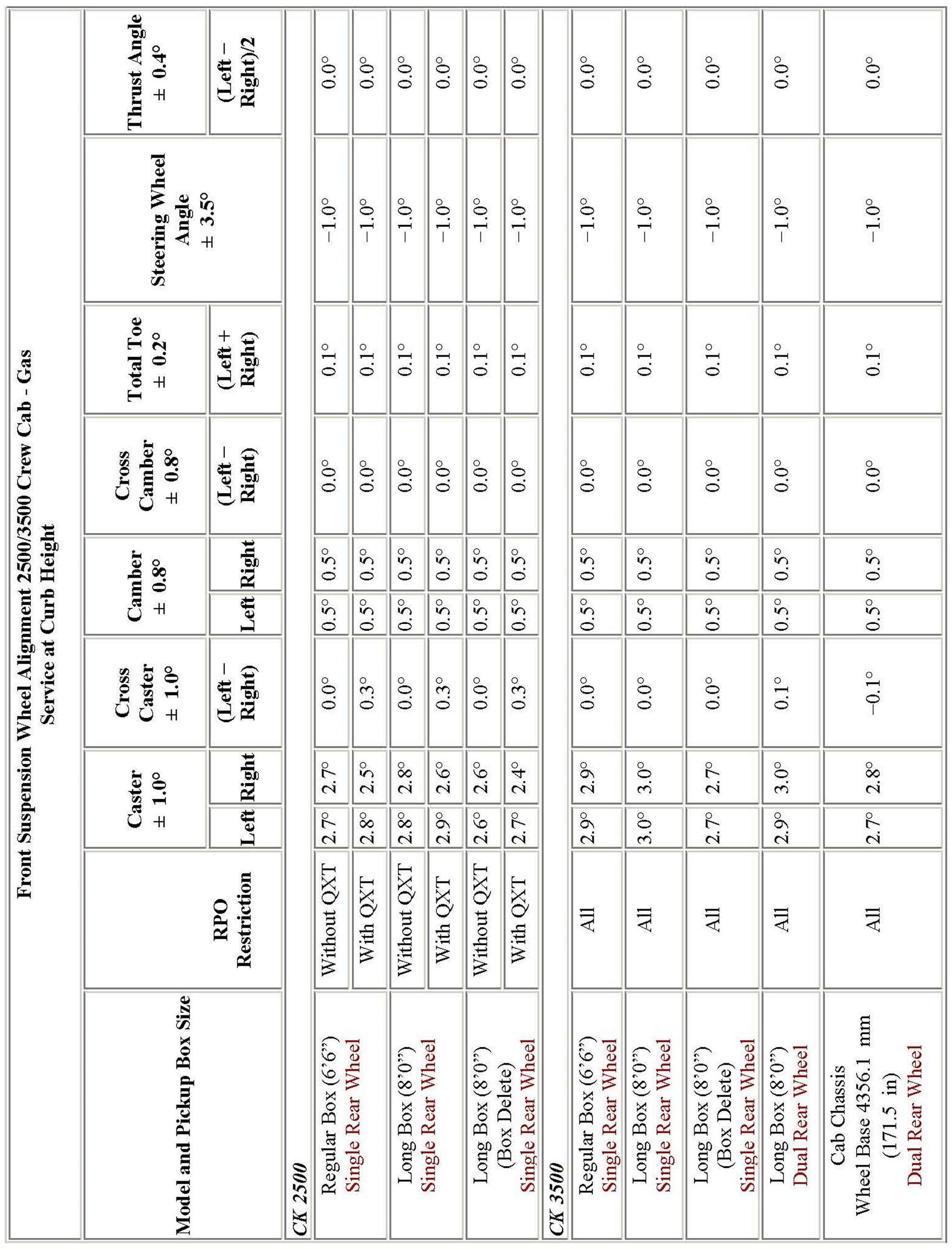

2500 and 3500 Crew Cab:

Alignment Condition: Full tank of fuel, no passengers and placed on flat level surface.
