Parking Brake Control Module
Parking Brake Control Module

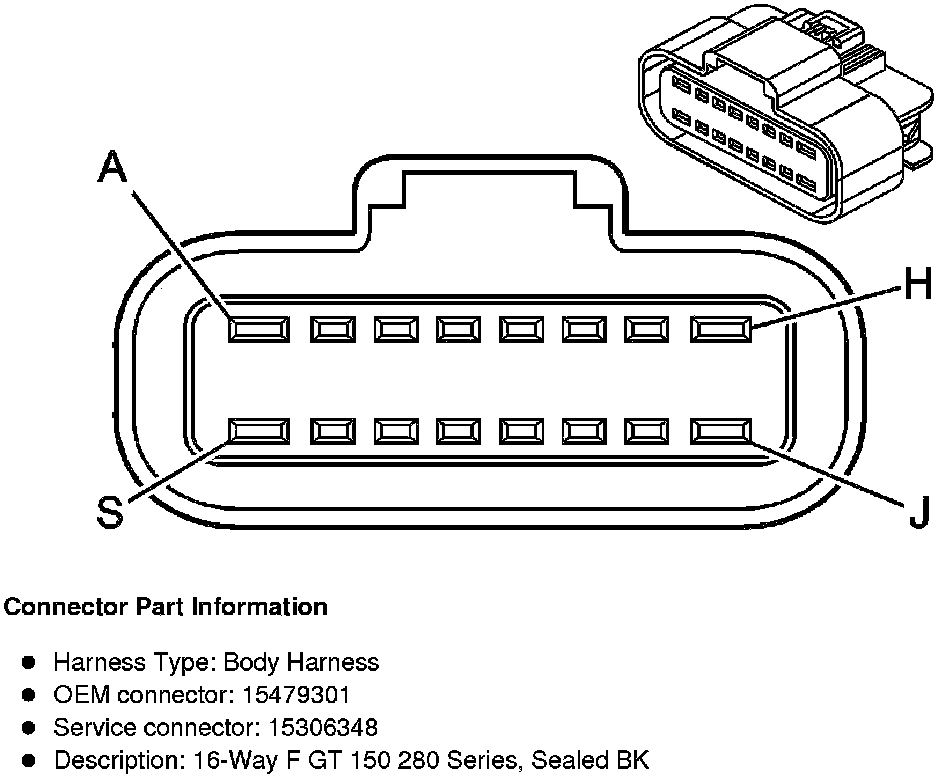

Component Connector End Views
K83

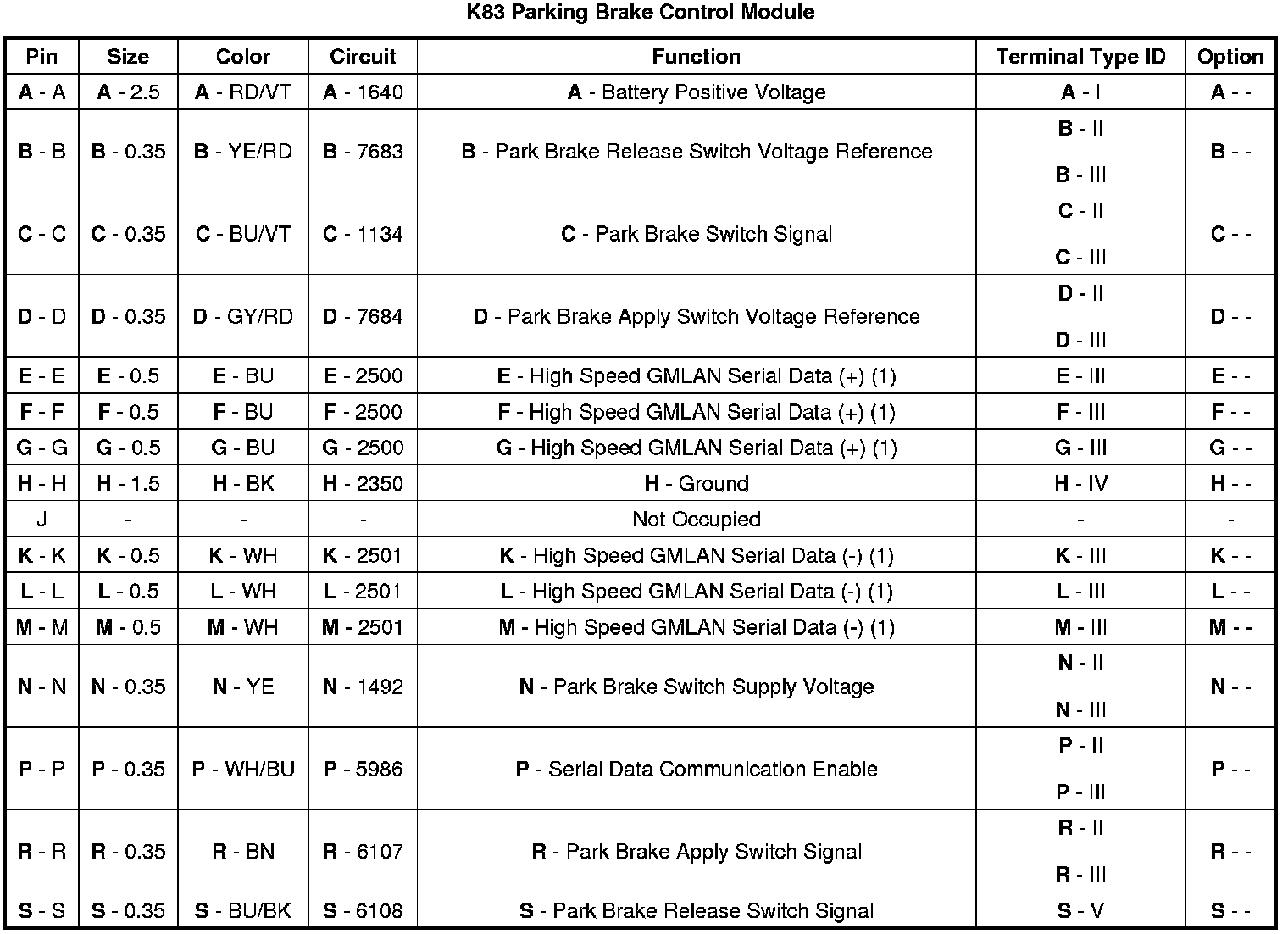

Parking Brake Control Module
