lemon-mirror
:
Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module

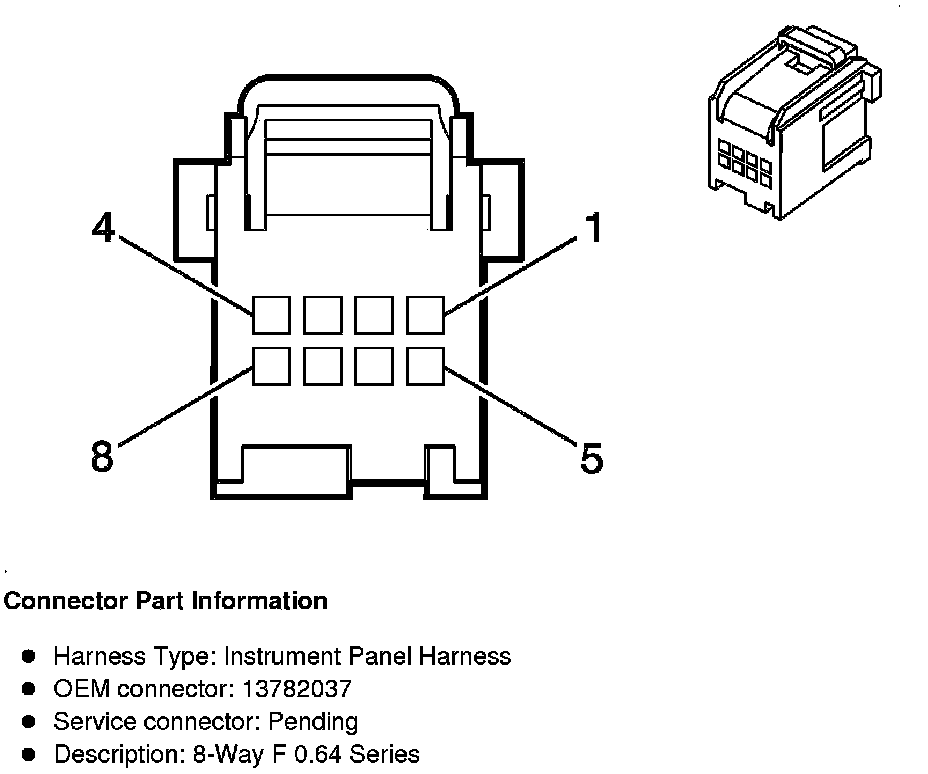

Component Connector End Views

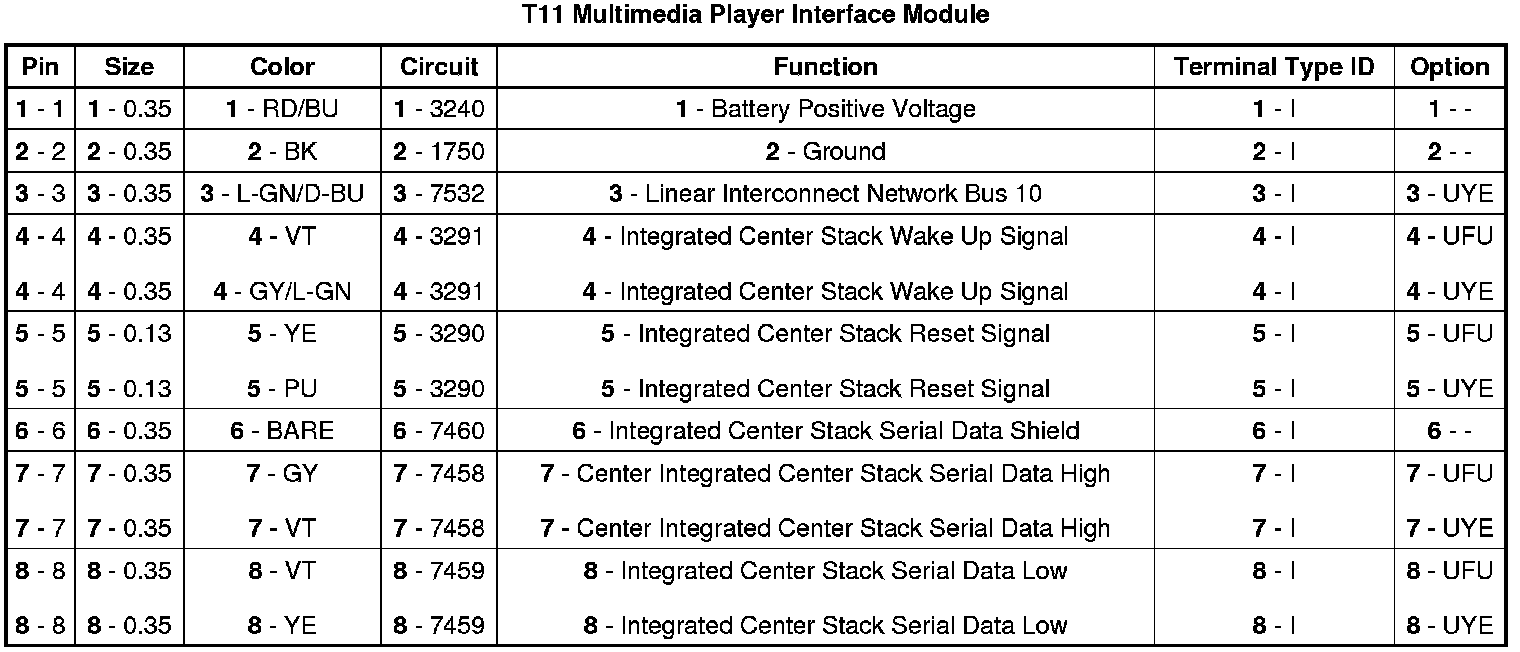

T11 Multimedia Player Interface Module
