Starter/Generator Control Module X4 (HP6)

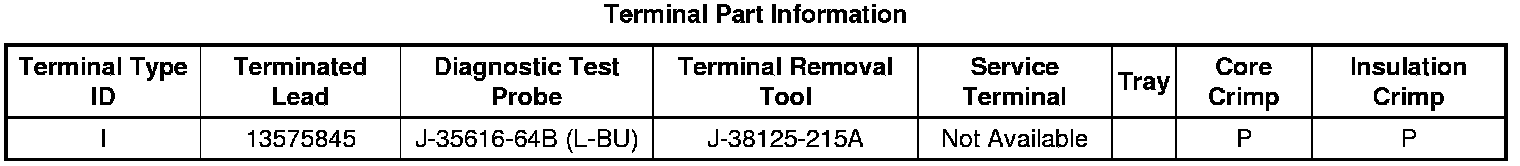

Component Connector End Views

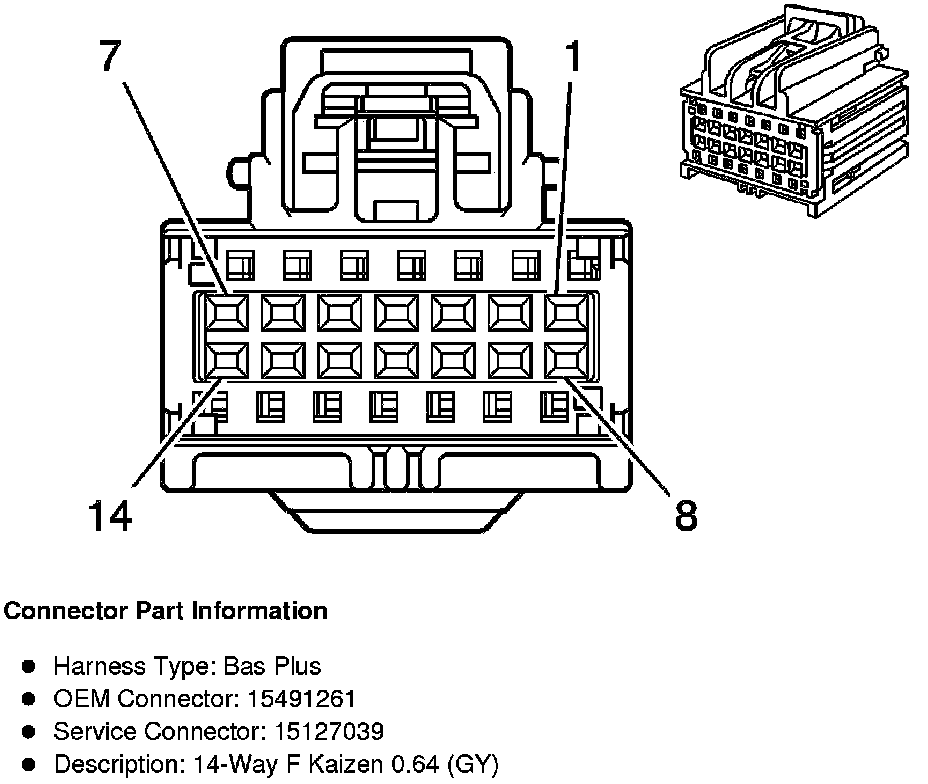

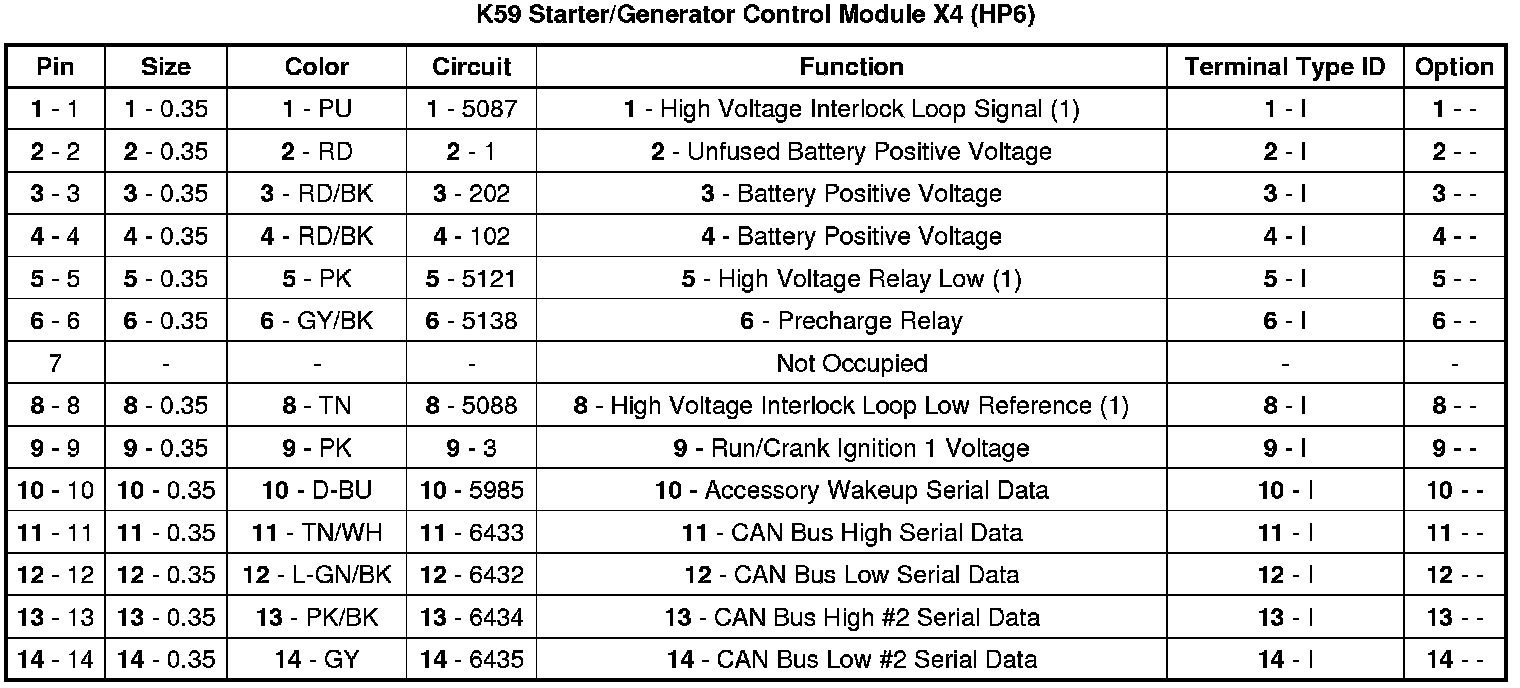

K59 Starter/Generator Control Module X4 (HP6)
