Battery Energy Control Module X2 (HP6)

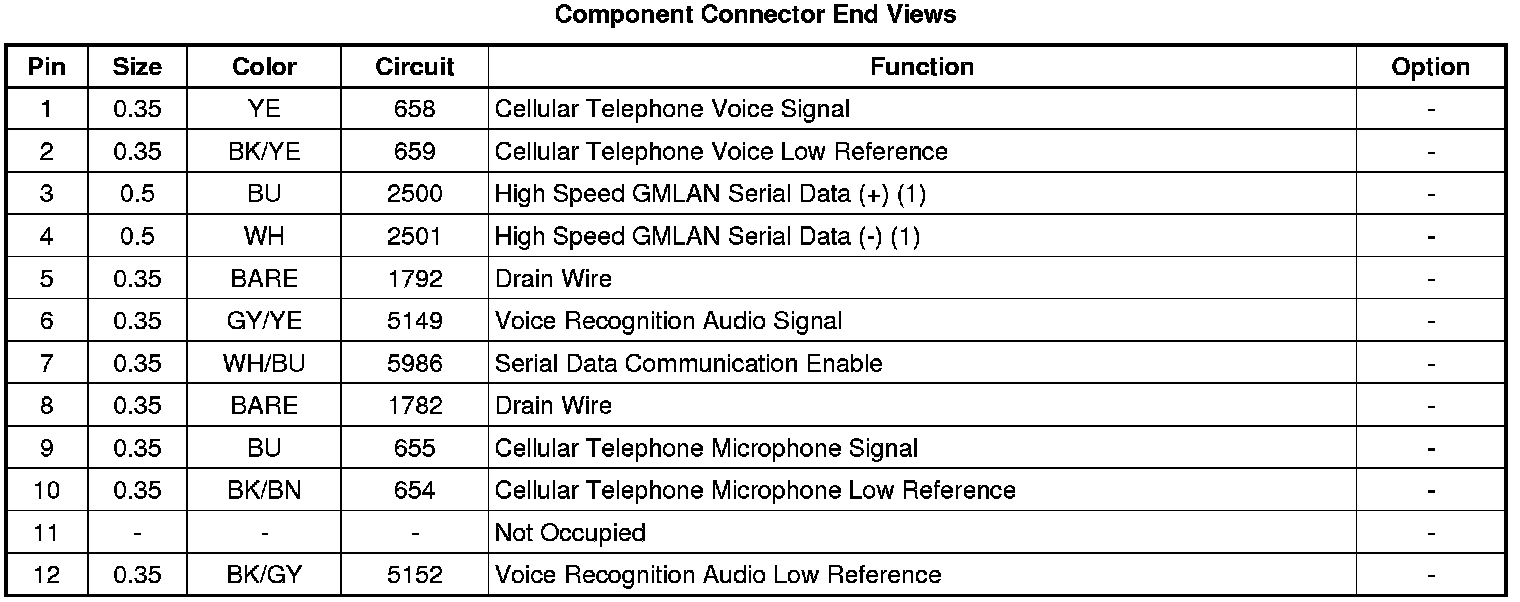

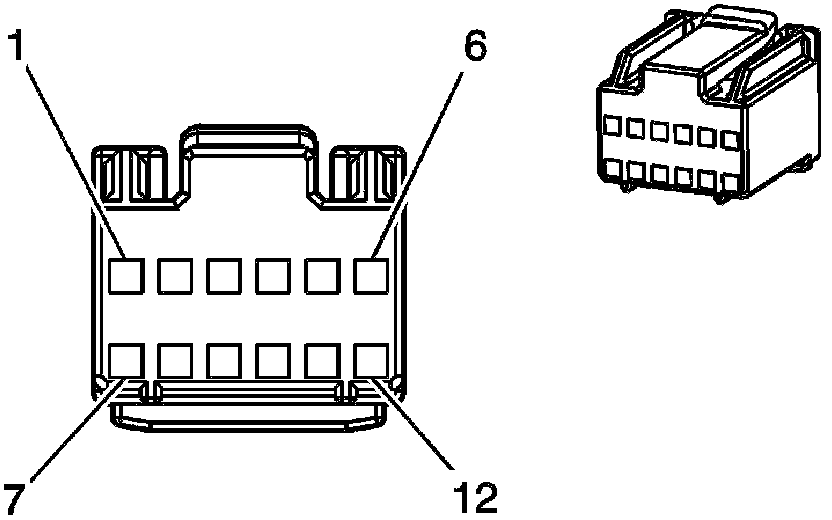

Component Connector End Views

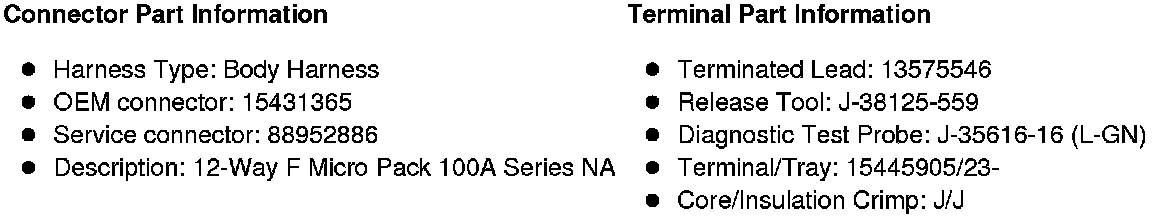

K16 Battery Energy Control Module X2 (HP6)
