Ignition Control Module
Ignition Control Module

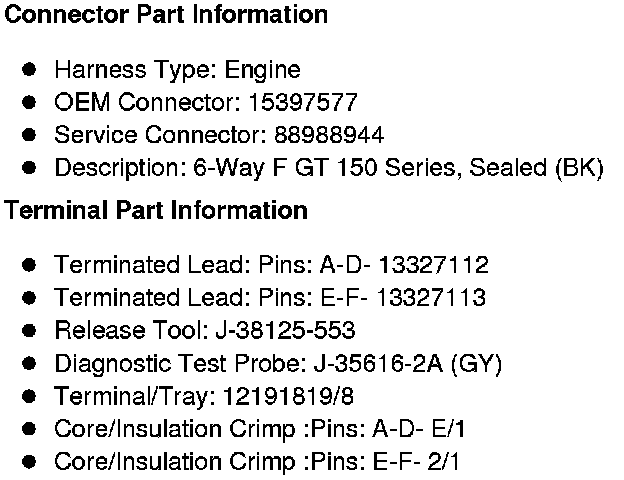

Component Connector End Views

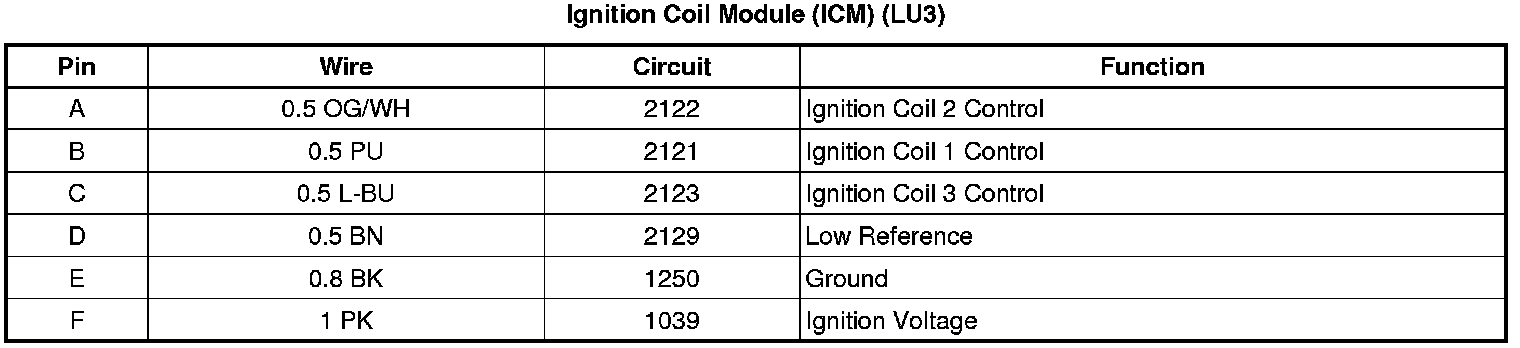

Ignition Coil Module (ICM) (LU3)
