Timing Cover

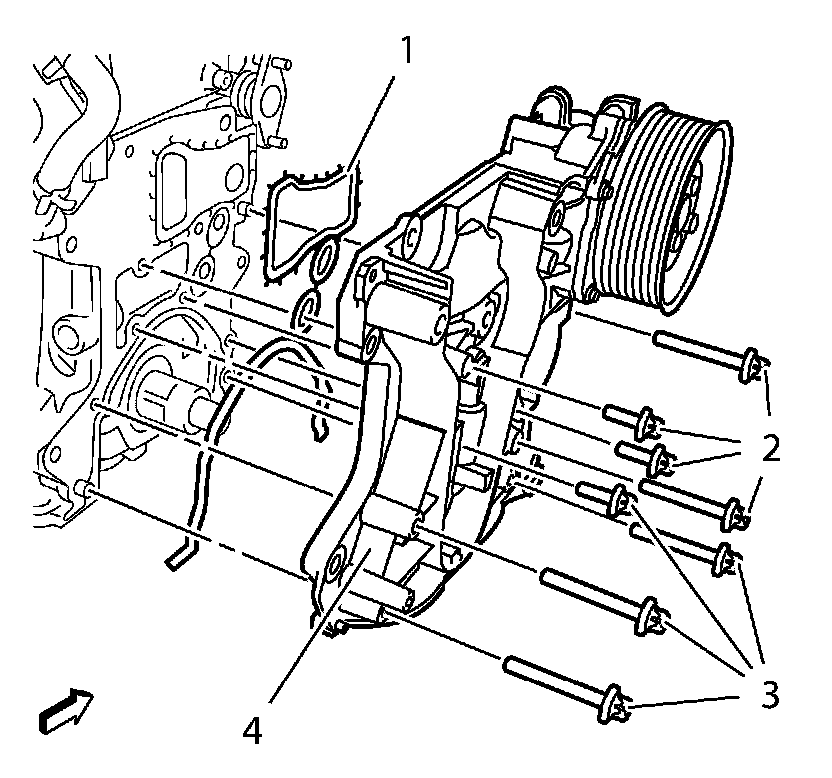

8 engine front cover bolts (2, 3).
engine front cover (4).
engine front cover seal (1).







Install a NEW engine front cover seal (1).
Install the engine front cover (4).
Install the 8 engine front cover bolts (2, 3) and tighten to 20 Nm (15 lb ft).
