Home >> Chevrolet >> 2013 >> Corvette V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column Control Module >> Steering Column Lock Control Module X1 (USL)

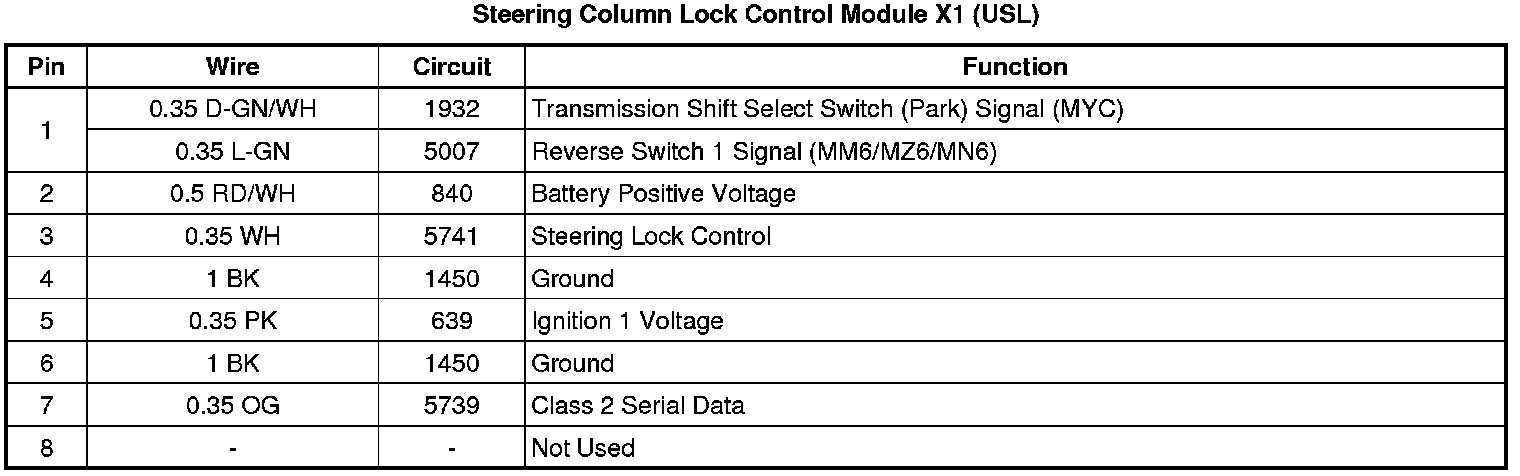

Steering Column Lock Control Module X1 (USL)

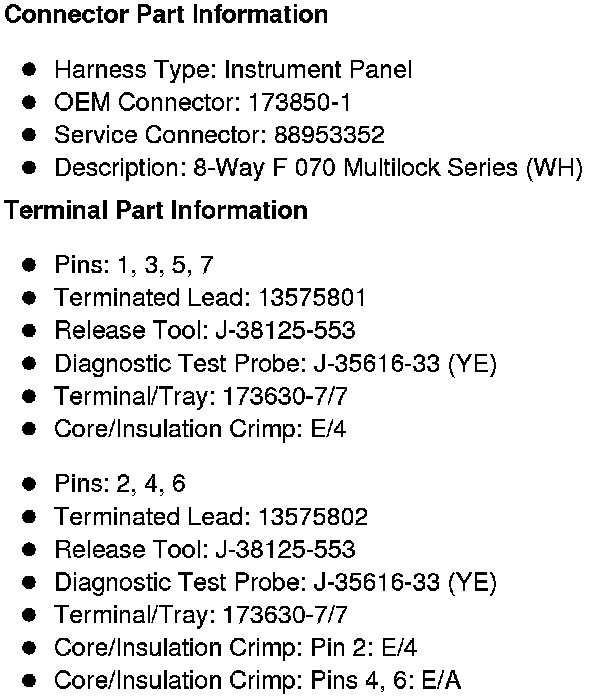

Component Connector End Views

Steering Column Lock Control Module X1 (USL)
