Engine Control Module (ECM) X3 (LS9)
Engine Control Module (ECM) X3 (LS9)

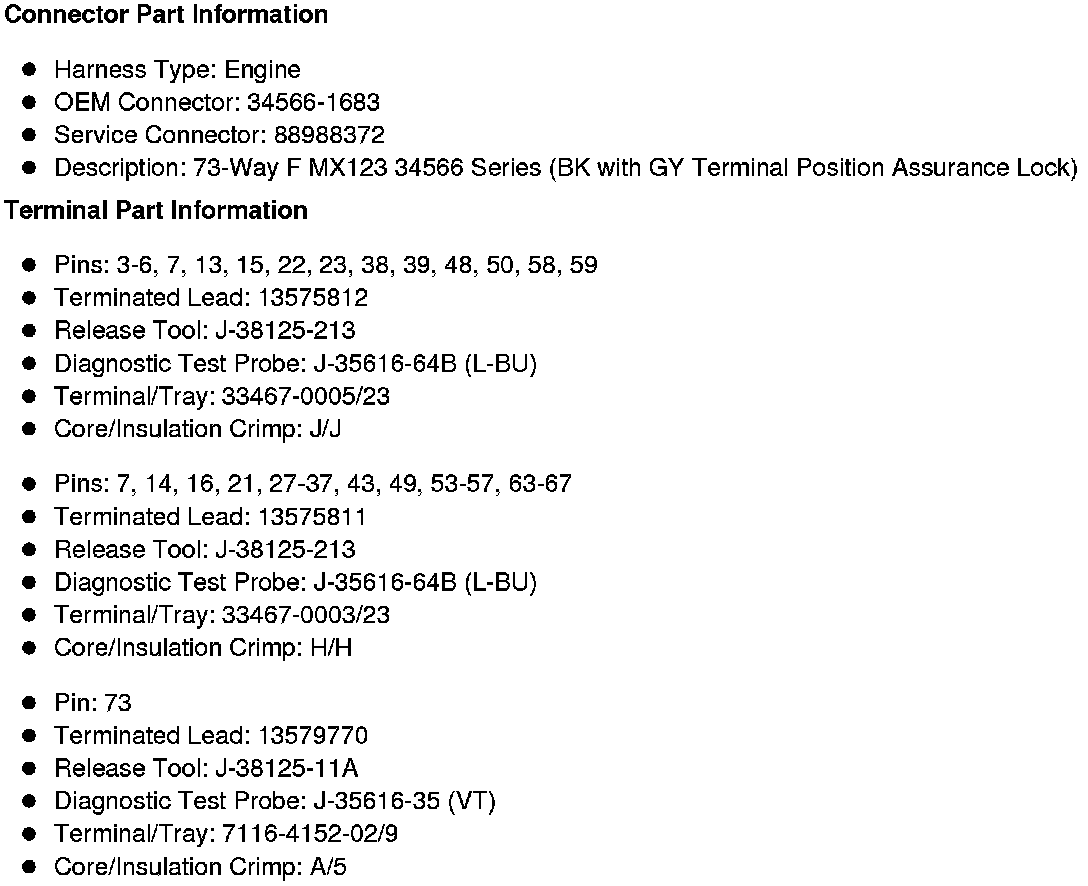

Component Connector End Views

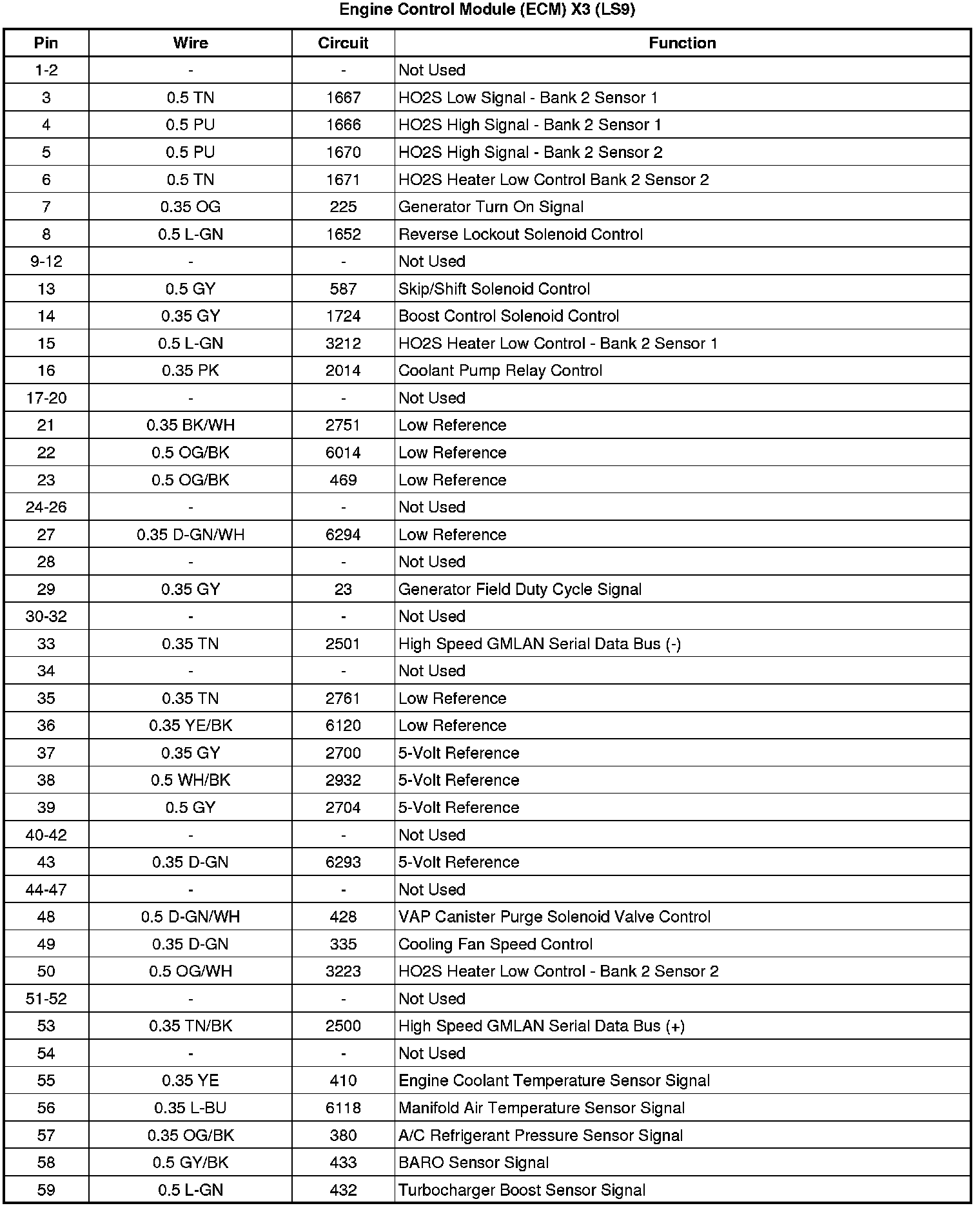

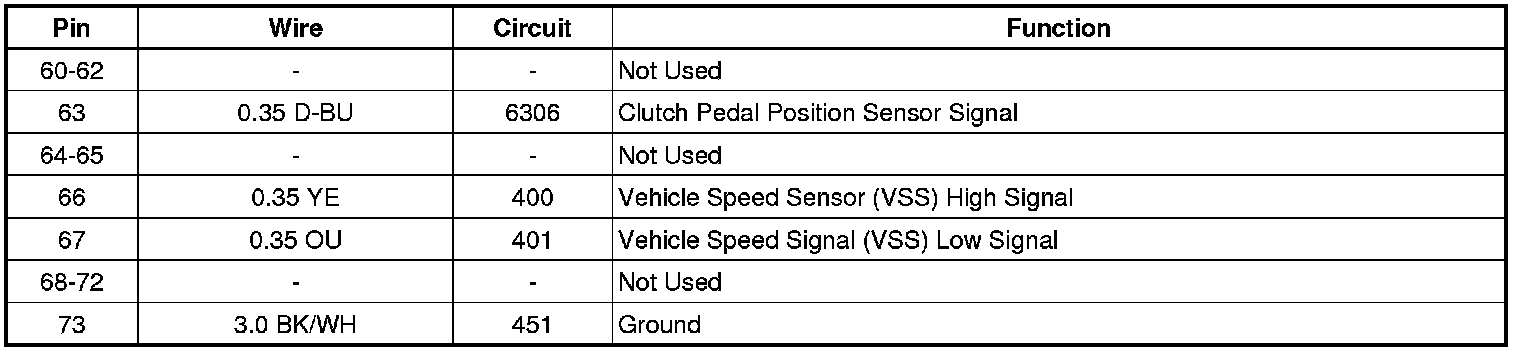

Engine Control Module (ECM) X3 (LS9)
