Chevrolet
>>
2013
>>
Camaro V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Control Module
>>
Electric Power Steering Control Module X1
Electric Power Steering Control Module X1

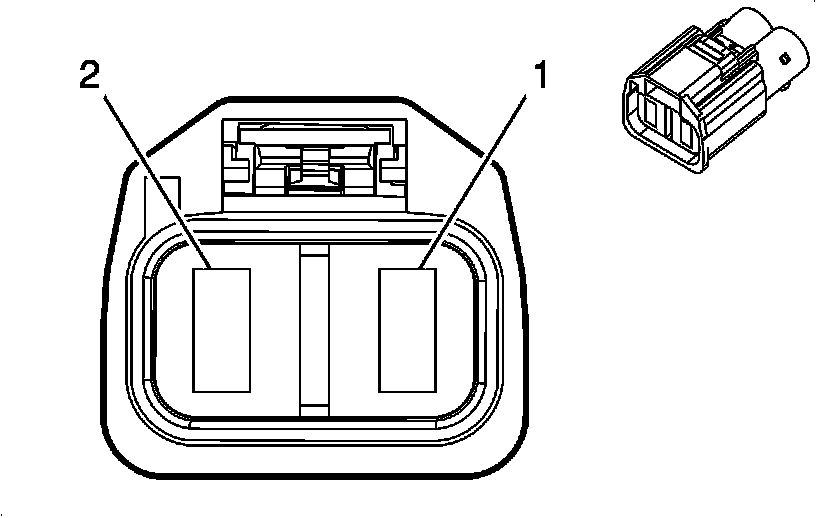

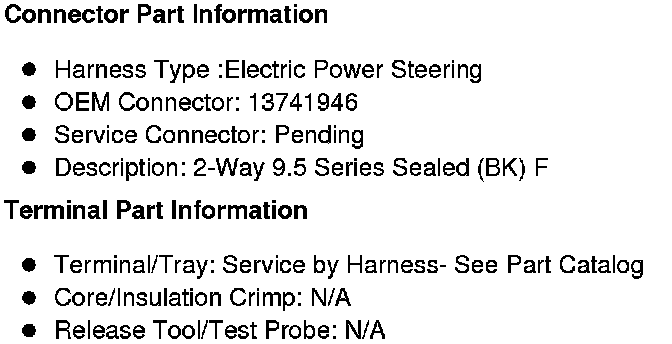

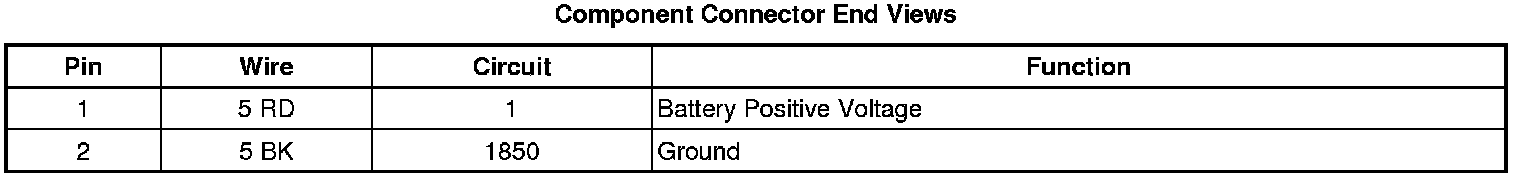

Component Connector End Views
K43 Electric Power Steering
Control Module
X1
