14V Power Module Jumper Connector
14V Power Module Jumper Connector
Component Connector End Views

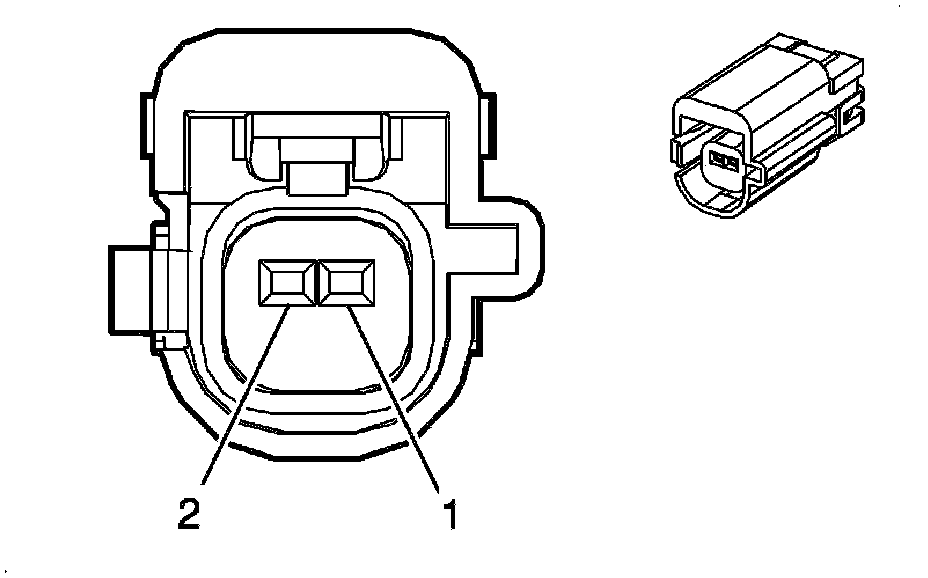

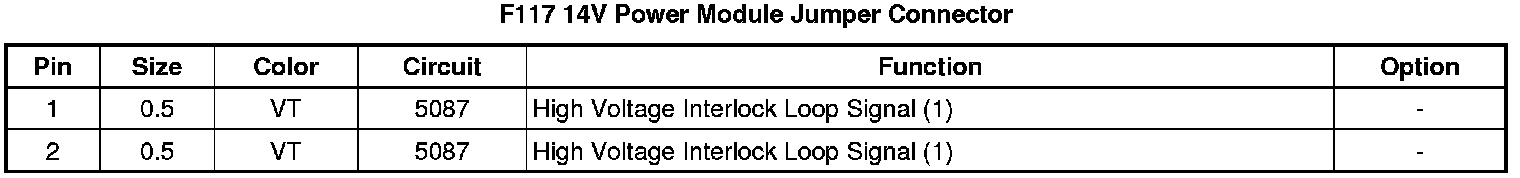

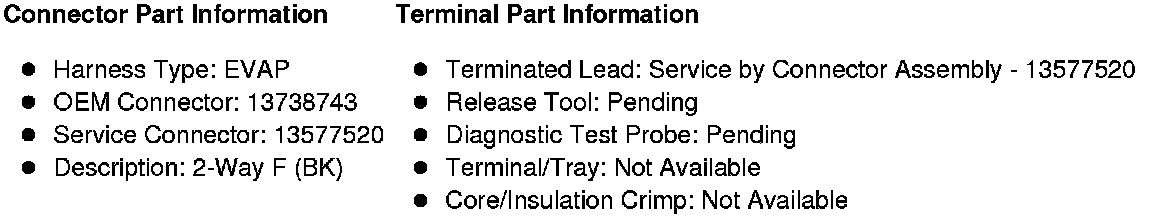

F117 14V Power Module Jumper Connector
