Parking Brake Control Module
Parking Brake Control Module

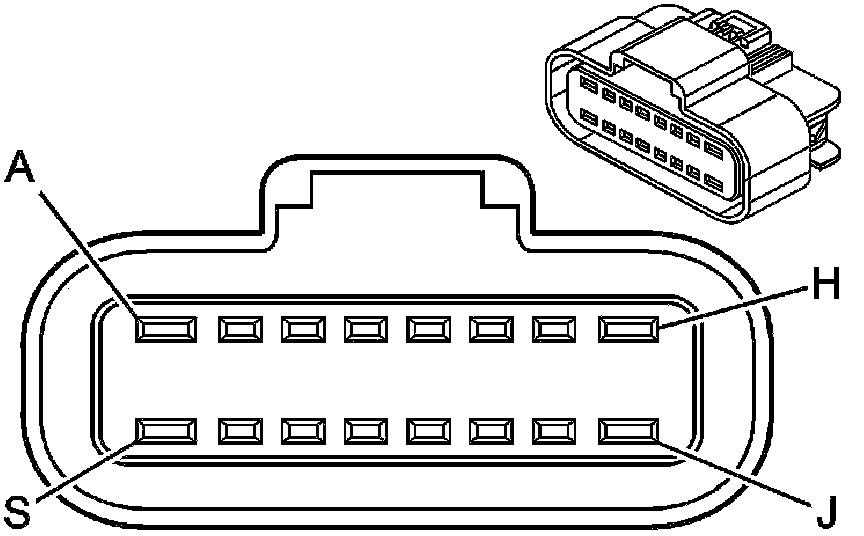

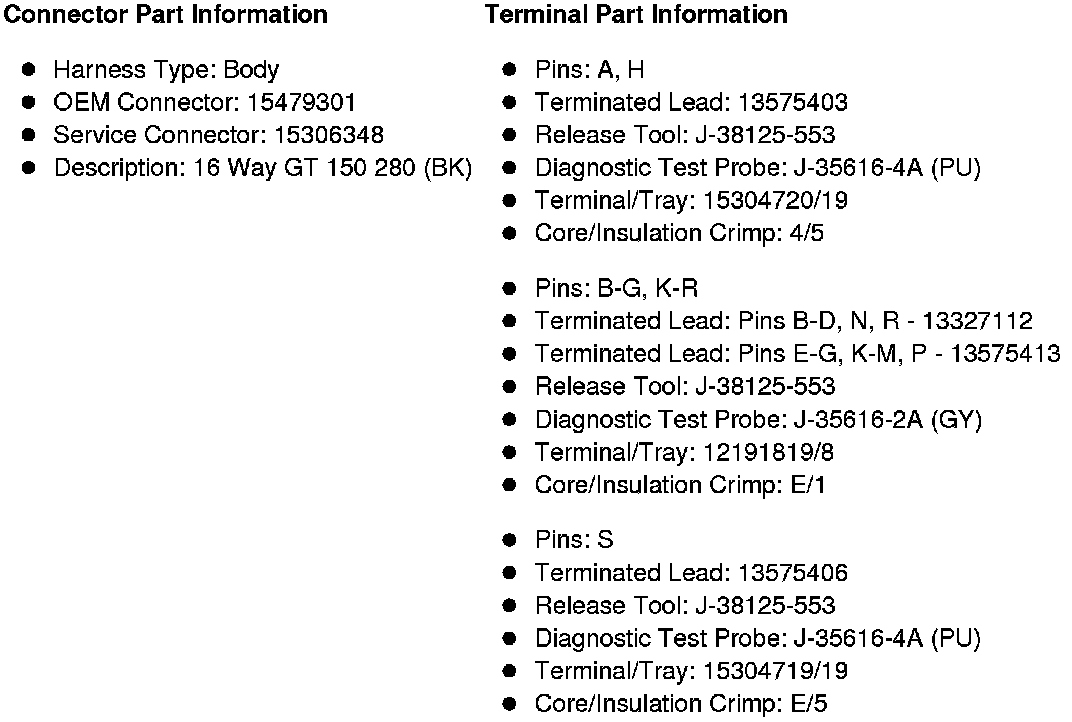

Component Connector End Views

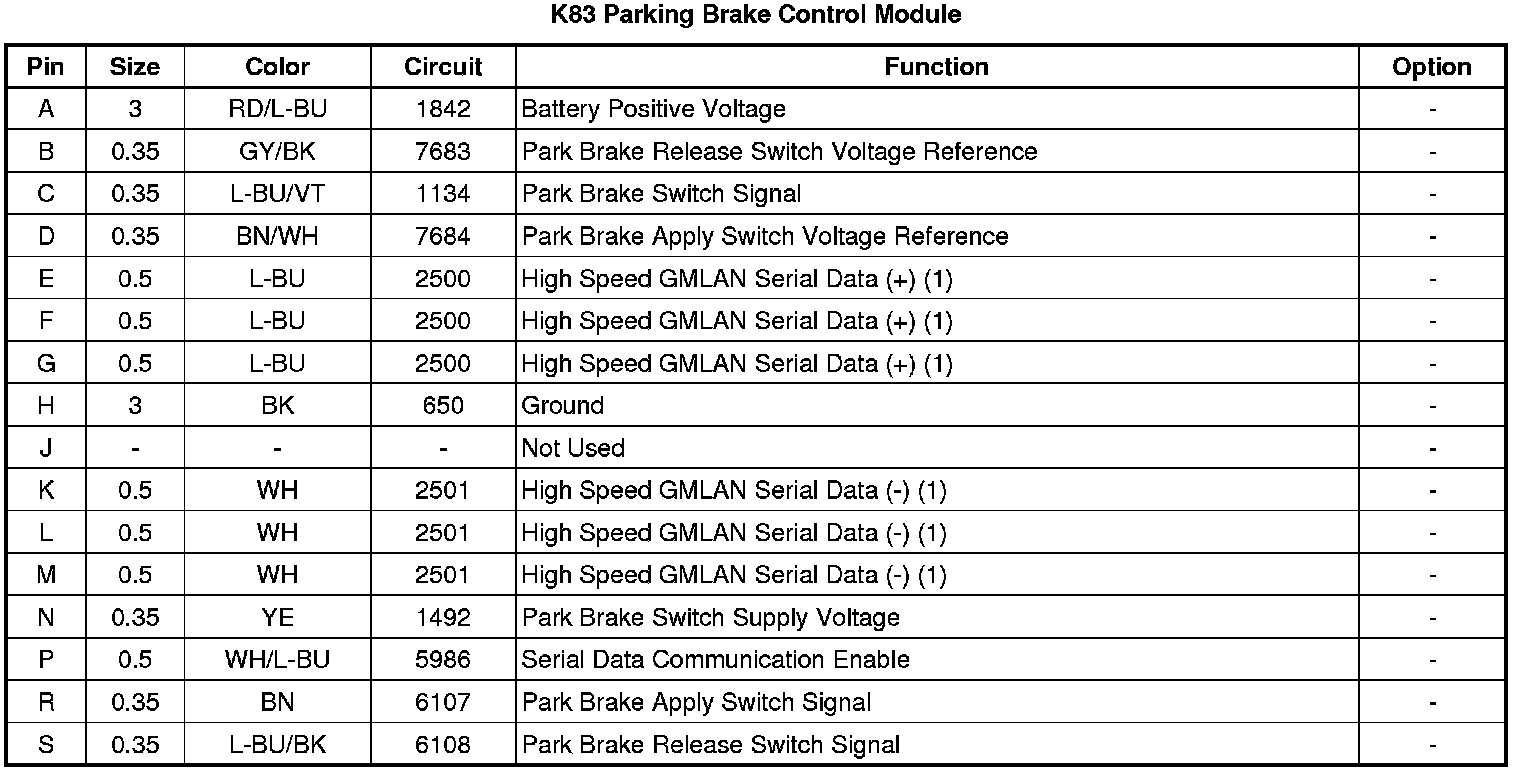

K83
Parking Brake Control Module
