Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance Sensor >> Front Object Sensor - Left Middle

Front Object Sensor - Left Middle

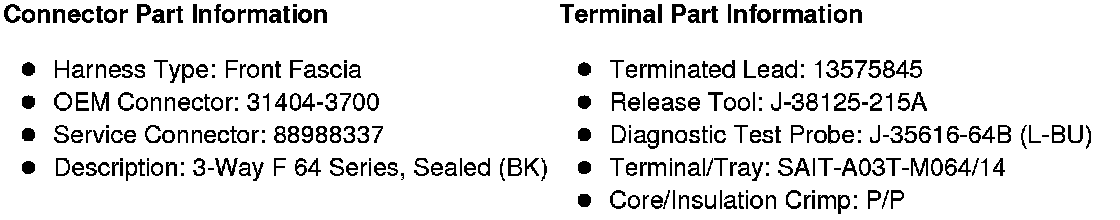

Component Connector End Views

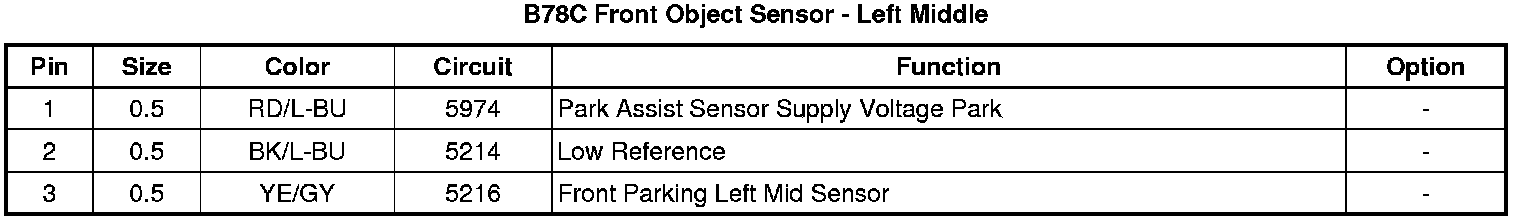

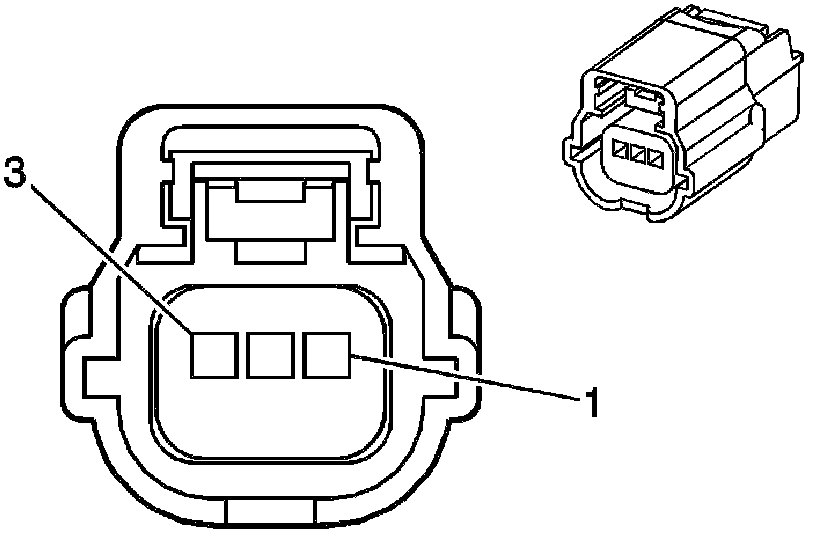

B78C Front Object Sensor - Left Middle
