Telematics Communication Interface Module X2

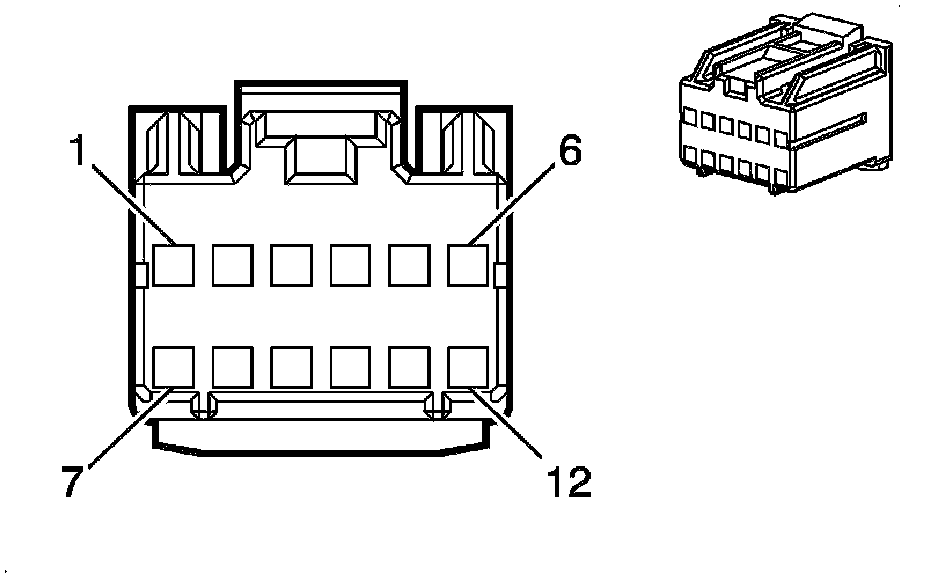

Component Connector End Views

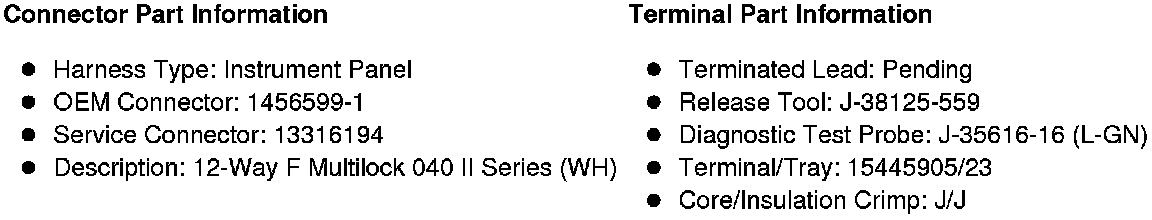

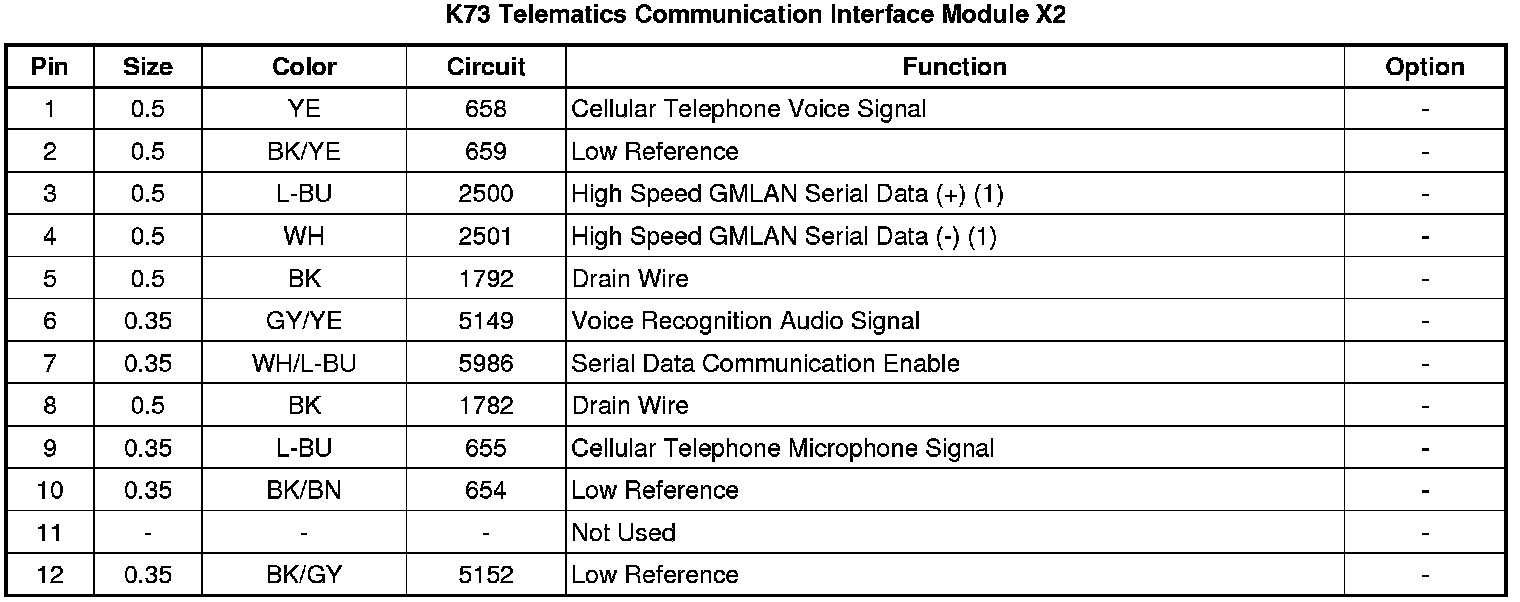

K73 Telematics Communication Interface Module X2
