Throttle Position Sensor: Diagrams

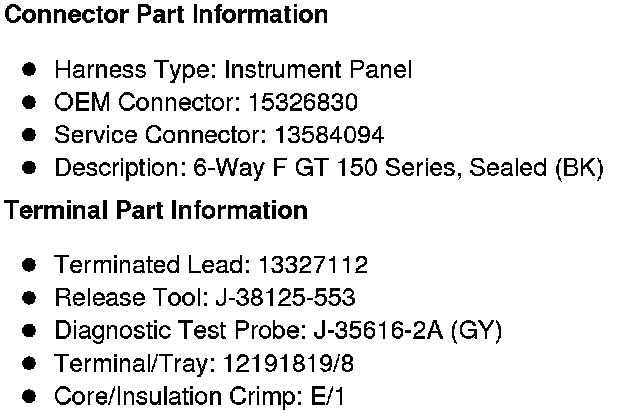

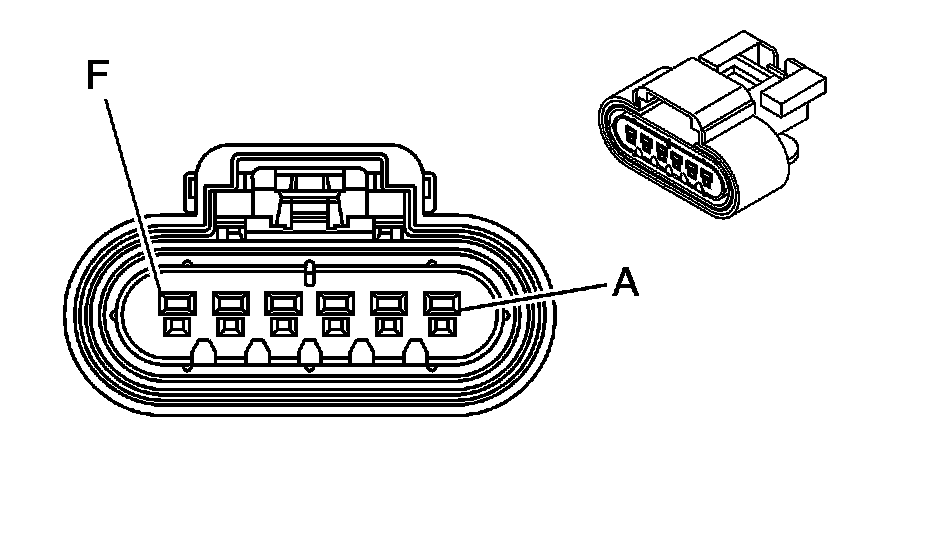

Component Connector End Views

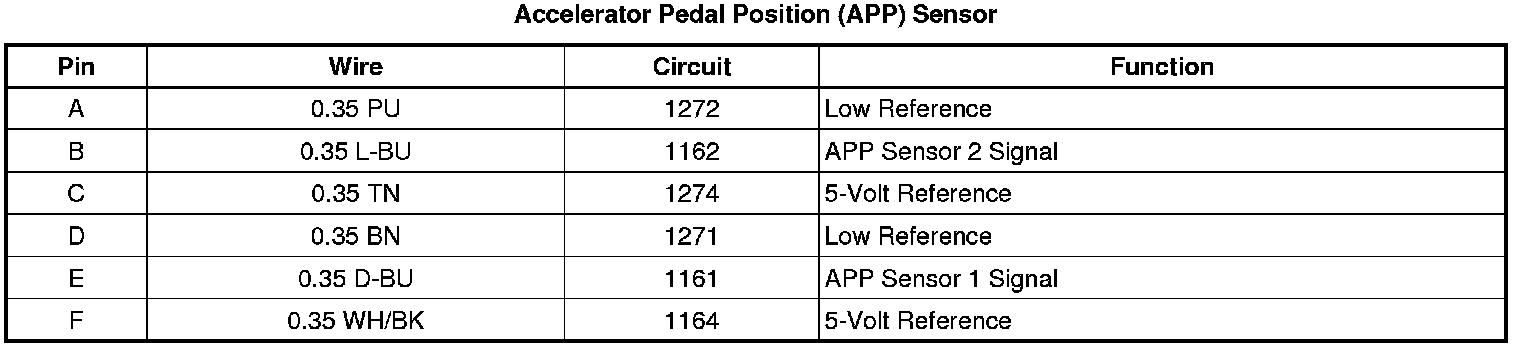

Accelerator Pedal Position (APP) Sensor
