Data Link Resistor

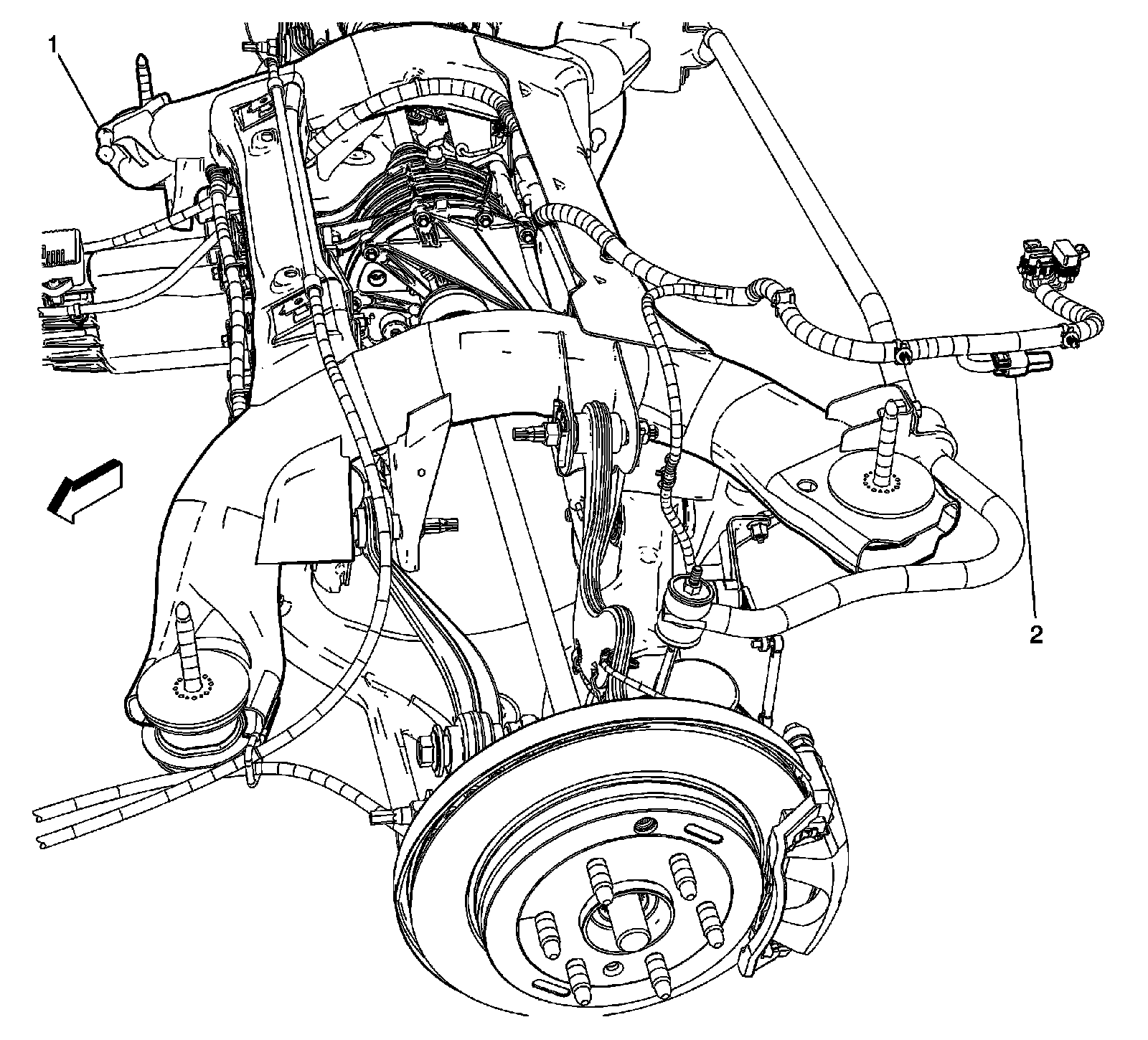

Wheels/Vehicle Underbody Component Views

Near the Rear Differential (without MH6)

1 - Rear Suspension Frame

2 - Data Link Resistor
