Variable Induction Control Valve
Variable Induction Control Valve

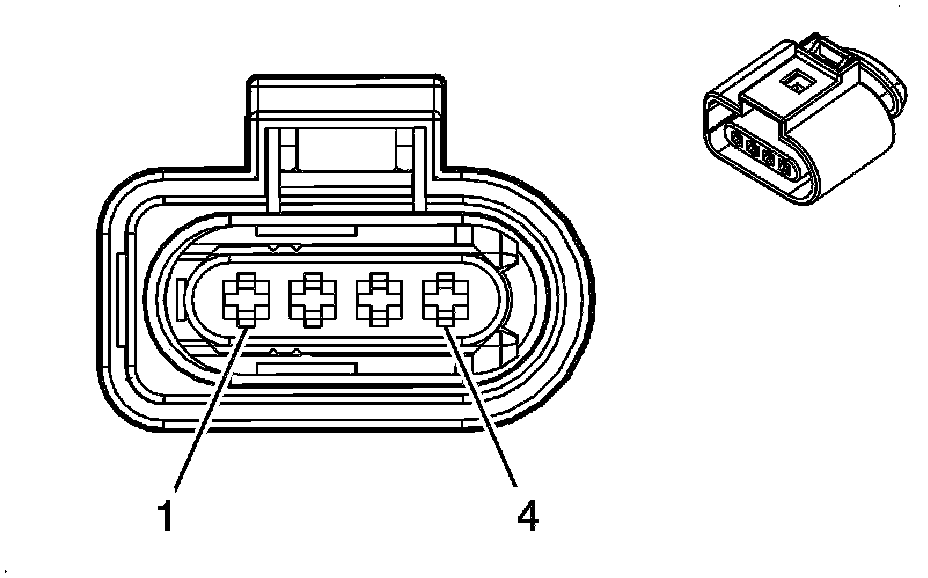

Component Connector End Views

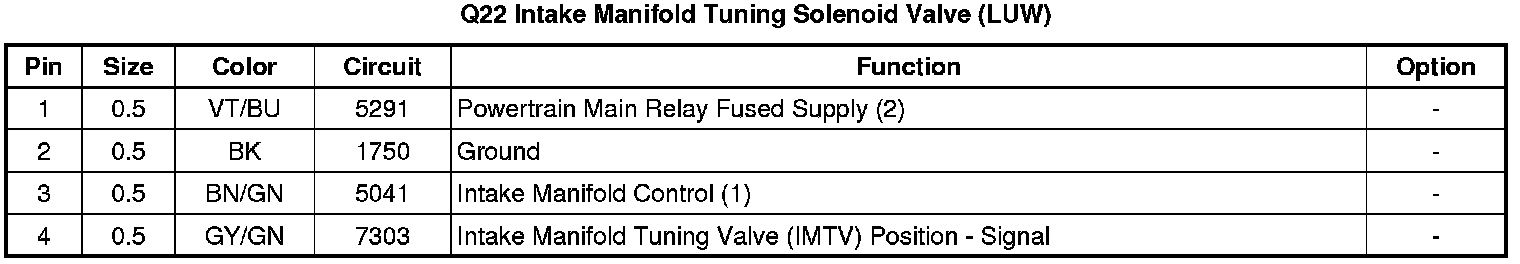

Q22 Intake Manifold Tuning Solenoid Valve (LUW)
