Sunroof / Moonroof Module
Sunroof / Moonroof Module

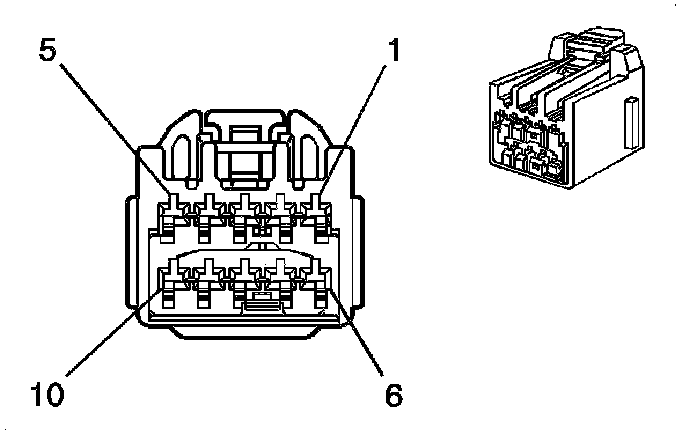

Component Connector End Views

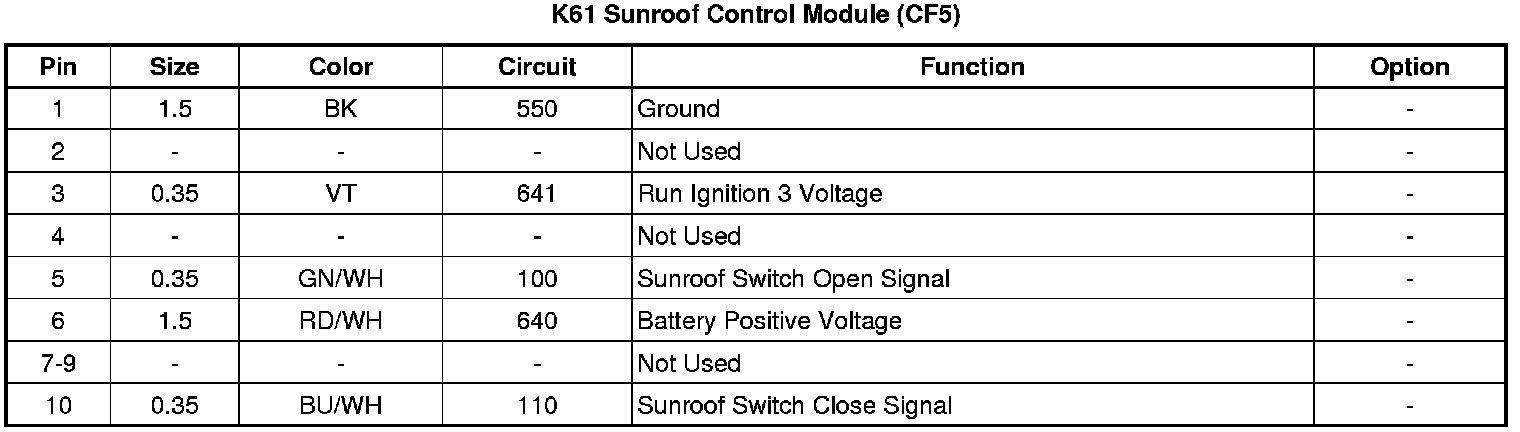

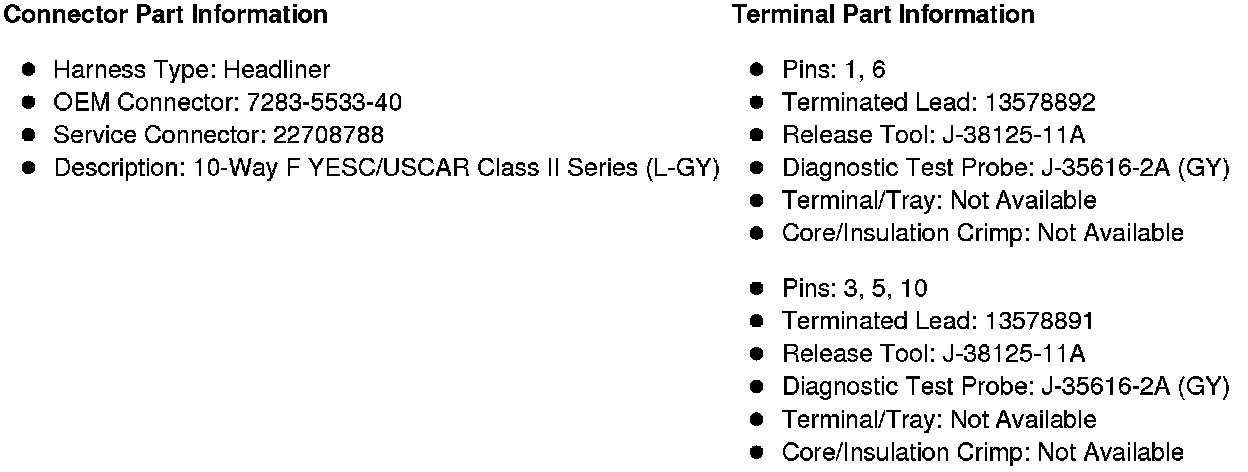

K61 Sunroof Control Module (CF5)
