Home >> Chevrolet >> 2012 >> Sonic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module X2

Power Steering Control Module X2

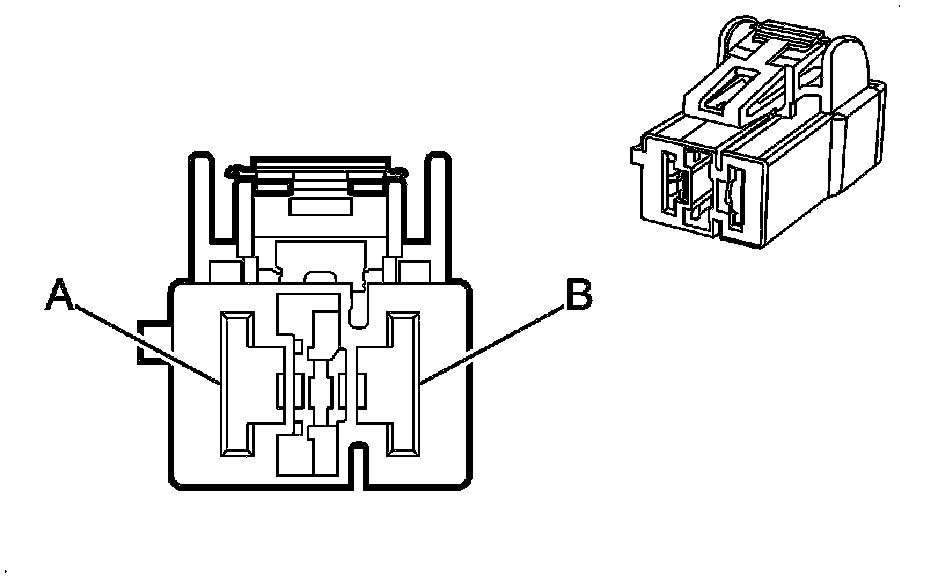

Component Connector End Views

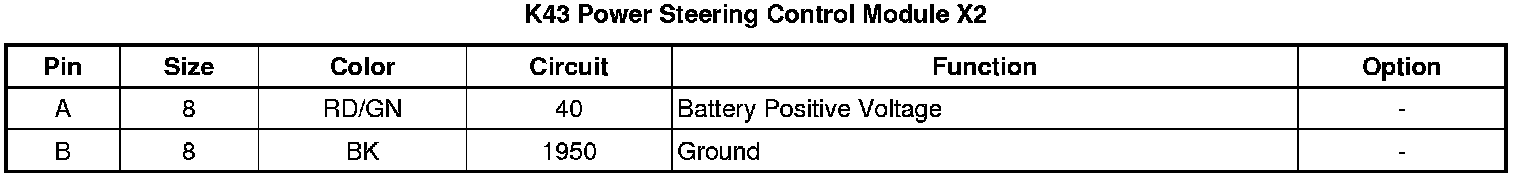

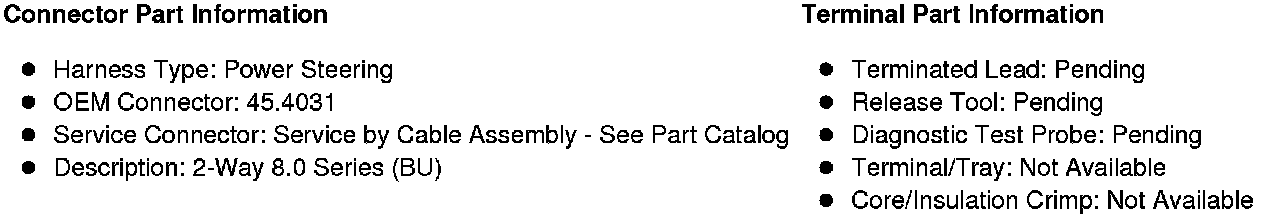

K43 Power Steering Control Module X2
