lemon-mirror
:
Home
>>
Chevrolet
>>
2012
>>
Sonic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Console
Console

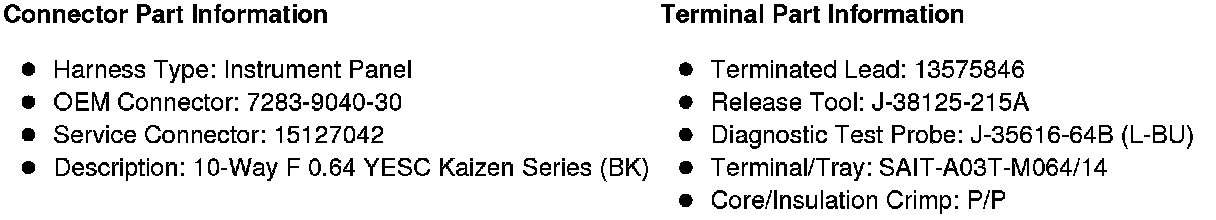

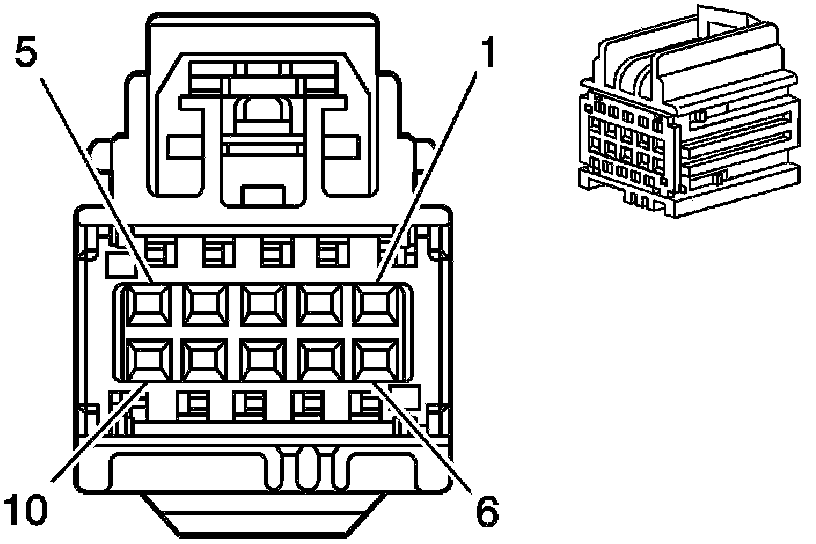

Component Connector End Views

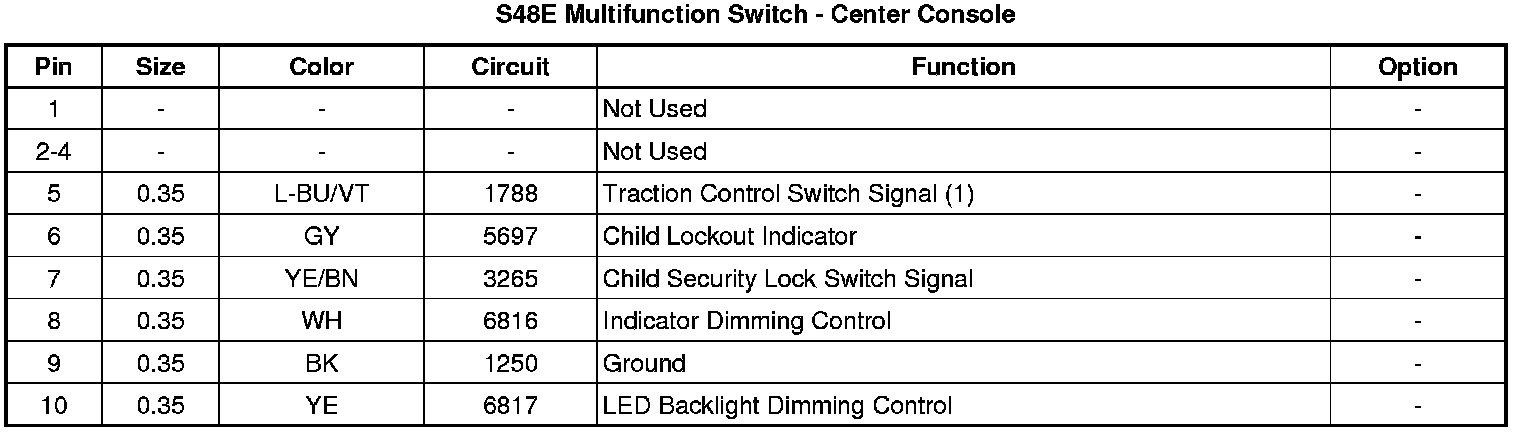

S48E Multifunction Switch - Center Console
